Hardware and Connections
2-22 7SA6 Manual
C53000-G1176-C133-1
View of Front Panel
with Four-Line
Display
(Housing Size
1
/
3
)

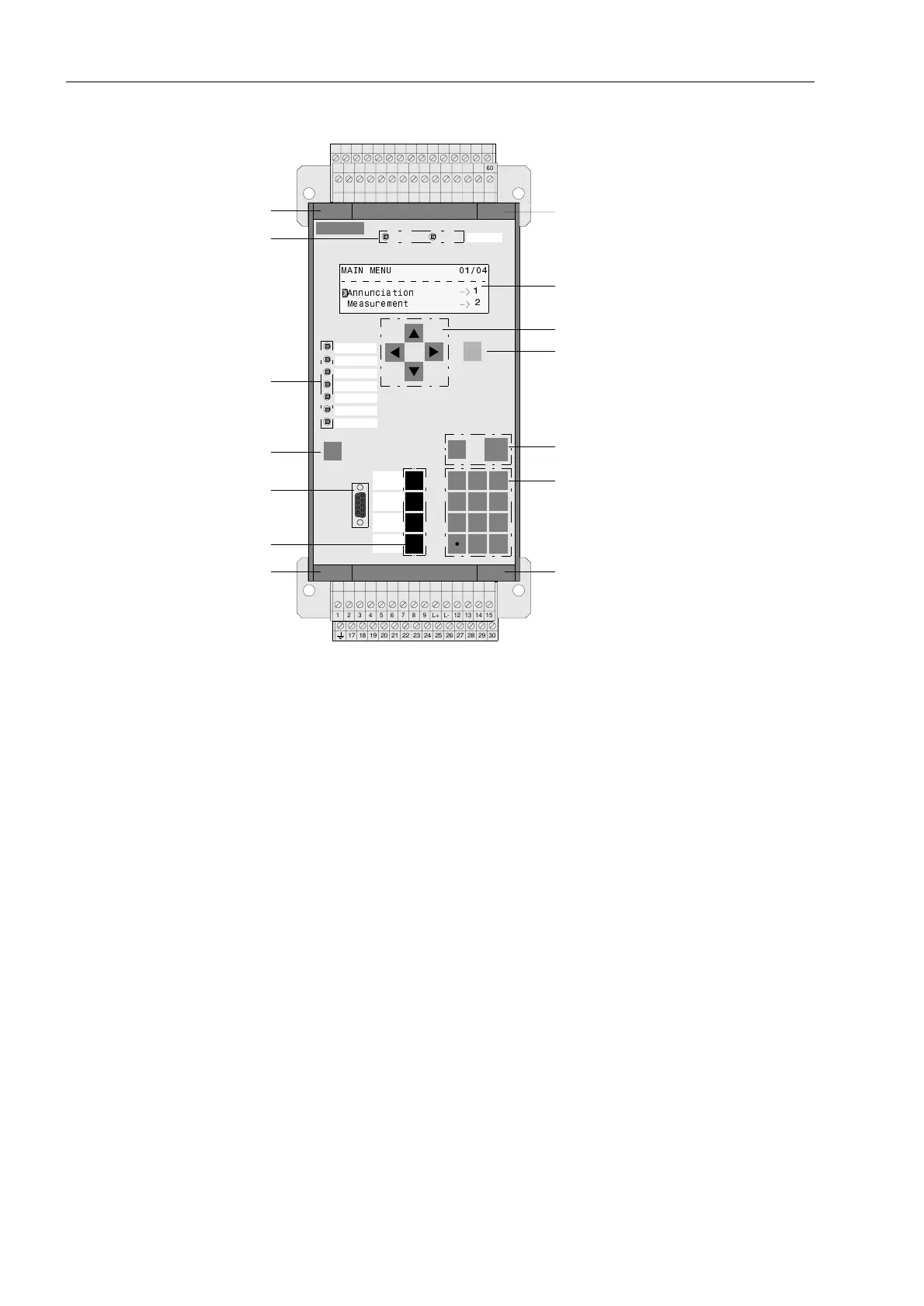

Figure 2-21 Front view of a 7SA61, housing size
1
/
3
, for panel surface mounting without
optical communication interfaces
Referring to the operating and display elements in Figure 2-21:
1. Display (LCD)
The LCD shows processing and device information as text in various lists. Com-
monly displayed information includes measured values, counter values, binary in-
formation regarding the condition of circuit breakers, status of the device, protec-
tion information, general reports, and alarms.
2. Navigation keys
These keys serve for navigation through operating menus.
3. MENU key
This key activates the main menu.
4. ESC and ENTER keys
These keys serve to escape from specific menues or execute changes (such as
setting changes).
5. Numerical keys
These keys serve for entry of numerical values, such as limit value settings.
6. Function keys
Four function keys allow the quick and simple execution of frequently used ac-
tions. Typical applications include, for example, jumping to a particular position in
the menu tree such as the fault data in the Trip Log or the measured values. The
SIEMENS
SIPROTEC
1 2
6
3
+/-0
54
7 8 9
7SA610
RUN ERROR
MENU
ESC
LED
ENTER
F4
F1
F2
F3
0$,10(18
$QQXQFLDWLRQ
0HDVXUHPHQW
1 23456 12789L+L- 131415
17 18 19 20 21 2722 23 24 25 26 28 29 30
60595857565549 5453525150484746
444342414034 3938373635333231 45
11)
11)
11)
11)
1)
2)
4)
5)
3)
6)
7)
8)
9)
10)
Annunciation
Meas. Val.
Trip log
To Next Page
