3.2.3 Display and key pad
Display DAC UNIVERSAL ADVANCED
With the DAC UNIVERSAL ADVANCED a new appearance has been
introduced see „Display and keyboard DAC UNIVERSAL ADVANCED
[ → 29]“.
Display DAC UNIVERSAL STANDARD
For an overview of the DAC UNIVERSAL STANDARD see „Display and
keyboard DAC UNIVERSAL STANDARD [ → 30]“.
3.2.3.1
Display and keyboard DAC UNIVERSAL ADVANCED

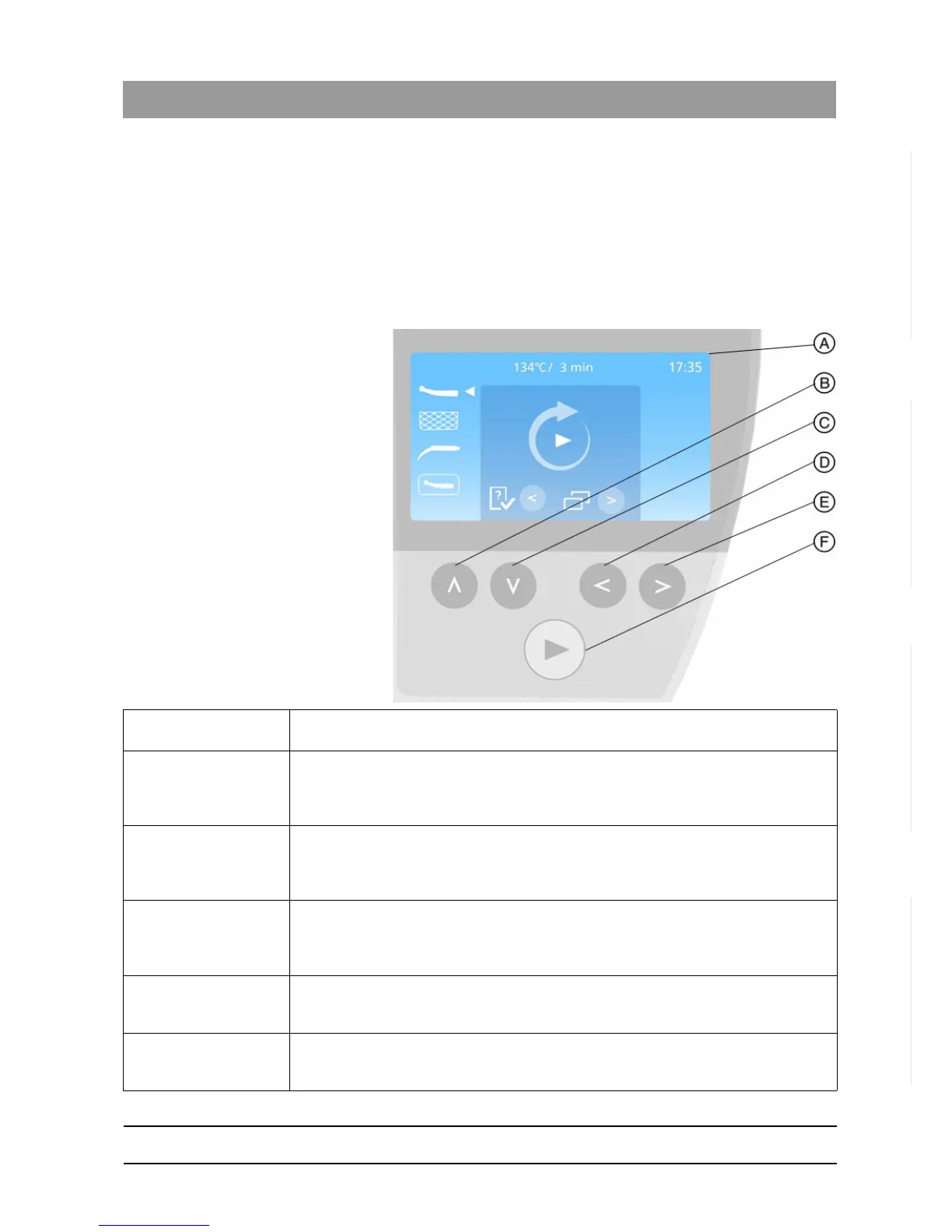

A: Display In the standby state the DAC UNIVERSAL shows the ready screen. During the execution
of a program the display will show the current progress.
B: "Up"-Key This key is used to select the lid type or navigate through the menu system.
Pressing this will result in selecting the upward option from the current state of the menu
system. Hereby returning to an upper level of the menu, confirming a selection or
selecting another lid on the ready screen.
C: "Down"-Key This key is used to select the lid type or navigate through the menu system.
Pressing this will result in selecting the downward option from the current state of the
menu system. Hereby reaching a lower level of the menu, confirming a selection or
selecting another lid on the ready screen.
D: "Left"-Key Pressing this will result in switching to the left option from the current state of the menu
system.
If pressed from the ready screen, the display will enter the part of the menu system
needed for the Check & Clean maintenance.
E: "Right"-Key This key is used to navigate through different selections in the menu system. Pressing
this will result in switching to the right option from the current state of the menu system.
If pressed from the ready screen, the display will enter the menu system.
F: "Start/Stop"-Key This key is only active when the autoclave is displaying the ready screen. Pressing this
key will start the chosen program. If the autoclave is currently running, pressing this key
will stop the current program.
