Sirona DAC UNIVERSAL - Mounting adapters

60 53 362 D3472
D3472.201.10.20.02 07.2016
53
Sirona Dental A/S 4Installation
Operating Instructions DAC UNIVERSAL 4.3Using the lubrication concentrate
båÖäáëÜ
4.3
Using the lubrication concentrate
The NitramOil #2 bottle is not yet mounted when the unit is delivered. The
bottle must be mounted and oil pumped through the hoses before the first
use of the DAC UNIVERSAL.
For further information how to mount a oil bottle, see “Adding/replacing
the lubrication concentrate [ → 66]“.
4.4
Mounting adapters
General mounting adapters_all lids
Up to 6 instruments can be reprocessed simultaneously in the DAC
UNIVERSAL. The instruments are connected to the STANDARD lid or
the FLEX lid using adapters. These adapters are not yet mounted when
the unit is delivered.
See "Adapters for the STANDARD lid [ → 219]" for an overview of all
adapters available for the STANDARD lid.
Link Overv iew FLEX lid
See "Adapters for the FLEX lid [ → 238]" for an overview of all adapters
available for the FLEX lid.

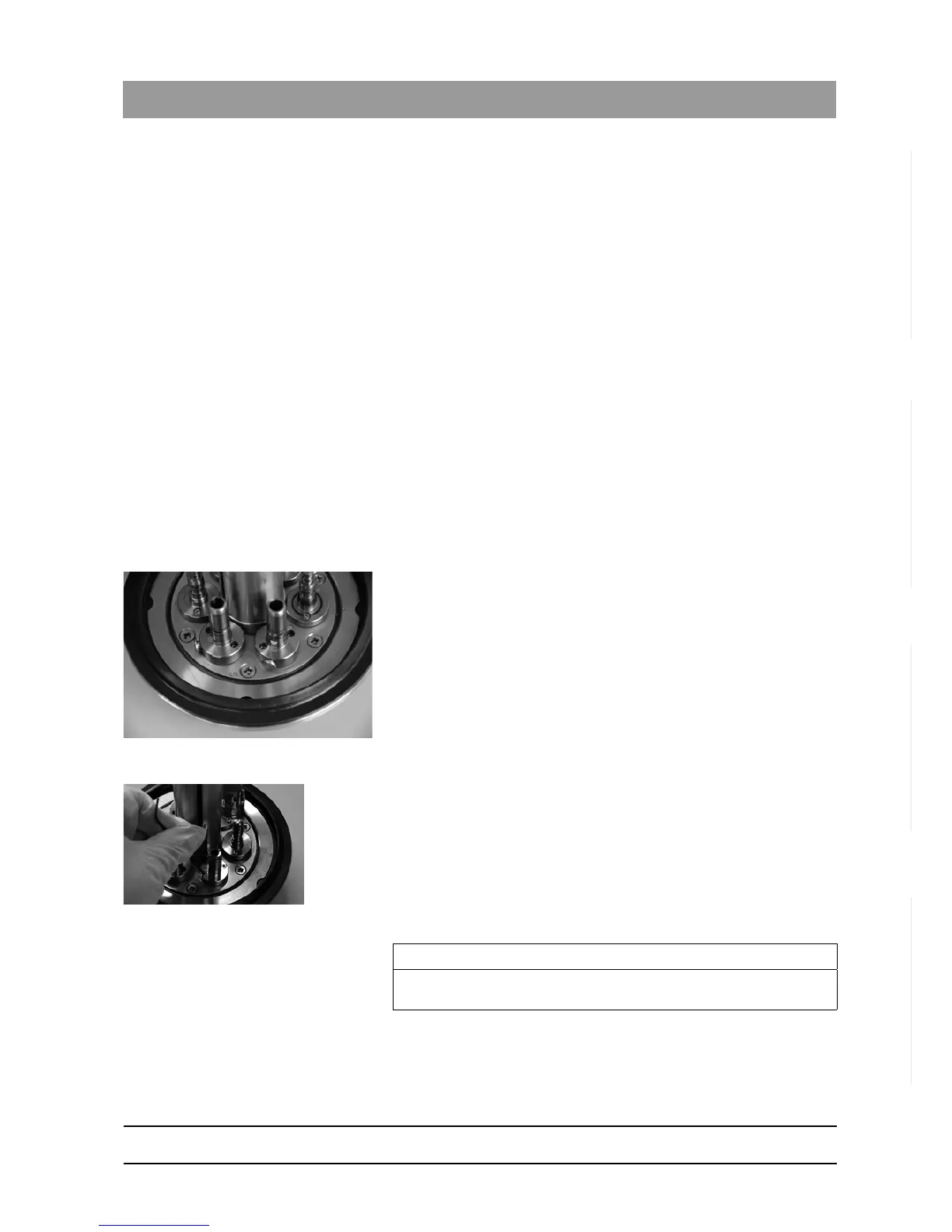

4.4.1 Mounting adapters on the STANDARD lid
Maximum length of the instruments
The six adapter positions on the STANDARD lid are each marked with
dots that correspond with the adapter position number.
The maximum length at position 1 is 145 mm / 5.70 inches (total length of
instrument and adapter).
The maximum length at the other positions (2-6) is 160 mm / 6.30 inches
(total length of instrument and adapter).
Fastening the adapter to the STANDARD lid
✔ The STANDARD lid and the 6 adapters are available.
1. Place the gasket on the STANDARD lid so the gasket matches the
screw holes.
2. The flat side of the adapter base is turned towards the center column
as shown. Fasten the adapter to the STANDARD lid with the two
screws supplied.
3. Tighten the screws with the 1.5 mm Allen wrench on the STANDARD
lid included with the DAC UNIVERSAL.
IMPORTANT
When mounting the adapters it is important that all O-rings, gaskets and
screws are new.
