Sirona DAC UNIVERSAL - Connecting the Siphon; Connecting the Waste Water Tank

60 53 362 D3472
52 D3472.201.10.20.02 07.2016
4Installation Sirona Dental A/S
4.2Installation of DAC UNIVERSAL connections Operating Instructions DAC UNIVERSAL
4.2.4.1

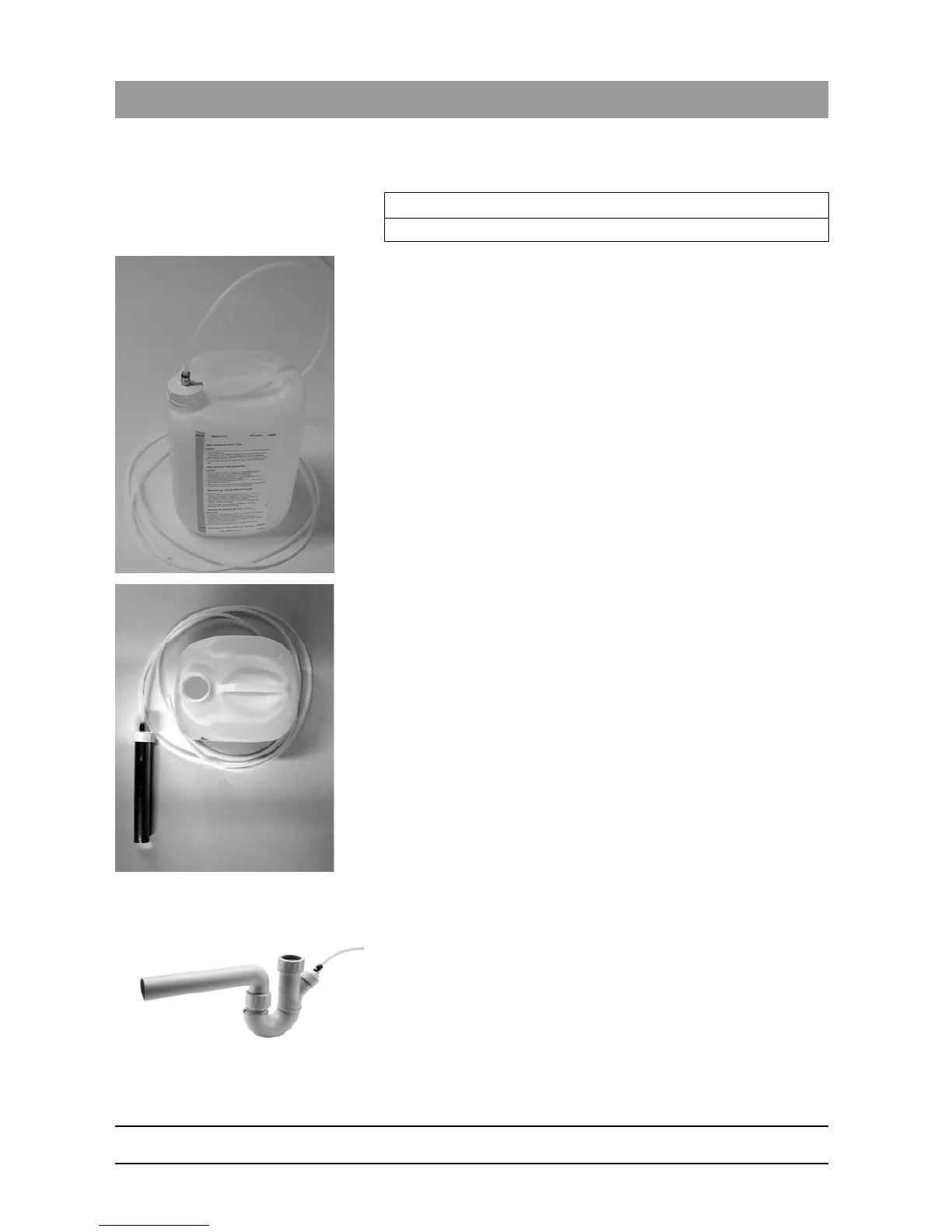

Connecting the waste water tank
If the DAC UNIVERSAL is not connected directly to the waste water drain,
a drain tank with the condensation tube must be installed to collect waste
water from the reprocessing process.
For this connection, a size 6/4 mm PTFE tube must be used. The PTFE
tube may be no more than 3 m long. A suitable tube is included with the
drain tank.
✔ You are wearing your protective gear.
✔ The PTFE tube is at hand.
1. Make sure that the drain system is clear and no counter pressure can
build up.
2. Empty and clean the drain tank once a week or when it is full (content
reaches the highest mark on the label).
4.2.4.2
Connecting the siphon
For connecting the drain connection with the syphon, a size 6/4 mm PTFE
tube must be used. The PTFE tube may be no more than 3 m long.
✔ Wear appropriate protective gear.
✔ The PTFE tube is at hand.
1. Make sure that the drain system is clear and no counter pressure can
build up.
2. The DAC UNIVERSAL can be connected directly to the waste water.
IMPORTANT
A drain tank other than the original one must not be used.
