Page 81 of 292

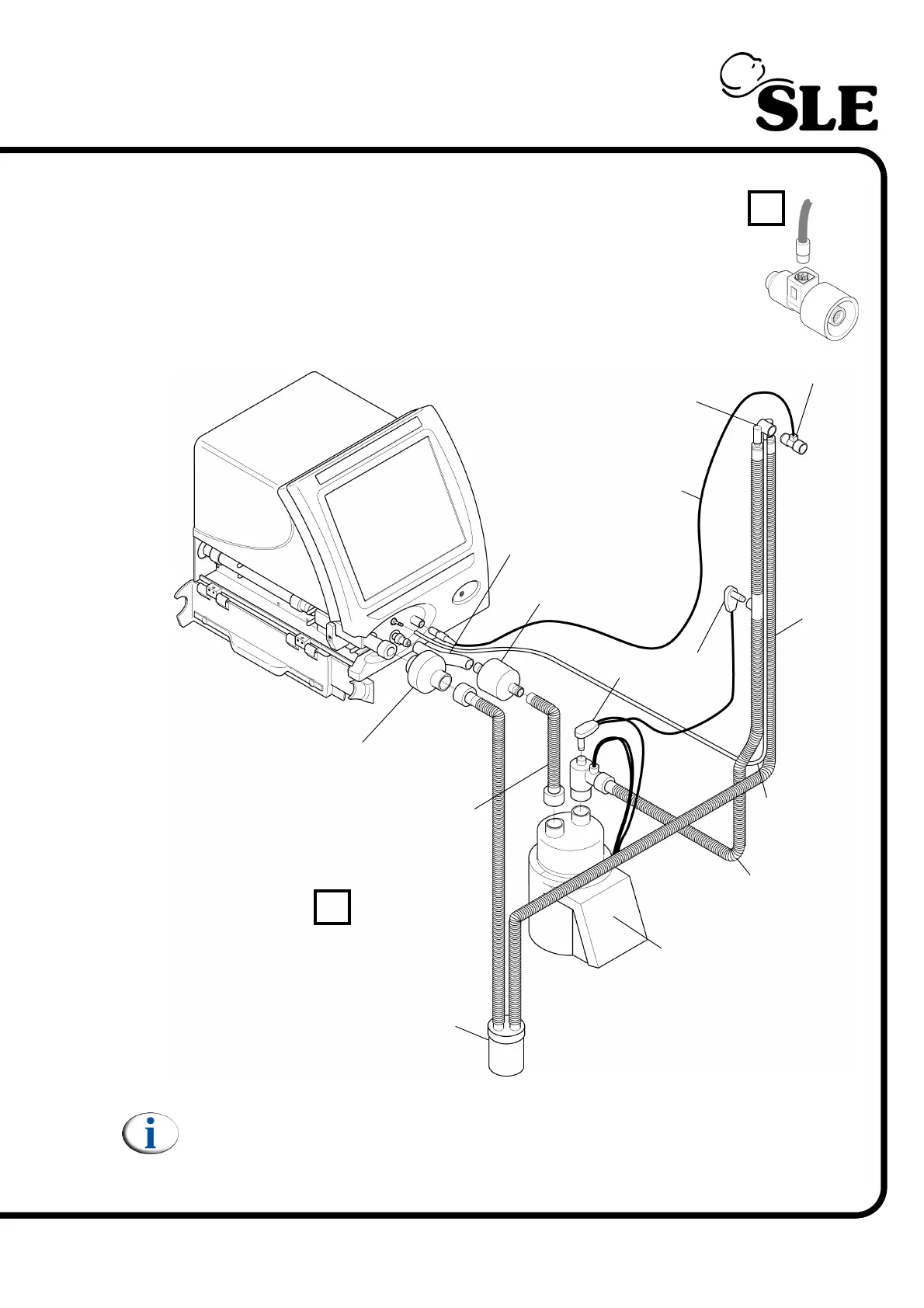

Step 6 Connect the Patient Circuit and Bacterial Filter to the Ventilator
Check that the flow sensor has been cleaned in accordance with
the manufactures instructions.
Connect the flow sensor cable to the sensor but do not fit it into
the patient circuit at this stage (E).
Connect the SLE approved patient circuit as shown in the diagram above (F).
Note: Patient circuit type and design may vary from the diagram
Fit the humidification chamber into the humidifier.
E
Bacterial Filter
(SLE Nº:N2187)
Bacterial Filter
(SLE Nº:N2029)
Flow sensor Cable
Flow Sensor
Humidifier
Inspiratory
Supply Line
Proximal Airway
Pressure Line
Connection Tubing
Temperature
Probes
Humidifier Supply Line
Water Trap
ET Manifold
F
Expiratory
Supply Line
To Next Page
