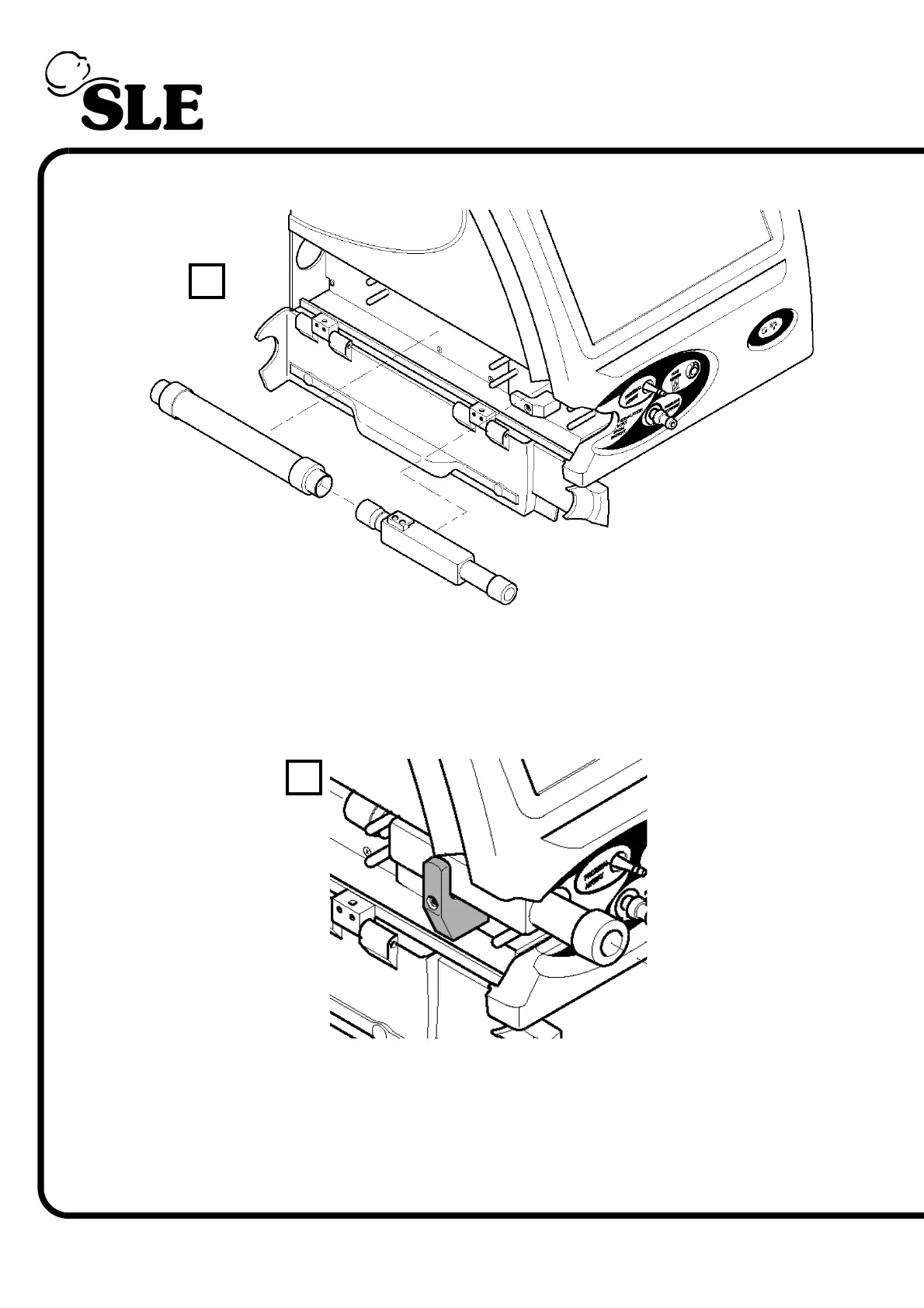

Step 5 Fit the Exhalation Block and Silencer to the Gas Manifolds

Connect the silencer to the exhalation block and then place the assembly onto

the gas mainfolds (C).

Lock the exhalation block by turning the clamp through 90 degrees until it is

vertical (D).

Close the side flap.
