HRX-OM-X037
Chapter 5 Display and Setting of Various Functions
5.4 Description of the Screen
HRL Series

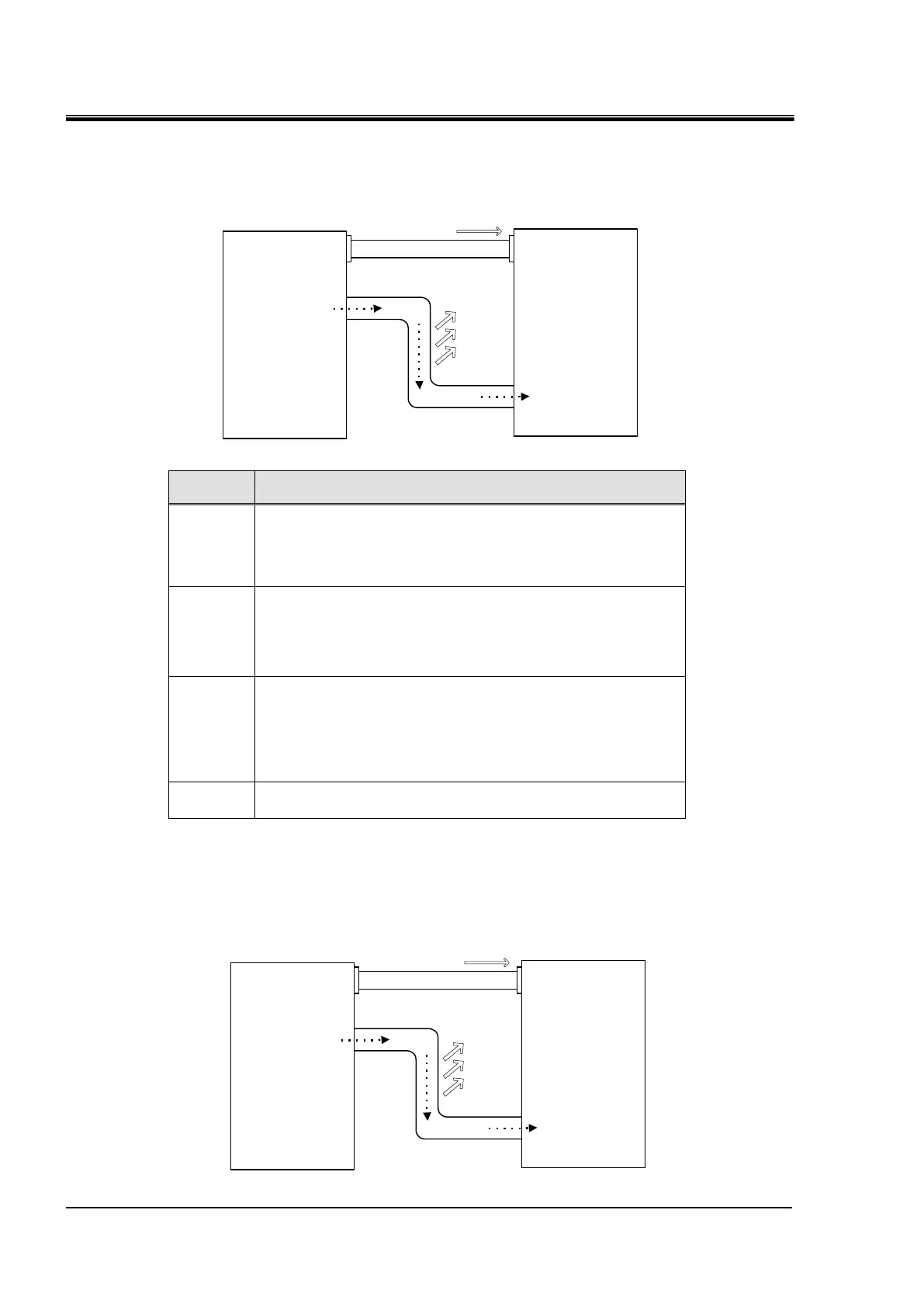

●Example of temperature offset
The discharge temperature of the circulating fluid is 30
o
C, but the fluid temperature in the
customer’s device is 29
o
C because of heat radiation during sending of the fluid.
Control the temperature so that the discharge temperature of
the circulating fluid is circulating fluid set temperature + offset
temperature. Circulating fluid temperature indicates the
circulating fluid discharge temperature.
Control the temperature so that the discharge temperature
of the circulating fluid is circulating fluid set temperature.
Circulating fluid temperature indicates the circulating fluid
discharge temperature + offset temperature.
Control the temperature so that the discharge temperature
of the circulating fluid is circulating fluid set temperature +
offset temperature. Circulating fluid temperature indicates
the circulating fluid discharge temperature - offset
temperature.
Control the temperature so that the discharge temperature of
the circulating fluid is circulating fluid temperature set value.
■Example of MODE 1
When the offset temperature is 1
o
C, the thermo-chiller controls the temperature at 31
o
C (circulating fluid
set temperature + offset temperature.) Even if the discharge temperature is 31
o
C, the circulating fluid
temperature is 30
o
C at the customer’s device because of 1
o
C of heat radiation during sending of the fluid.
Circualting fluid display temperature and communication data is 31
o
C.
Circulating fluid display
temperature
30℃
Circulating fluid set
temperature
30℃
This produuct Your system
Serial communication
Discharge
temperature 30℃
Heat
radiation
1℃
29℃
Circulating fluid
temperature 30℃
Circulating fluid display
temperature
31℃
Circulating fluid set
temperature
30℃
Offset temperature
1℃
This produuct Your system
Serial communication
Discharge
temperature 31℃
30℃
Circulating fluid
temperature 31℃
Heat
radiation
1℃
