Chapter 5 Display and Setting of Various Functions
5.4 Description of the Screen HRL Series
5-12
・Independent pump operation [Pump]
9. The pump operates independently while [ ] or [ ] button is pressed.
・Operation mode [MODE]
10. Display the current run mode.
Set the operation mode.
[ ]mode is set by default.
Operation mode can be selected from the following three modes:
• [ ] mode: The operation is performed by the touch panel.
• [ ]mode: The operation is performed by contact input signal.
(Refer to “5.4.10 Communication setting screen” for the setting of contact input signal.)
• [ ]mode: The operation is performed by the serial communication
RS-232C/RS-485.
(Refer to “5.4.10 Communication setting screen ” for serial communication.)
• [ ] mode: The operation is performed by the Ethernet Modbus/TCP
communication.
(Refer to “5.4.10 Communication setting screen ” for Modbus/TCP communication.)

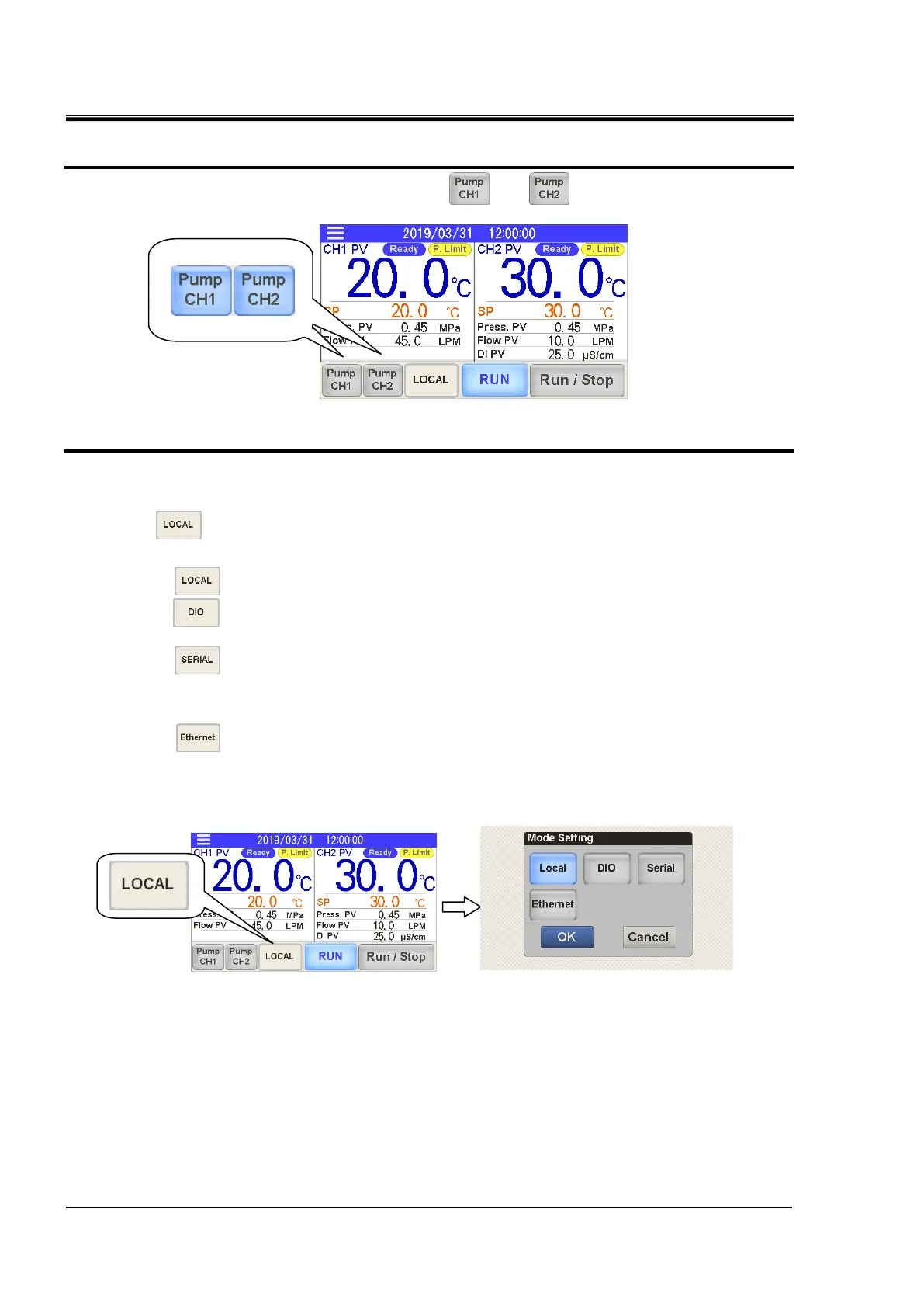

Independent pump operation
The pump operates
independently while the
button is pressed
Operation mode
Press
Operation mode selection screen
