HRX-OM-X037
Chapter 5 Display and Setting of Various Functions
5.4 Description of the Screen HRL Series
5-8
5.4 Description of the Screen

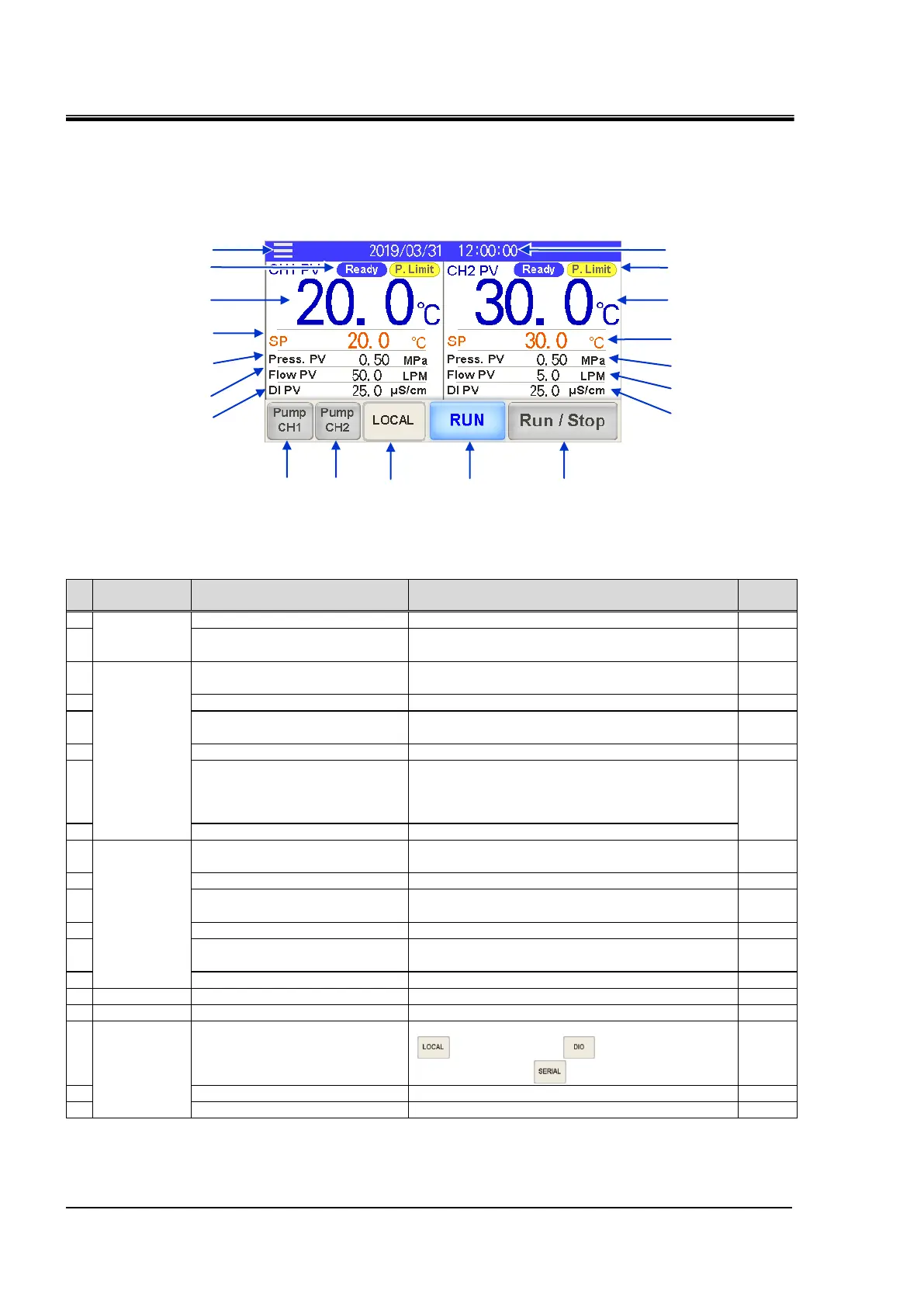

5.4.1 Home screen
Items displayed on the home screen and setting items are shown in
Table 5.4-1 List of check items in inspection monitor menu.
Table 5.4-1 List of check items in inspection monitor menu



































1 In the case of option D1 "CH1 with electrical conductivity control", it will display.
Home screen
(1)
(2)
(4)
(5)
(6)
(7)
(15)
(10)
(11)
(12)
(13)
(14)
(16)
(19)
(18)
(17)
(9)
(3)
(8)
No. CH number Item Explanation
Reference
page
(1) Menu key
Touch the key to display the menu.
P.5-9
Displays the date and time.
Press the numeric section to set the date and time.
Displays TEMP READY status.
Displays the control status of the circulating fluid temperature.
(4) Current circulating fluid temperature Displays the current temperature of circulating fluid. P.5-10
It indicates the set temperature.
Press the numeric section to change the set temperature.
(6) Circulating fluid discharge pressure It indicates the discharge pressure. P.5-11
It indicates the fluid flow rate. This value is not
measured by a flowmeter. It should be used as
a reference value (rough indication).
It includes the flow rate in the bypass circuit.
(8) Circulating fluid electrical conductivity It indicates the electrical conductivity. 1
Displays TEMP READY status.
Displays the control status of the circulating fluid pressure.
(10) Current circulating fluid temperature Displays the circulating fluid temperature. P.5-10
It indicates the set temperature.
Press the numeric section to change the set temperature.
(12) Circulating fluid discharge pressure It indicates the discharge pressure. P.5-11
It indicates the flow rate measured by a flowmeter.
It does not include the flow rate in the bypass circuit.
(14) Circulating fluid electrical conductivity It indicates the electrical conductivity. P.5-11
(15) CH1 Independent pump operation CH1 pump operates independently while the button is pressed. P.5-12
(16) CH2 Independent pump operation CH2 pump operates independently while the button is pressed. P.5-12
To select a operation mode from the touch panel
( mode), contact input ( mode)
or serial communication ( mode).
(18) Operating condition display It indicates the run and stop status of the product. P.5-12
(19) Run/Stop To run/stop the product. P.5-13
P.5-12
P.5-9
(11)
Circulating fluid set temperature
P.5-10
(13)
Circulating fluid flow rate
P.5-11
CH2
Operating condition display
(17)
Common
Operation mode
(9)
(5)
Circulating fluid set temperature
P.5-10
(7)
Circulating fluid flow rate
CH1
P.5-11
Date and time display
P.5-9
(3)
Operating condition display
P.5-9
Common
(2)
