9.4 Cooling Capacity HRL Series
9-12
9.4 Cooling Capacity
9.4.1 HRL100‐A‐40 CH1

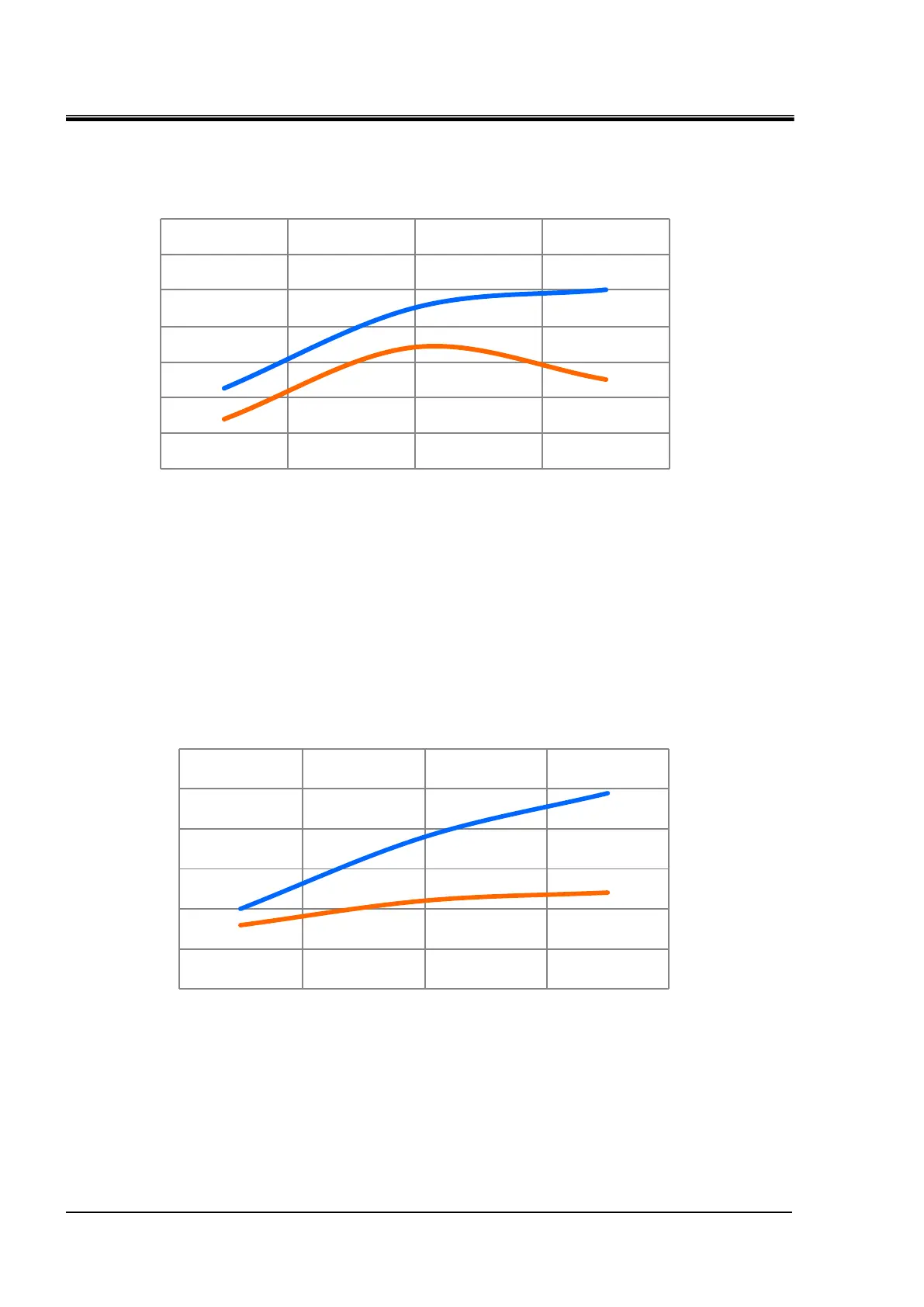

Fig. 9-7 Cooling Capacity (HRL100-A-40 CH1)
9.4.2 HRL200‐A‐40 CH1
Fig. 9-8 Cooling Capacity (HRL200-A-40 CH1)
0
5
10
15
20
25
30
0 10 20 30 40
Cooling capacity [kW]
Circulating fluid temperature [
o
C]
Ambienttemperature
32
o
C
45
o
C
This is the cooling capacity of the CH1 side when 1 Kw
heat load is applied to the CH2 side.
This is the cooling capacity of the CH1 side when 1 Kw
heat load is applied to the CH2 side.
0
2
4
6
8
10
12
14
0 10 20 30 40
Cooling capacity [kW]
Circulating fluid temperature [
o
C]
Ambienttemperature
32
o
C
45
o
C
