SMC Networks HRL100-A 40 Series

HRX-OM-X037
Chapter 2 Name and Function of Parts
HRL Series 2.2 Name and Function of Parts
2-3
2.2 Name and Function of Parts
2.2.1 HRL-A-40 (Air-cooled type)

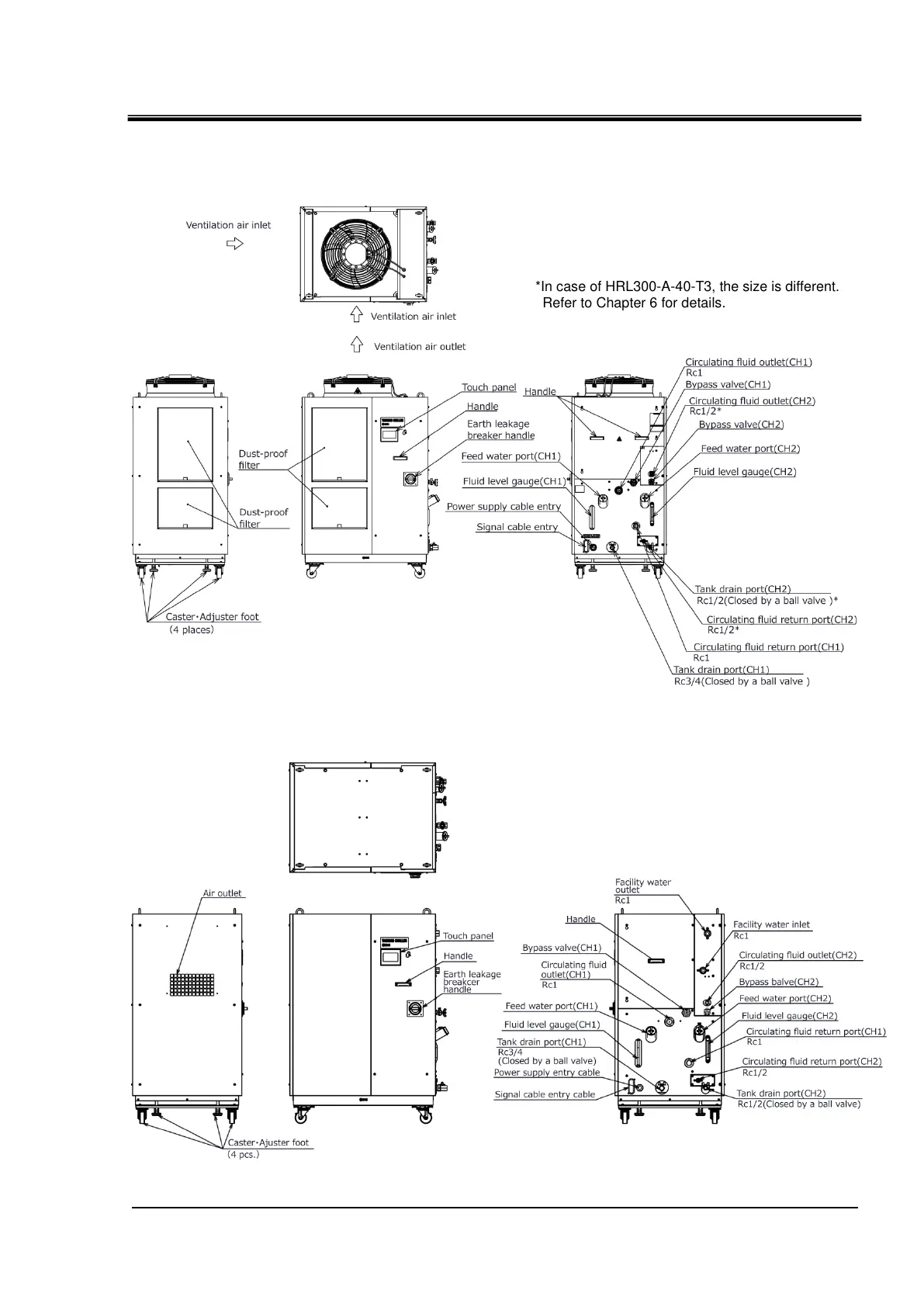

Fig. 2-2 Names of the parts (This drawing shows “HRL200-A-40”.)
2.2.1 HRL-W-40 (Water-cooled type)
Fig. 2-2 Names of the parts (This drawing shows “HRL100/200-W-40”.)
*In case of HRL300-A-40-T3, the size is different.
Refer to Chapter 6 for details.
