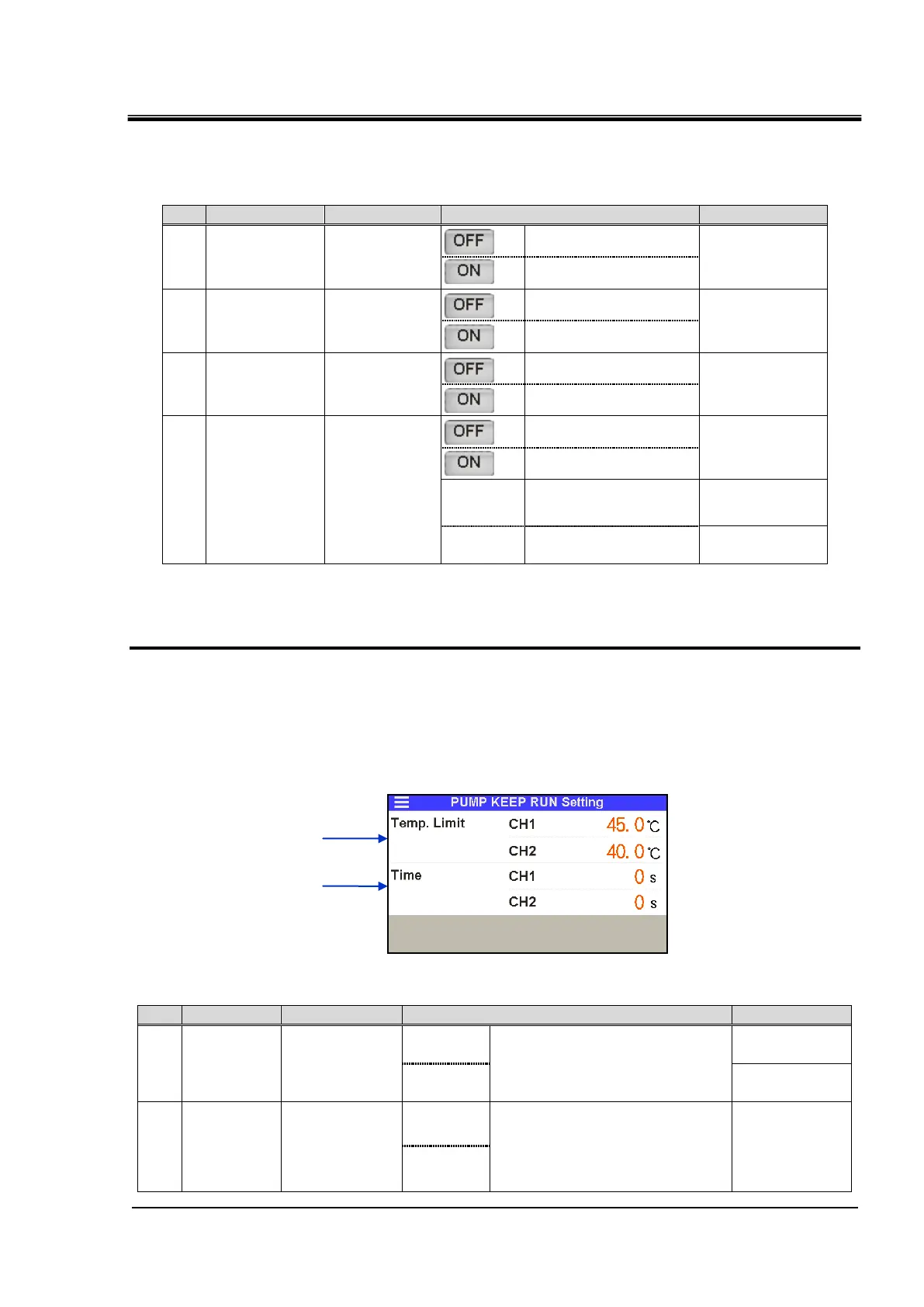

Chapter 5 Display and Setting of Various Functions
HRL Series 5.4 Description of the Screen
5-47
Table 5.4-16 Settings of key-lock, startup operation, anti-freezing and warming-up
No.
Indication
Item
Explanation
Setting range
(1)
KEY LOCK
Key-lock

Disabled
－
Enabled
(2)
START-UP
Startup
operation

Disabled
－
Enabled
(3)
ANTI-FREEZE
Anti-freezing

Disabled
－
Enabled
(4)
WARMING UP
Warming-up

Disabled
－
Enabled
CH1 SP
CH1 set temperature
5.0 to 35.0 ºC
5.0 ºC
CH2 SP
CH2 set temperature
10.0 to 40.0 ºC
10.0 ºC
By default
・Continuing pump operation
2. Continuing pump operation can be set.
Refer to ■ About continuous pump operation function (P.5–48) for this function.
This function is set to “Disabled” by default.
Following items can be set on“Continuous pump operation” setting screen:
・ Pump operation sustainable temperature
・ Pump operation sustainable time
Table 5.4-17 Settings for continuous pump operation
No.
Indication
Item
Explanation
Setting range
(1)
Temp. Limit
Pump
operation
sustainable
temperature
CH1
“Continuous pump operation”
ends when the temperature
reaches the set temperature.
5.0 to 50.0 ºC
45.0 ºC
CH2
10.0 to 45.0 ºC
40.0 ºC
(2)
Time
Pump
operation
sustainable
time
CH1
“Continuous pump operation”
ends when the set time has
elapsed.
Set time: 0 sec––this function is
“Disabled”
0 to 9999sec
0sec
CH2
Setting of KEY-LOCK, START-UP operation,
ANTI-FREEZING and WARMING-UP
Setting for continuous pump operation
(1)
(2)
