SMC Networks HRL100-A 40 Series User Manual

HRX-OM-X037
Chapter 5 Display and Setting of Various Functions
HRL Series 5.4 Description of the Screen
5-43

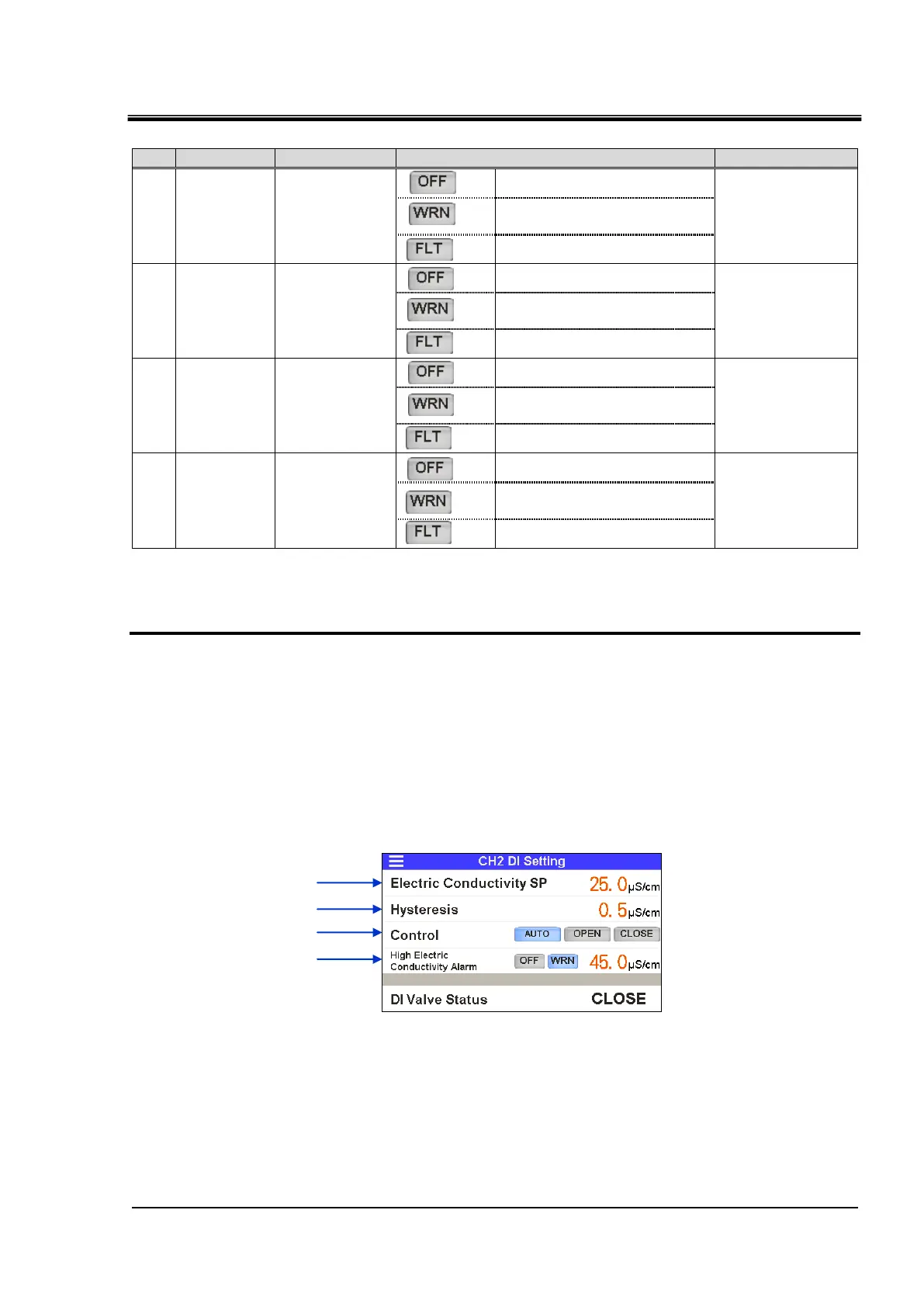

Table 5.4-14 Settings of AL21/AL23/AL24/AL26
No.
Indication
Item
Setting and selection
Setting range
(1)
High
Press.
AL23 : CH2
Circulating
fluid discharge
pressure rise
Disabled
0.03 to 0.50MPa
0.50MPa
Operation continues during
the alarm

Operation stops during alarm
(2)
Low
Press.
AL24 : CH2
Circulating
fluid discharge
pressure drop
Disabled
0.03 to 0.50MPa
0.03MPa
Operation continues during
the alarm

Operation stops during alarm
(3)
Press.
Sensor
Alarm
AL21 : CH2
Circulating
fluid discharge
pressure
sensor failure
Disabled
－
Operation continues during
the alarm

Operation stops during alarm
(4)
Flow
Sensor
Alarm
AL26 : CH2
circulating fluid
flow sensor
failure
Disabled
－
Operation continues during
the alarm

Operation stops during alarm
By default
・Electric conductivity and alarm setting (AL27)
6. Entering value settings for electrical conductivity of circulating fluid and hysteresis causes
circulating fluid to flow from the solenoid valve through to the DI filter to control the electrical
conductivity.
The following items can be set on “Electrical conductivity and alarm (AL27) setting” screen:
• Target electric conductivity value
• Electric conductivity hysteresis
• Setting of solenoid valve operation during the operation of the product:
“Control”/“Normally open”/“Normally closed”.
• “Enabling”/“Disabling” of “AL27: CH2 electric conductivity increase” alarm function
Electric conductivity and alarm (AL27) setting
(1)
(2)
(3)
(4)
