Chapter 5 Display and Setting of Various Functions
5.1 Basic Operation
HRL Series
5.1.2 Basic operating instructions

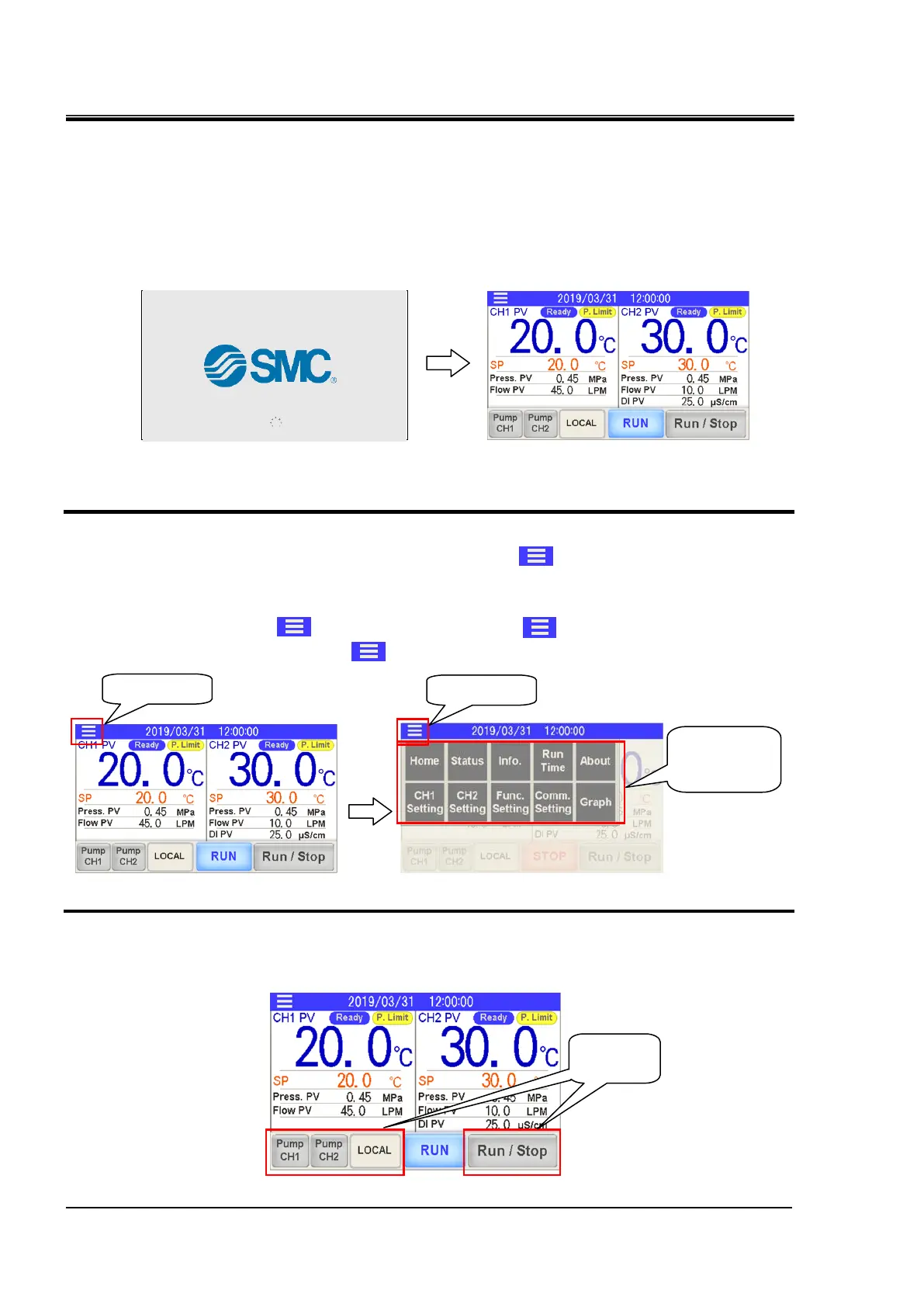

Basic operating instructions for the touch panel of the product are
described below.
1. After turning on the power, the startup screen appears on the display and changes to the
home screen.
2. Settings and screen display can be reviewed after the home screen changes to the
respective screen.The menu is displayed when [ ] (menu key) located upper left
on the screen is touched. Go to the respective screen from the menu to check the
settings and screen display content.
Essentially use [ ] key to change the screen. [ ] key is located on every screen.
The menu is closed when [ ] key is touched while the menu is displayed.
3.
Press a button for example to carry out “Run/Stop,” “Selection of function” or “Change the
screen.
Any button-shaped section on the screen can be pressed to operate it.
Buttons to
change the
screen
The “Menu” is closed when it is
pressed.
To Next Page
