HRL Series 9.4 Cooling Capacity
9-19
9.4.15 HRL200-W-40-T2 CH1

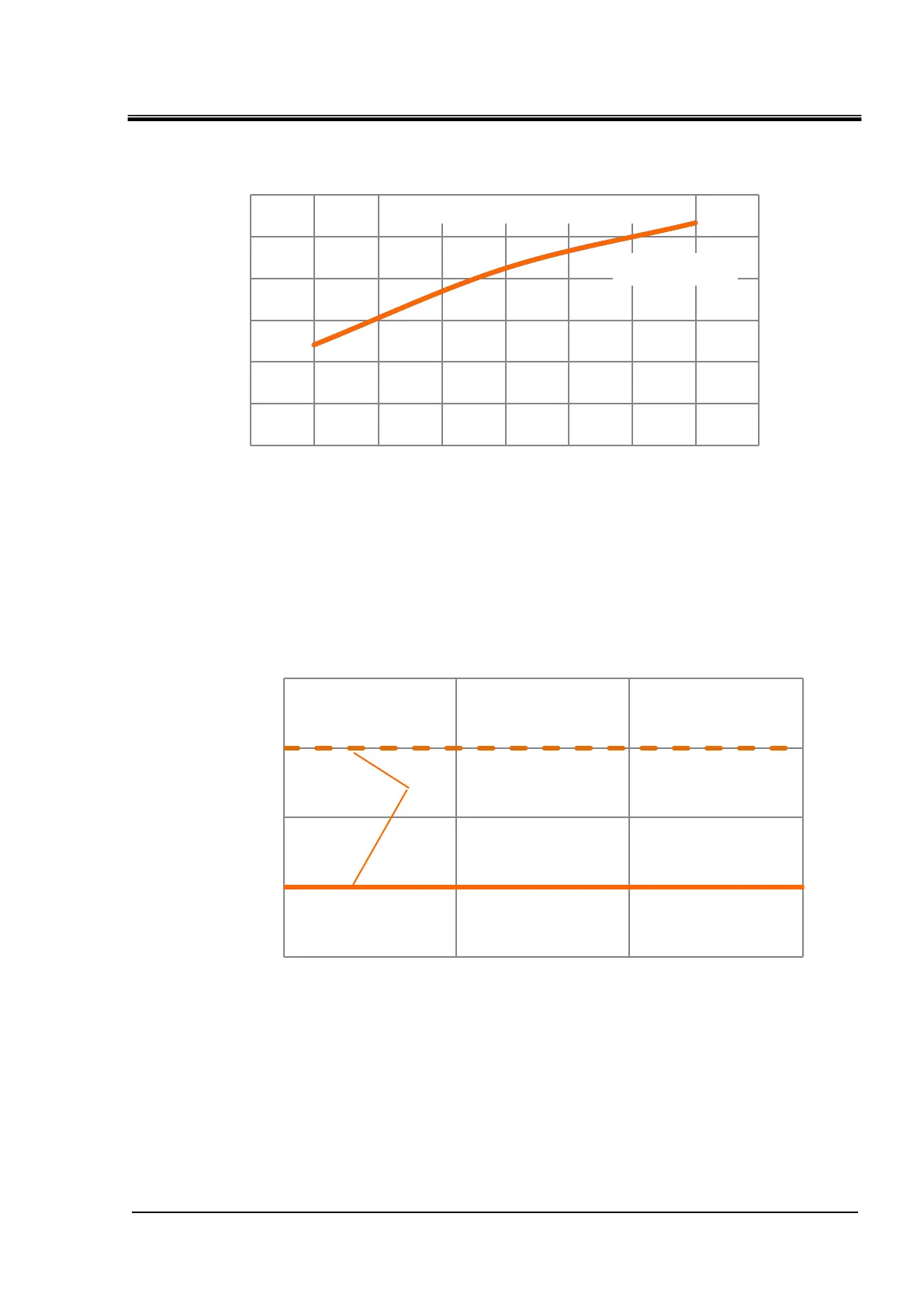

Fig. 9-21 Cooling Capacity (HRL200-W-40-T2 CH1)
9.4.16 HRL100/200-W-40-T2 CH2
Fig. 9-22 Cooling Capacity (HRL100/200-W-40-T2 CH2)
Up to 3.0kW.However,when 3.0kW heat load is applied,
the cooling capacity of CH1 will decrease by 2.0kW.
0
1
2
3
4
10 20 30 40
Cooling capacity [kW]
Circulating fluid temperature [
o
C]
Ambienttemperature 45
o
C or less
(Max. 3.0 kW)*2
Rated 1.0 kW
0
5
10
15
20
25
30
0 5 10 15 20 25 30 35 40
Cooling capacity [kW]
Circulating fluid temperature [
o
C]
Ambienttemperature
32
o
C, 35
o
C
