SMC Networks HRL100-A 40 Series User Manual

HRX-OM-X037
Chapter 5 Display and Setting of Various Functions
HRL Series 5.4 Description of the Screen
5-59

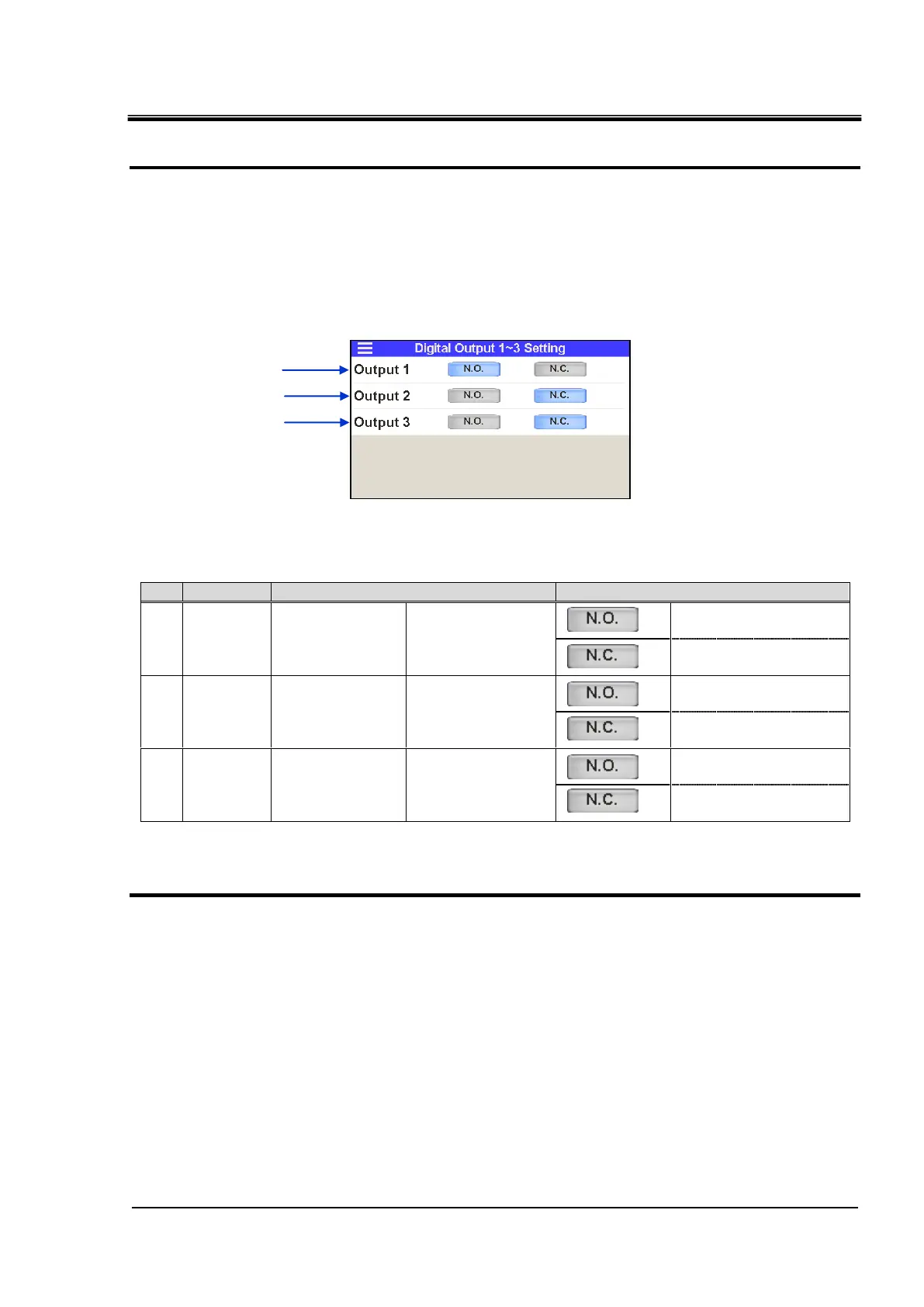

・Setting of contact output signal 1 to 3
5. Set contact output signal 1 to 3. Contact output signal is continuously output.
The signal type of contact output signal 1 to 3 is fixed. Contact output signal 4 to 6 can be used
to change the signal type. The contact type of the following contact output signals can be set:
･ Contact output signal 1 “Operation status” –– selects “N.O.” (A contact) or
“N.C.” (B contact).
･ Contact output signal 2 “FLT alarm” –––––––selects “N.O.” (A contact) or “N.C.” (B contact).
･ Contact output signal 3 “WRN alarm” ––––––selects “N.O.” (A contact) or “N.C.” (B contact).
Table 5.4-28 Setting of contact output signal 1 to 3
No.
Indication
Item
Setting and selection
(1)
Output 1
Contact output
signal 1
Operation status
signal

A contact
(normally open)
B contact
(normally closed)
(2)
Output 2
Contact output
signal 2
Operation stop
(FLT) alarm status
signal
A contact
(normally open)

B contact
(normally closed)
(3)
Output 3
Contact output
signal 3
Continuous
operation “WRN”
alarm status signal
A contact
(normally open)

B contact
(normally closed)
 By default
・Setting of contact output signal 4 to 6
6. Set contact output signal 4 to 6. Contact output signal is continuously output.
A “Signal type” for contact output signal 4 to 6 can be selected by the customer. Refer to
“5.4-30 Signal type for contact output signals 4 to 6.“
Select the “Contact type” and “Signal type” for contact output signals 4 to 6.
・ Contact output signal 4––selects “Signal type” and “N.O.” (A contact ) or “N.C.” (B contact).
・ Contact output signal 5––selects “Signal type” and “N.O.” (A contact ) or “N.C.” (B contact).
・ Contact output signal 6––selects “Signal type” and “N.O.” (A contact) or “N.C.” (B contact).
(1)
(2)
(3)
Setting of contact output signal 1 to 3
