・Alarm reset

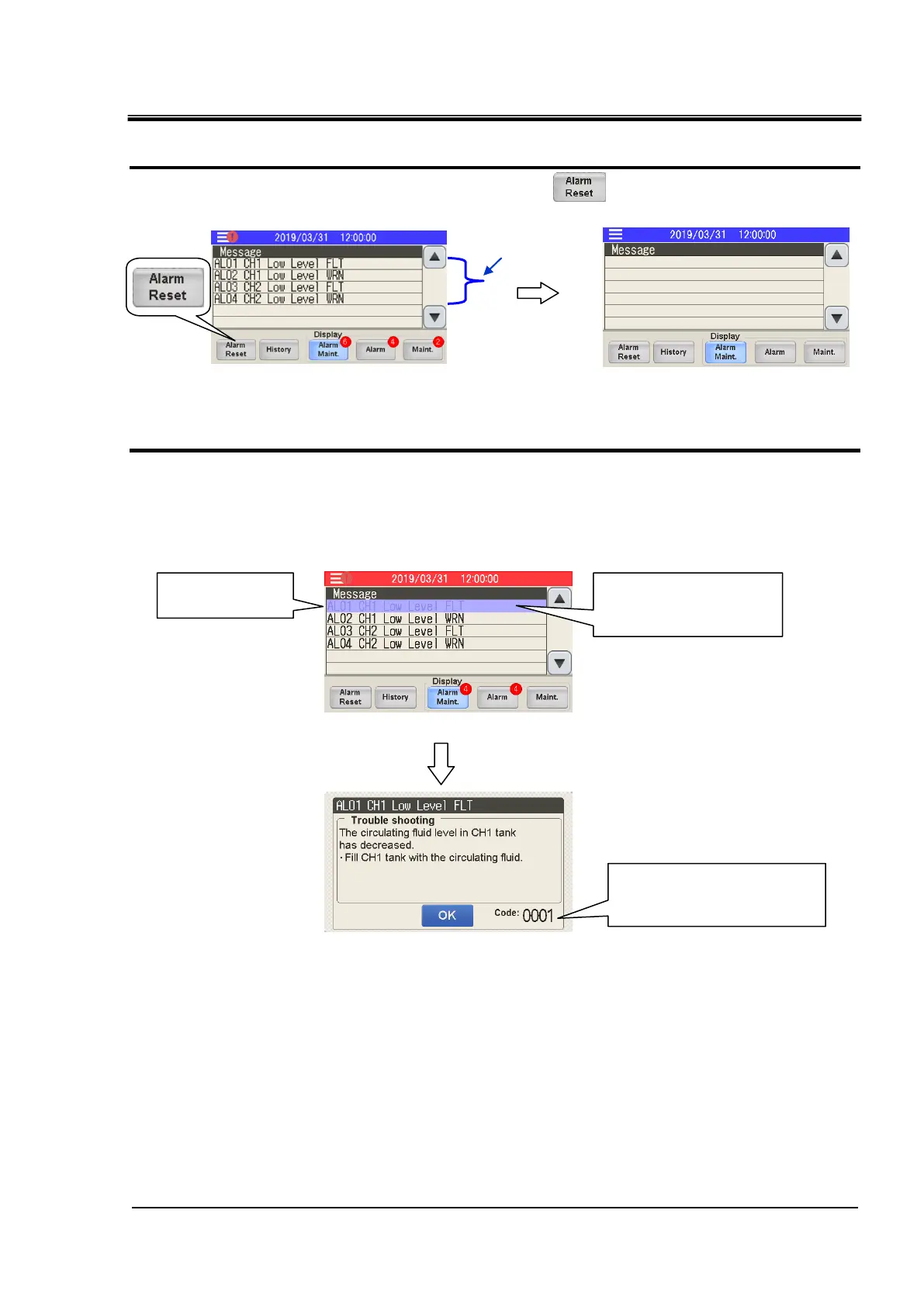

1. After eliminating the cause of the alarm, press [ ] button to cancel the alarm.
When the alarm is turned off, alarm names disappear from the “Information” screen.
・Alarm name
2. Touch the “Alarm” on the “Information” screen to display details of the alarm. Touching
alarm one time displays the alarm information. Touching alarm twice displays alarm
information details. If the alarm utilizes a sub-code, this is displayed in the alarm
information details.
Press
Alarm name
Information screen
Information screen
Information screen
Touch once
to select alarm
Touch twice
to go to alarm
information details
Alarm information details
If the alarm utilizes a
sub-code, that subcode is
displayed.
