SMC Networks HRL100-A 40 Series User Manual

HRX-OM-X037
Chapter 5 Display and Setting of Various Functions
HRL Series 5.4 Description of the Screen
5-41

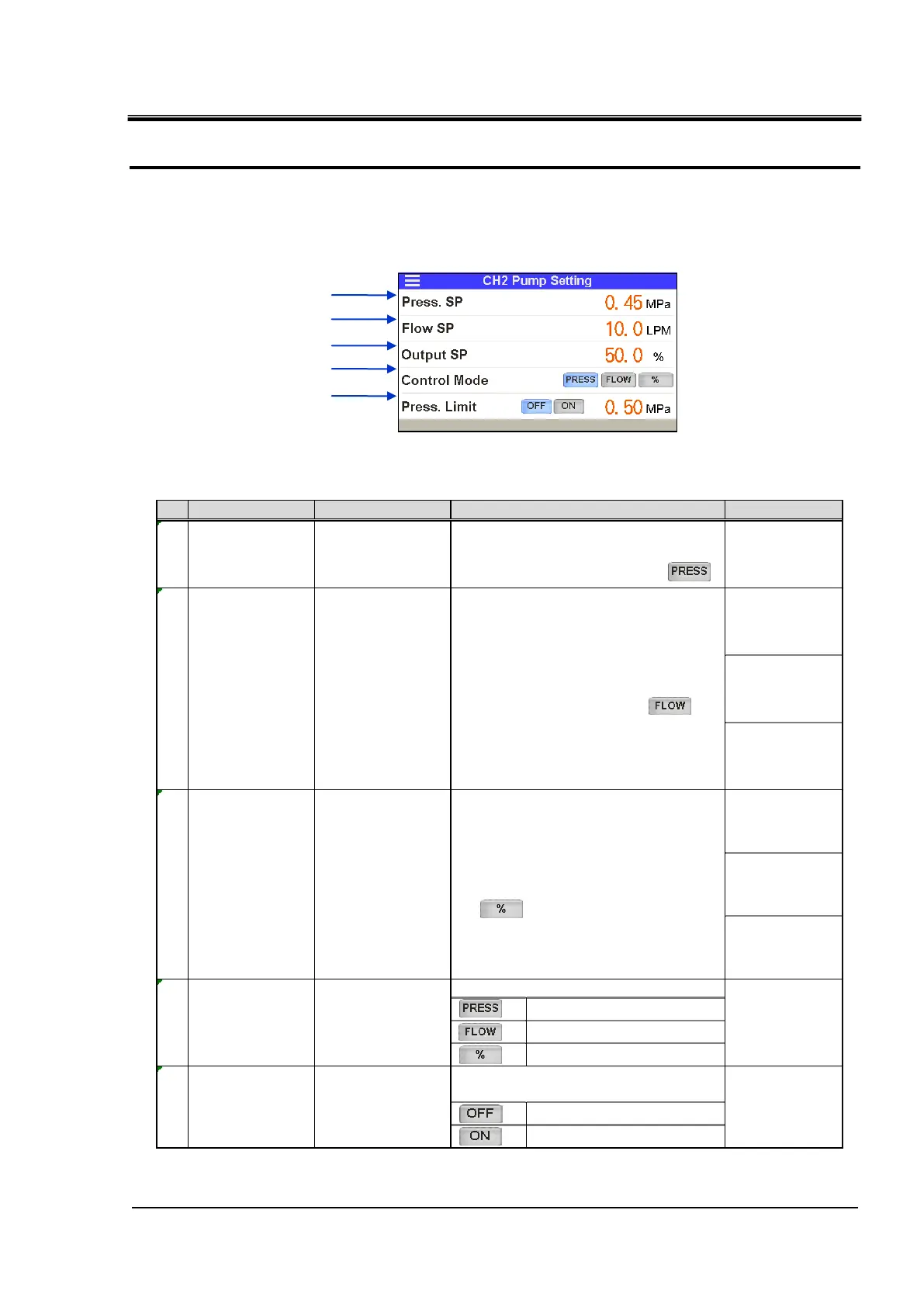

・Pump operation mode
4. Pump operation mode can be set up.
Setting method is the same as “CH1 pump operation mode.” Refer to “CH1 pump operation
mode” (P.5–32). Setting range and default settings are shown in Table 5.4-13
Pump operation mode setting.
Table 5.4-13 Pump operation mode setting
By default
Pump operation mode setting
(1)
(2)
(3)
(4)
(5)
No. Indication Item Setting range
2.0 to 10.0 LPM
*10.0LPM
[Option-T2]
5.0 to 30.0 LPM
*20.0LPM
[Option-T3]
10.0 to 60.0 LPM
*40.0LPM
45.0 to 100.0%
*45.0%
[Option-T2]
50.0 to 100.0%
*50.0%
[Option-T3]
65.0 to 100.0%
*65.0%
* Pressure control mode
Flow rate control mode
Set output mode
* Function disabled
Function enabled
0.10 to 0.49 MPa
*0.45MPa
Explanation
(1)
Press.SP
Set the pressure in
the while in pressure
control mode
(4) The pump operation is controlled to
maintain the set pressure when “ control
mode” (operation mode) is set to “ ”.
(2)
Flow SP
Set flow rate in the
flow rate control
mode
(4) The pump operation is controlled to
maintain the set flow rate when “ control
mode” (operation mode) is set “ ”.
(3)
Output SP
Set the output in the
output setting mode
(4) The pump operation is controlled to
maintain the set output (rotation) when
“control mode” (operation mode) is set
to “ ”.
(5)
PressLimit
Pressure setting for
pressure control
function
Selects enabling/disabling of the pressure
control.
0.10 to 0.50 MPa
*0.50MPa
(4)
Control Mode
Selection of pump
operation mode
Selects the pump operation mode
-
