HRX-OM-X037
Chapter 9 Documents
9.3 Flow Diagram HRL Series
9-10
9.3 Flow Diagram
9.3.1 HRL-A-40-

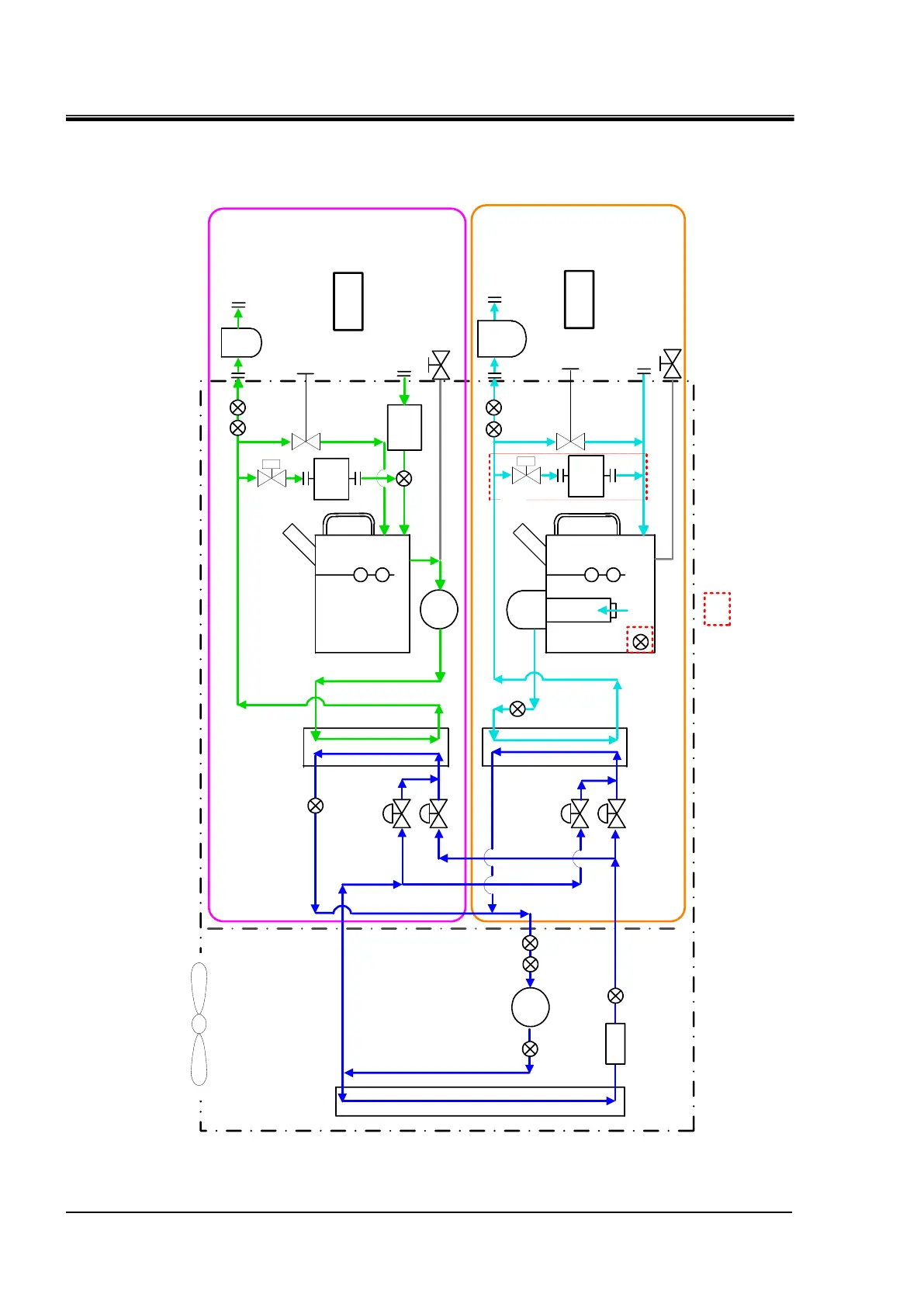

Fig. 9-5 Flow Diagram (HRL-A-40)
Compress
or
DI
filter
Pump
Particle
filter
Flow
meter
Air-cooled
condenser
Expansion
valveA
Expansion
valveB
Temp.
sensor
Temp.
sensor
Refrigerant
filter
Press.
sensor
Press.
sensor
Level
switch
Drain port
Temp.
sensor
Press. sensor
Temp. sensor
Bypass
valve
Solenoid
valve
DI sensor
CH 1
CH 2
Heat
exchanger
Bypass
valve
Drain port
Level
switch
Pump
Temp.
sensor
Expansion
valveB
Expansion valveA
Heat
exchanger
Press. sensor
Temp.
sensor
Particle
filter
Circulating
fluid outlet
Circulating fluid
return port
Circulating
fluid outlet
Circulating fluid
return port
Fan
DI
filter
Solenoid
valve
DI
sensor
Option D1 "CH1 with electrical conductivity control"
