Chapter 5 Display and Setting of Various Functions
5.4 Description of the Screen HRL Series
5-64
・Ethernet Modbus / TCP communication settings
7. Set the Ethernet.
The following operations can be performed by the Ethernet Modbus/TCP communication:
・ To run/stop the product
・ To change the set value of circulating fluid temperature
・ To readout the circulating fluid temperature, pressure, flow rate and electrical
conductivity (CH2)
・ To readout the status of respective parts of the product (e.g., operation status and
content of alarm)
・ To readout the model and serial number of the product.
This section describes the operation of the Ethernet Modbus/TCP communication” screen.
Refer to “Communication Function” of Operation Manual for details.

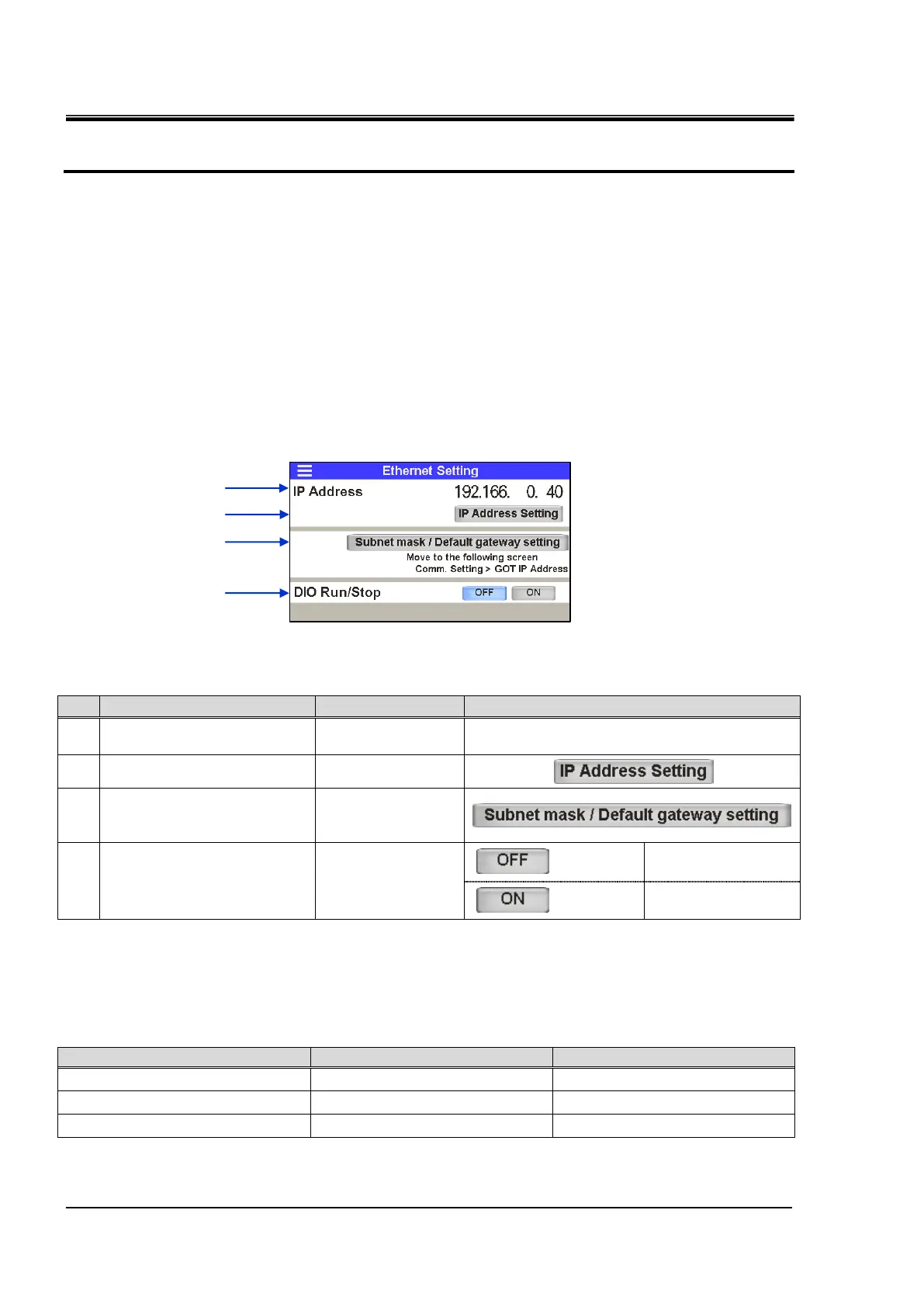

Ethernet communication setting screen
Table 5.4-33 Setting of ethernet communication
1By default.
2 “Run/stop” operation of the product is carried out by the contact input signal, and by
reading/writing the “Change in set value of circulating fluid temperature” and “Operation status”
by Ethernet Modbus/TCP communication.
Table 5.4-34 Ethernet Modbus/TCP communication parameters
Item
Setting range
Initial value
IP Address
0.0.0.0～223.255.255.255
192.166.0.40
Sub-net mask
0.0.0.0～255.255.255.255
255.255.255.0
Default gateway 1
0.0.0.0～255.255.255.255
0.0.0.0
1 If you do not want to use the default gateway, set it to 0.0.0.0.
No.
Indication
Item
Setting, selection and display
(1)
IP Address
IP Address
(Current values)
192.166.0.40 1
(2)
IP Address Setting
IP Address Setting
(3)
Subnet mask/Default
gateway setting
Subnet
mask/Default
gateway setting
(4)
DIO Run/Stop 2
"Run / Stop" by
contact input
1
Disabled
Enabled
(1)
(2)
(3)
(4)
