SMC Networks HRL100-A 40 Series User Manual

HRX-OM-X037
Chapter 4 Starting the Product
4.2 Preparation for Start HRL Series
4-2
4.2 Preparation for Start
4.2.1 Power supply
Turn ON the facility power supply breaker.
Turn ON the breaker handle.
If the product is powered on properly, the touch panel of the product operates as
follows.
・ The startup screen first appears on the touch panel and then switches to the
operation screen (home screen).

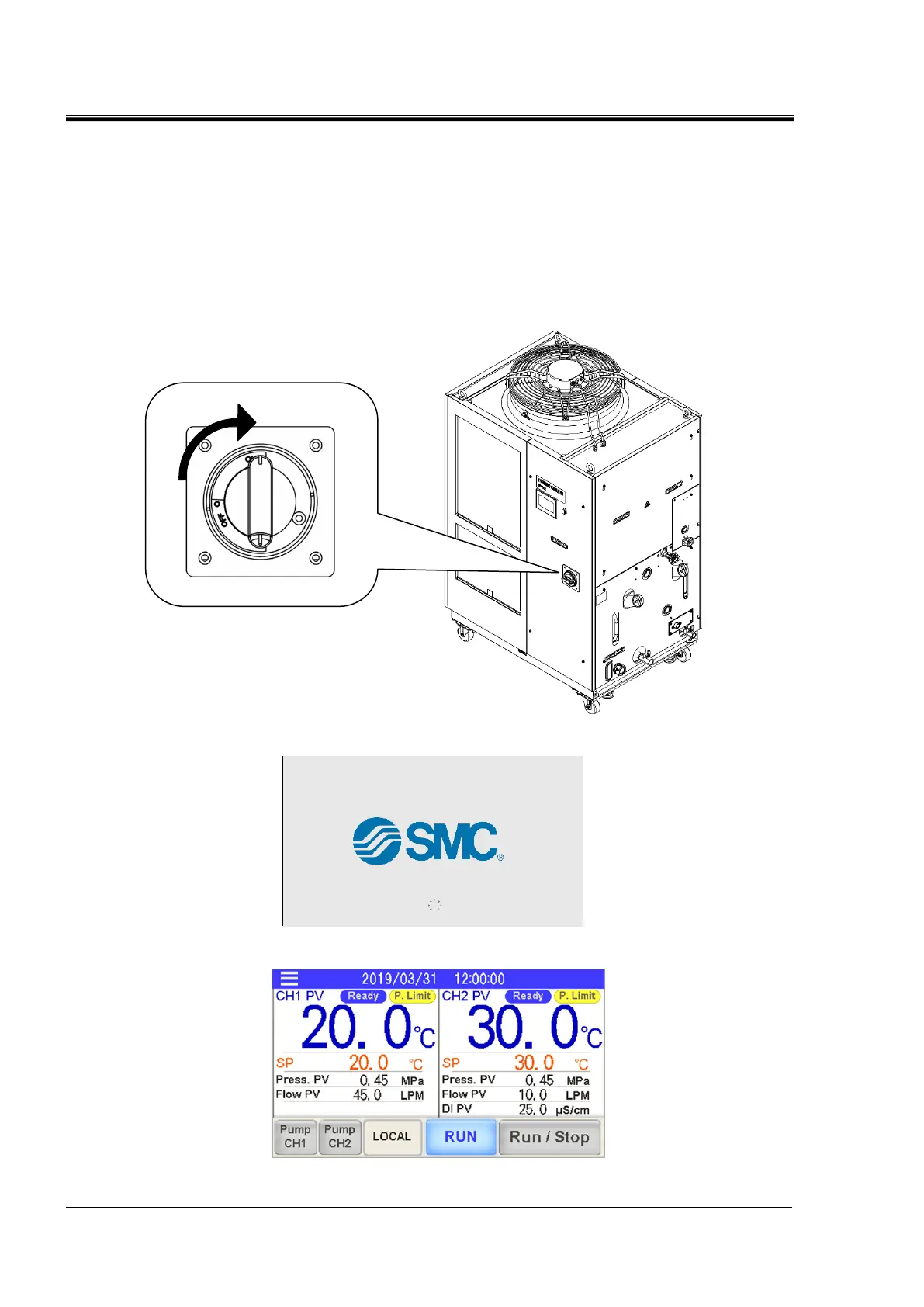

Fig. 4-1 Position of the breaker handle(the figure shows HRL200-A-40)
Fig.4-2 Startup screen
Fig.4-3 Operation screen (home screen)
ON
