Chapter 5 Display and Setting of Various Functions
HRL Series 5.4 Description of the Screen
・Circulating fluid discharge pressure [Press PV]
6. Display the circulating fluid discharge pressure of CH1 and CH2.
・Circulating fluid flow rate [Flow PV]
7. Display the circulating fluid flow rate of CH1 and CH2.
A rough indication including the bypass circuit is shown for the flow rate of CH1.
The flow rate measured by a flowmeter is shown for CH2. The bypass circuit is not
included.
・Circulating fluid flow rate [DI PV]
8. Display the electric conductivity of CH1,CH2.
In the case of option D1 "CH1 with electrical conductivity control", it will display.

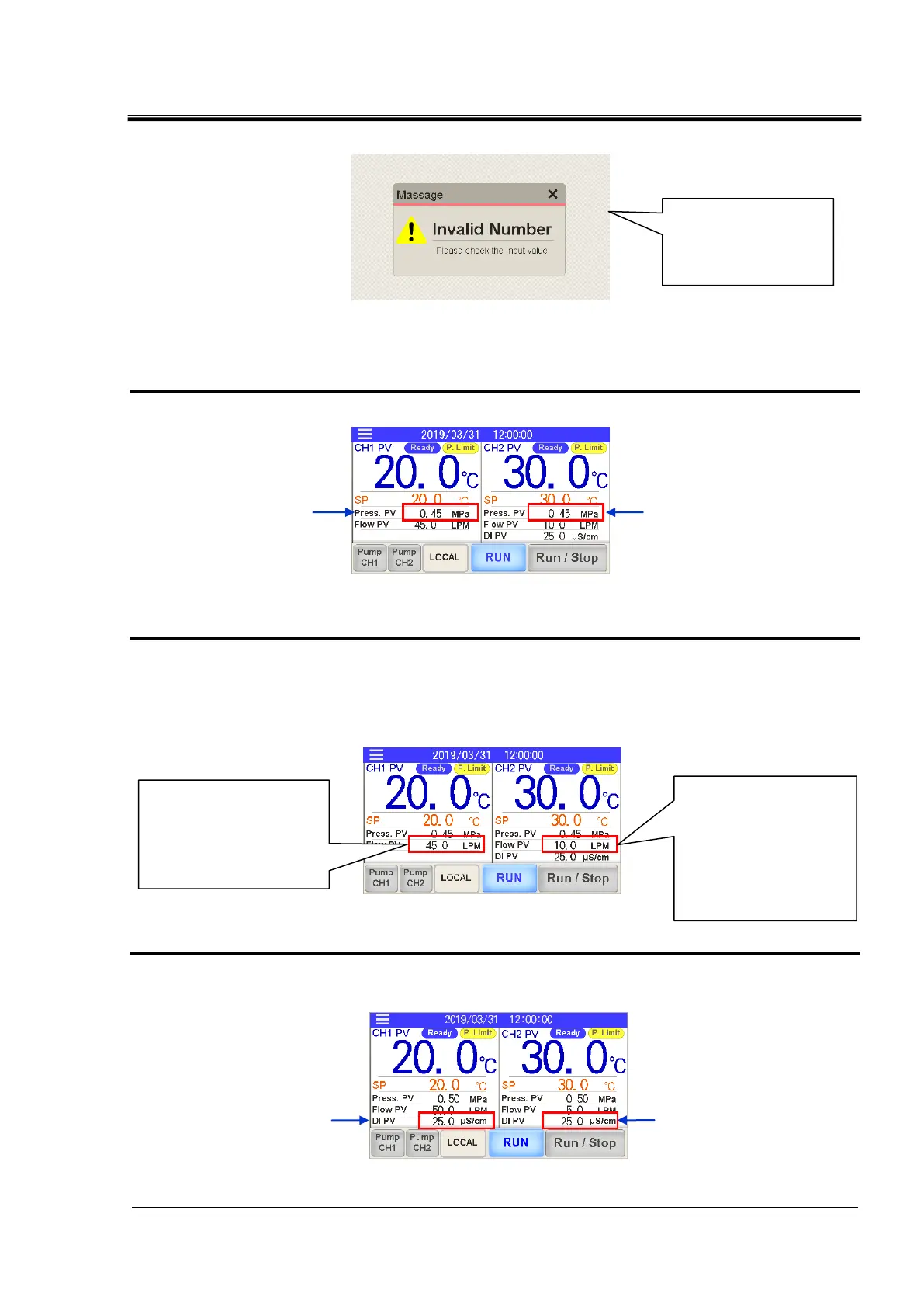

Circulating fluid discharge pressure
CH1 circulating fluid
discharge pressure
CH2 circulating fluid
discharge pressure
Circulating fluid flow rate
Flow rate of CH1
A rough indication of
the flow rate.
It includes the bypass
circuit flow rate.
Flow rate of CH2
The flow rate
measured by a
flowmeter
It does not include
the bypass circuit
flow rate.
Electric conductivity of CH2
Electric conductivity of CH1
In the case of out of
the setting range,
and displays an error
message.
