HRX-OM-X037
Chapter 3 Transport and Setting Up
HRL Series 3.3 Installation
3-9
3.3 Installation
3.3.1 Installation
 Use a bracket
1. Install this product according to the anchor bolts installed on the level floor.
2. Fasten the nuts to the anchor bolts.
3. Make sure that there is no looseness on any of the anchor bolts and nuts.
[Tips]
SMC Foundations bolt set “IDF-AB500” (SUS M10x50) is applicable. Please
order separately.

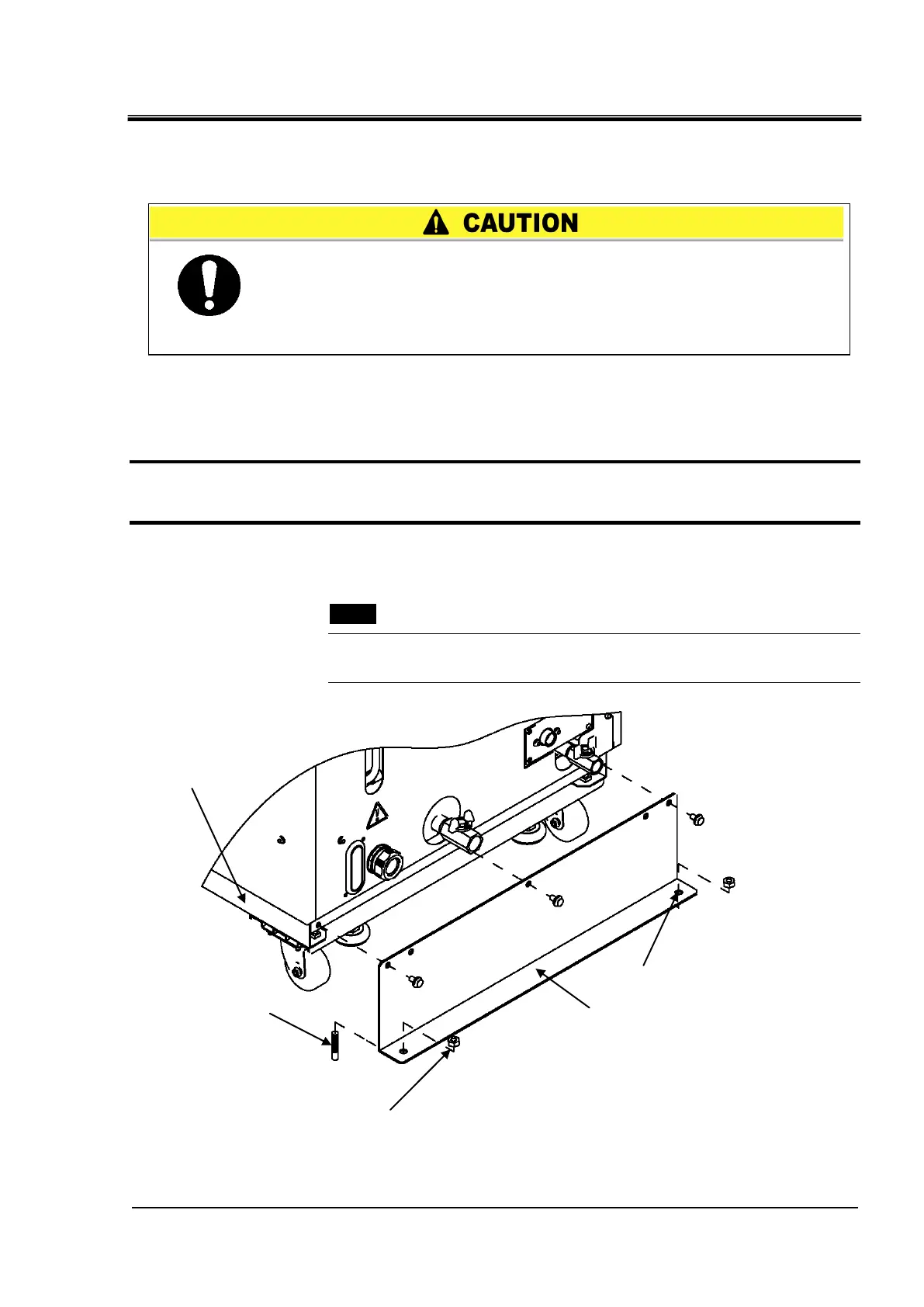

Fig. 3-4 Installation procedures
Anchor bolt
Nut
Base of the product
Hole for anchor bolt (Φ12)
Bracket
Install the product on a vibration free level floor.
Prepare the M10 anchor bolts suitable for the material of the floor that
the product will be installed on. Drive the anchor bolts in at least two
places on the product’s left and right sides (four places in total). Refer
to “9.2 Dimensions” for the position dimensions of the anchor bolts.
