Chapter 5 Display and Setting of Various Functions
HRL Series 5.4 Description of the Screen
5-51
・TEMP OUT signal
4. Set “TEMP OUT” signal.
“TEMP OUT” signal has a function to make an arbitrary selection from the following six
alarm signals to output a “TEMP OUT” signal from a contact or serial communication.
This function is set to “OFFˮ (disabled) by default.

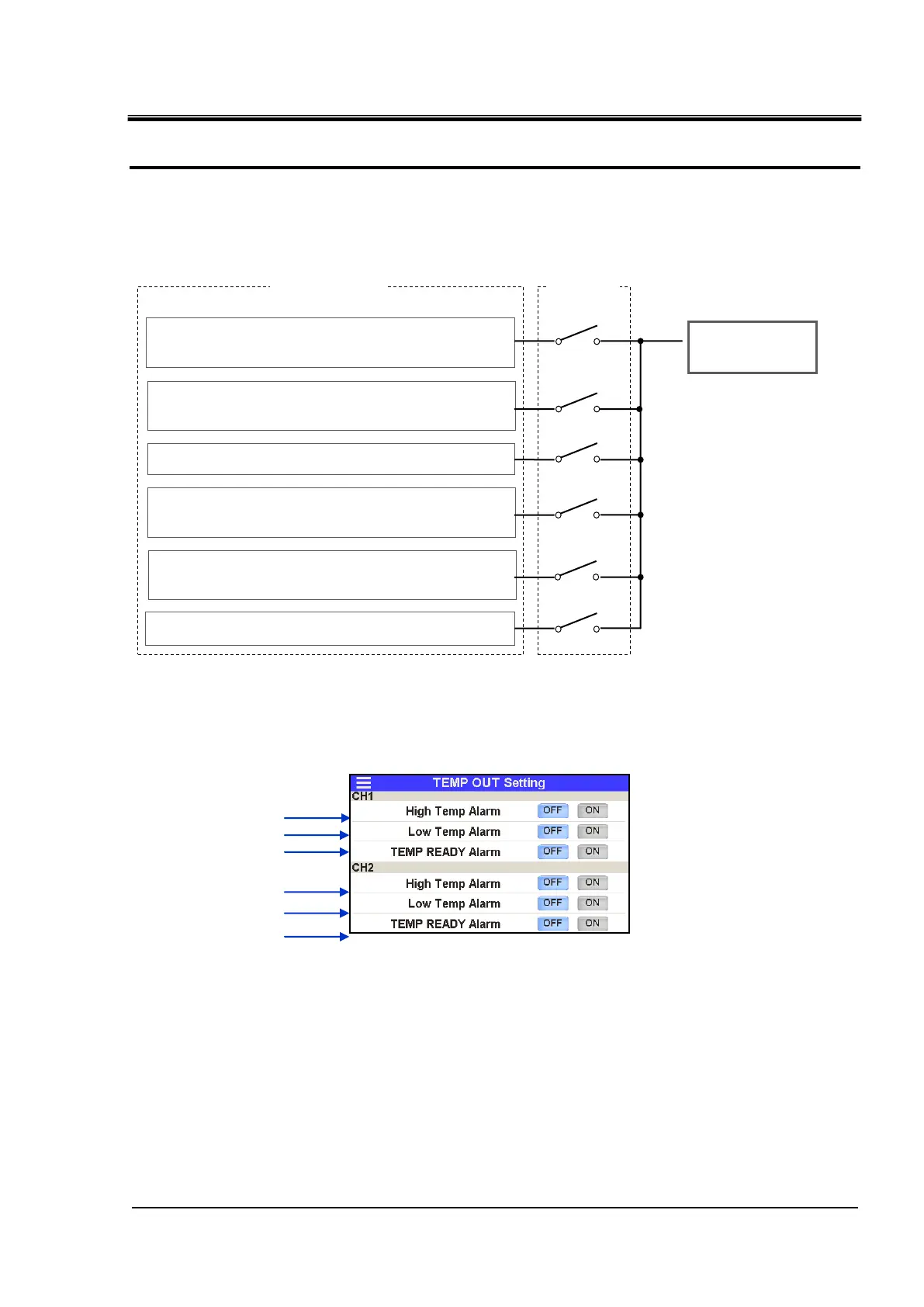

TEMP OUT signal output chart
Setting screen of TEMP OUT signal
(1)
(2)
(3)
(4)
(5)
(6)
(1) Alarm “AL10: CH1 circulating fluid
temperature rise”
(2) Alarm “AL11: CH1 circulating fluid
temperature drop”
(3) Alarm “AL12: CH1 TEMP READY alarm”
(4) Alarm “AL14: CH2 circulating fluid
temperature rise”
(5) Alarm “AL15: CH2 circulating fluid
temperature drop”
(6) Alarm “AL16: CH2 TEMP READY alarm”
“TEMP OUT”
signal
Alarm signal
Select
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
