Chapter 5 Display and Setting of Various Functions
HRL Series 5.4 Description of the Screen
5-45
5.4.9 Function setting screen

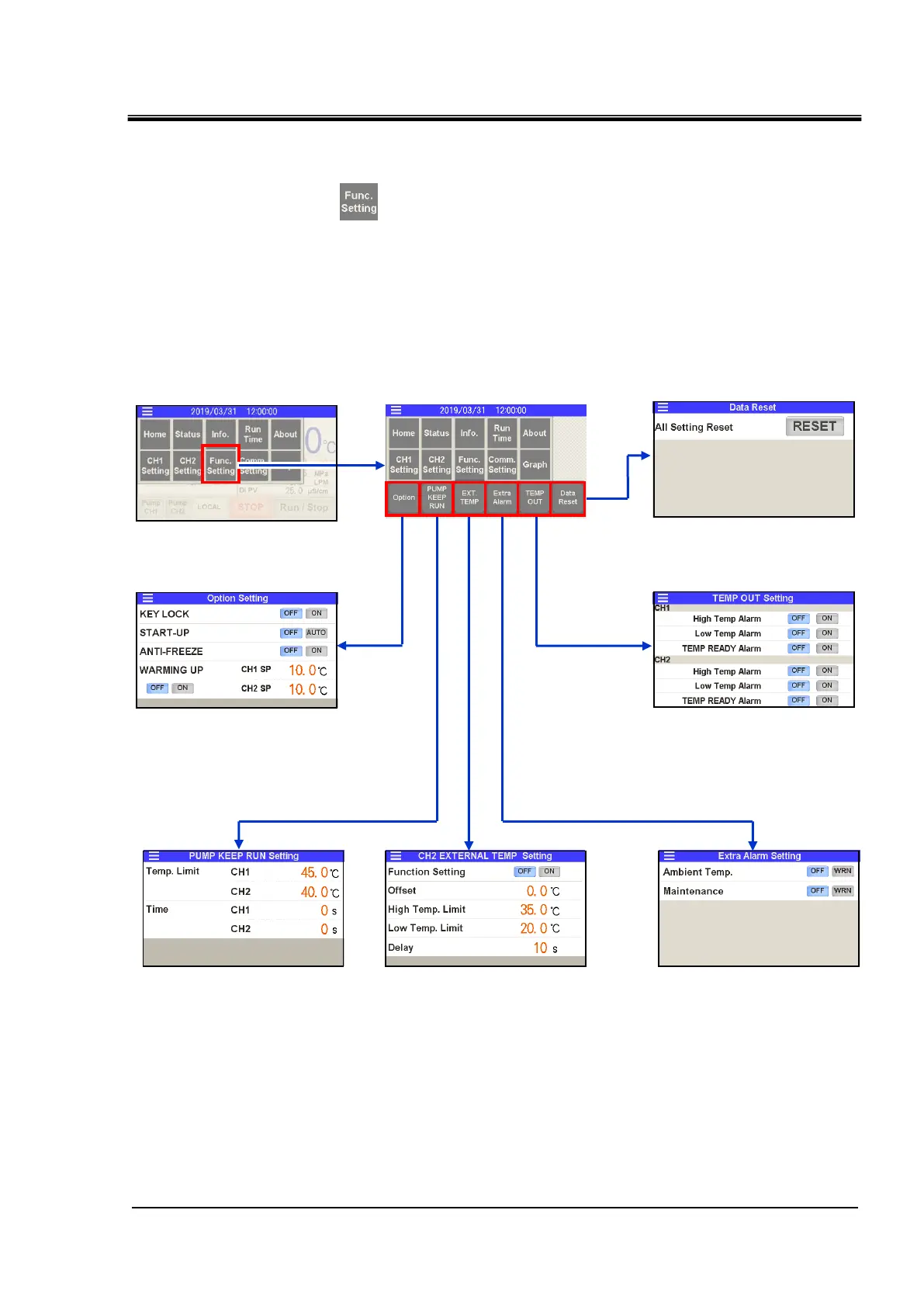

A screen for shifting to the following setting screens is displayed if
[ ]button on the menu is pressed.
・ Setting screen of KEY-LOCK/START-UP operating
method/ANTI-FREEZING/WARMING-UP
・ Setting screen for continuing pump operation
・ Setting screen for ambient temperature alarm (AL35) and
maintenance alarm (AL36)
・ Setting screen for TEMP OUT signal
・ Setting screen for data reset
Menu
KEY-LOCK, START-UP operating
method, ANTI-FREEZING and
WARMING-UP
Spare screen for use as
extension
(disabled-not usable)
Setting for ambient temperature
alarm (AL35)
and maintenance alarm (AL36)
Data reset
Setting for continuing
pump operation
Setting for TEMP OUT signal
