Chapter 5 Display and Setting of Various Functions
5.4 Description of the Screen HRL Series
5-16
5.4.4 Information screen
Information screen is displayed when [ ] button on the menu is pressed.
The “Informationˮ screen has the following functions:
・To show the content of currently activated “Alarms”.
・Displays the content of currently issued “Maintenance reminders”.
(Refer to “5.4.5 Check operation time screen and maintenance reminder”
for details.)
・To reset an alarm. (An alarm cannot be reset without first eliminating the cause.)
Refer to “Chapter 7 Alarm Notifications and Troubleshooting” for details.)
・To display previously activated alarms (alarm history).
[Tips]
If an “Alarm” is activated when the product is operating, the screen
automatically switches to the “Information”.
However, if the “Maintenance reminder” is issued, the screen will not switch.
[ ] is displayed upper right on the screen if an “Alarm” is activated
or a “Maintenance reminder” is issued.

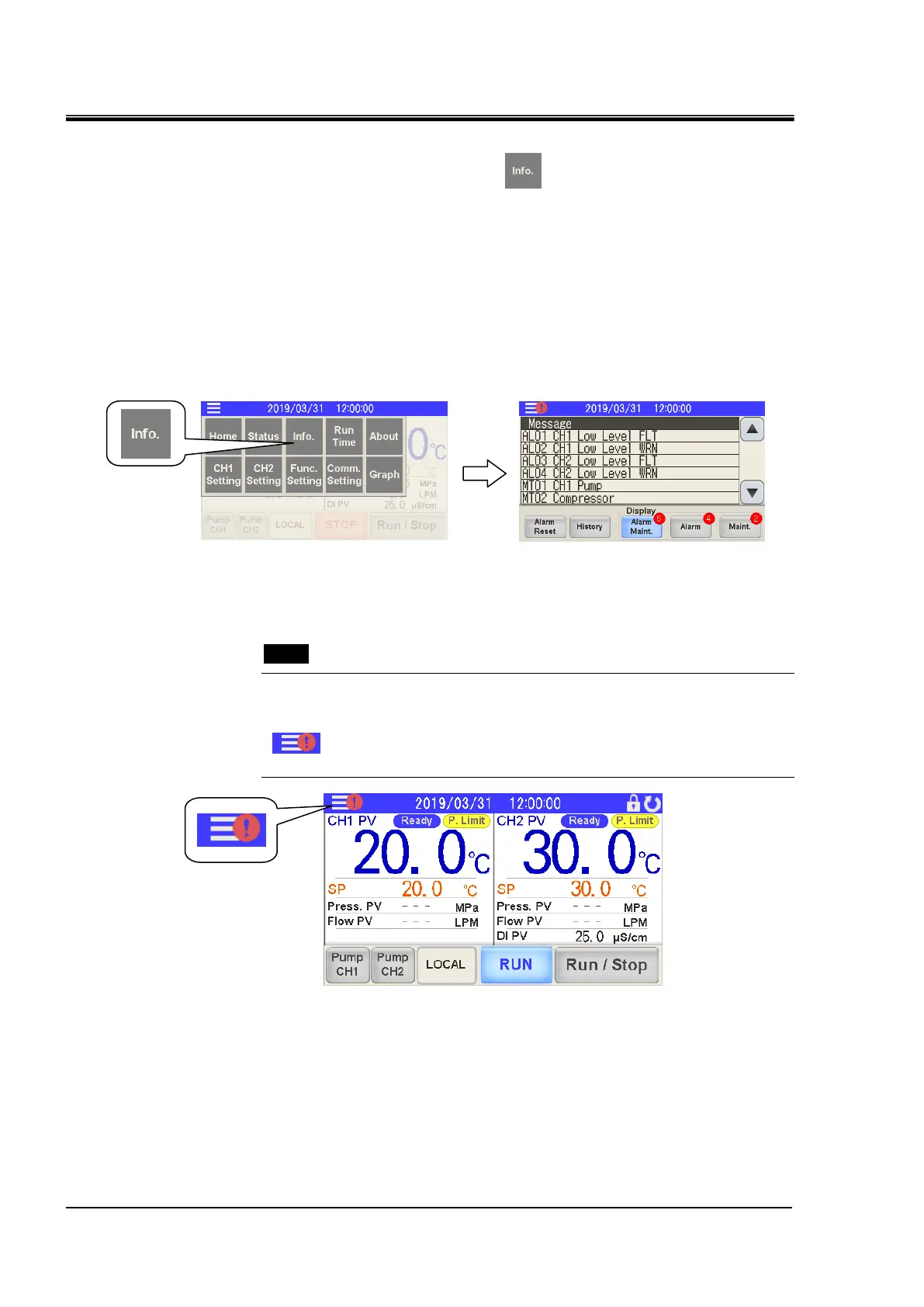

Menu
Press
Information screen
Display when an “Alarm” is activated or
“Maintenance reminder” is issued
