SMC Networks HRL100-A 40 Series User Manual

HRX-OM-X037
Chapter 5 Display and Setting of Various Functions
5.4 Description of the Screen HRL Series
5-66
5.4.12 Temperature waveform screen
Press [ ] button on the menu to display “Temperature waveform”
screen.
The “Temperature waveform” screen has following functions:
・ Displays “CH1 circulating fluid temperature waveform”. The sampling
cycles are 1 sec. each.
・ Displays “CH2 circulating fluid temperature waveform”. The sampling
cycles are 1 sec. each.
・ “Temperature waveform” can be displayed up to approximately last 9
hours.
Press
Menu

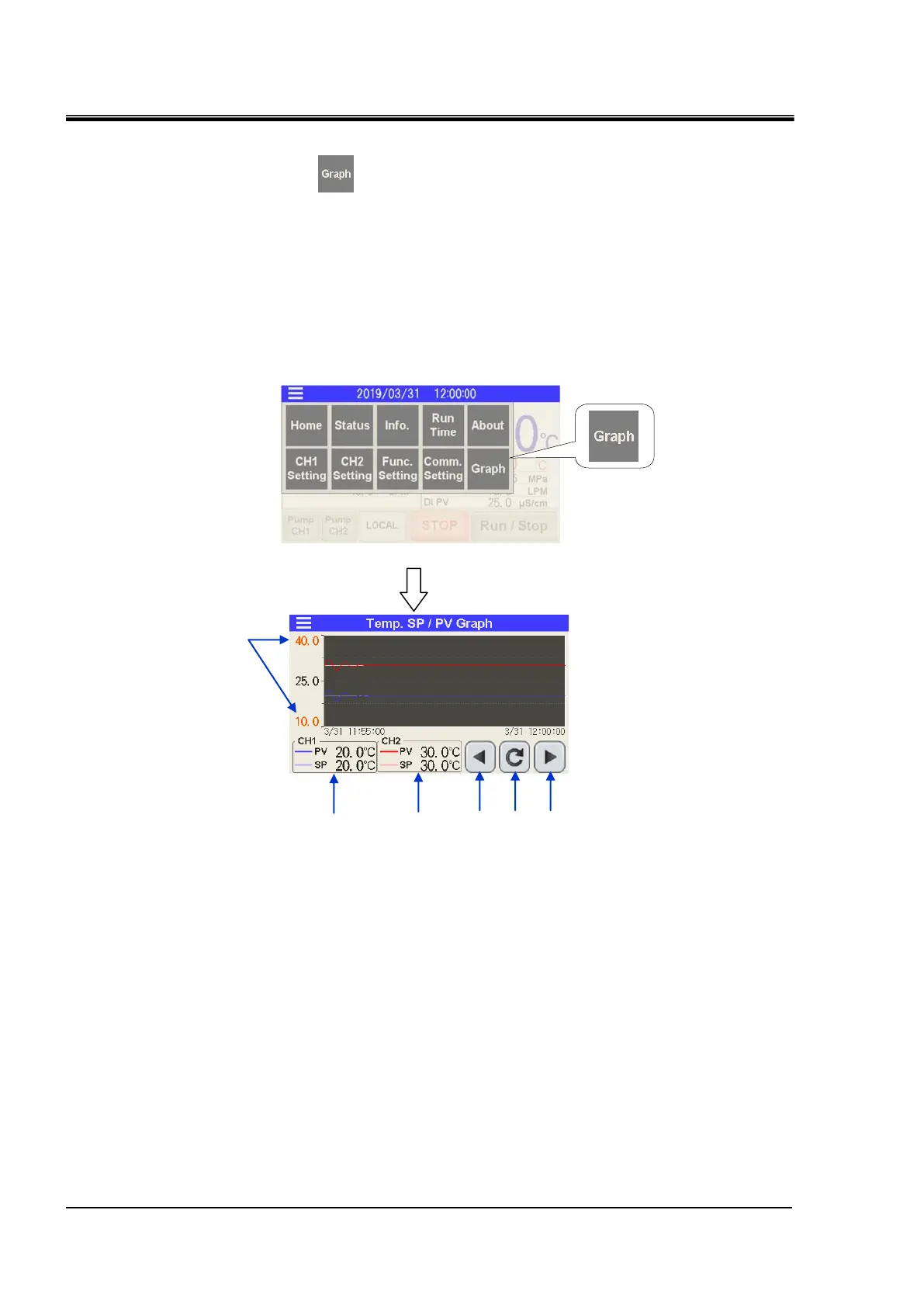

Temperature waveform screen
(1)
(2)
(3)
(5)
(4)
(6)
