HRX-OM-X037

Chapter 9 Documents

HRL Series 9.2 Dimensions

9-9

9.2.4 HRL100/200-W-40

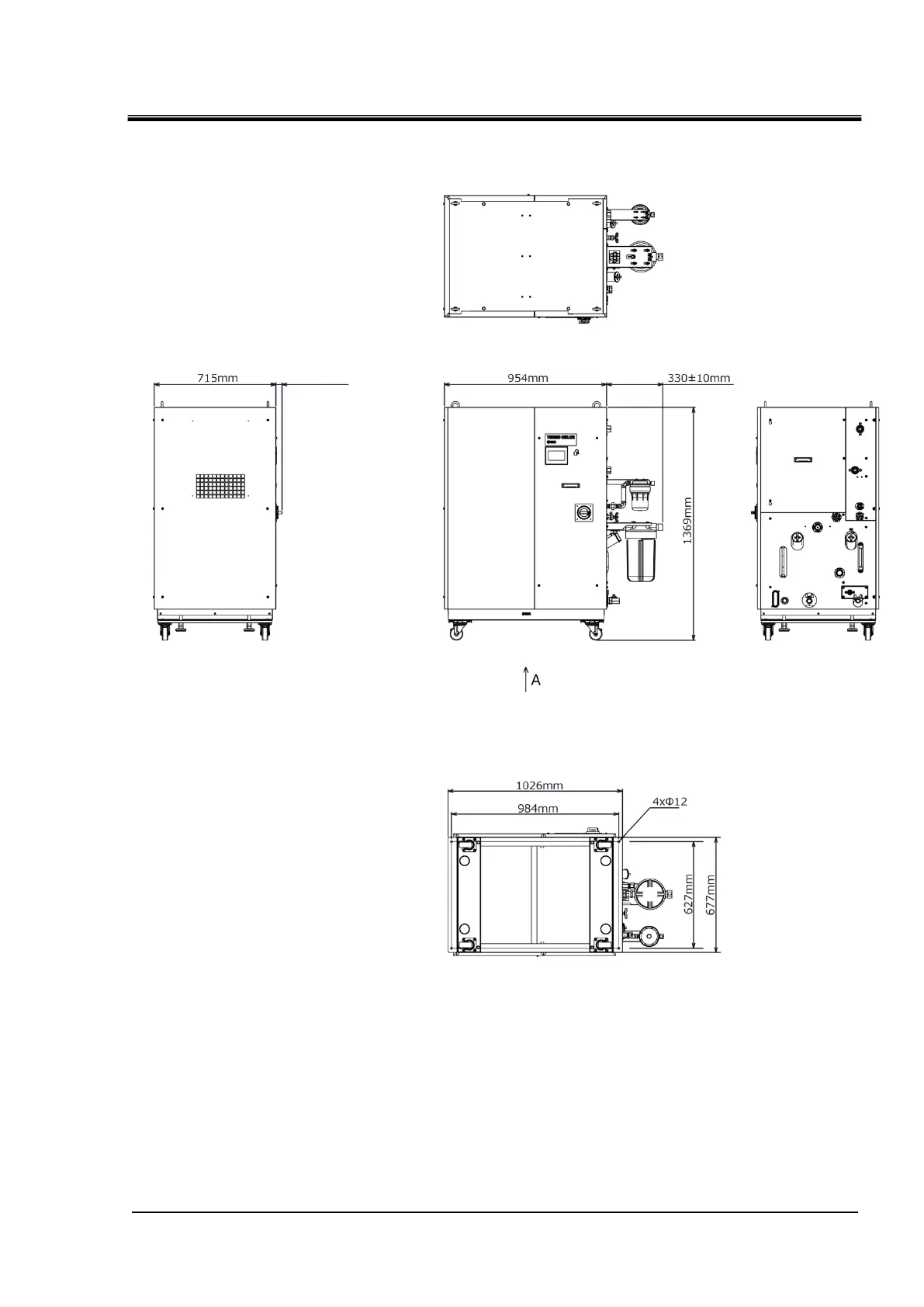

Fig. 9-4 Dimensions

Dimensions for the positions of the anchor bolts (View A)

40mm or less
