SMC Networks HRL100-A 40 Series User Manual

HRX-OM-X037
Chapter 6 Option
6.2 Option-T3 [CH2 High-Pressure Pump Mounted] HRL Series
6-2
6.2 Option-T3 [CH2 High-Pressure Pump Mounted]
 Applicable only to HRL300-A-40.
Possible to choose a high-pressure pump in accordance with user’s piping resistance.
Total cooling capacity of CH1 and CH2 will decrease by heat generated in the pump.
・The CH2 pump used for option T3 uses a mechanical seal.
・We will inform you of the inspection time in the maintenance notice. Please contact to service
center to ask for maintenance of the pump and mechanical seal.
Applicable Model
HRL300-A-40-T3
CH1
CH2
Pump
Rated flow rate (Outlet)
L/min
Same as standard
product
38（0.45MPa）
Maximum flow rate
L/min
Same as standard
product
60
Maximum lifting height
m
Same as standard
product
Same as standard
product
Minimum operating flow rate
L/min
Same as standard
product
10
Tank capacity
L
Same as standard
product
12
Cooling capacity
*1
W
It differs from the standard cooling capacity.
Please refer to the Fig. 9-15, Fig. 9-16 for the
details.
Port size
－
－
－
Standard
N
*2
F
*2
CH1
Circulating fluid
outlet port
Chiller side
1” union
Filter side
Rc1
NPT1
G1
Circulating fluid return port
Rc1
NPT1
G1
Tank drain port
Rc3/4
NPT3/4
G3/4
CH2
Circulating fluid
outlet port
Chiller side
3/4” union
Filter side
Rc3/4
NPT3/4
G3/4
Circulating fluid return port
Rc3/4
NPT3/4
G3/4
Tank drain port
Rc1/4
NPT1/4
G1/4
1 Cooling capacity will decrease as pump power increases.
*2 When the piping thread type "F (G thread)" or "N (NPT thread)" is selected, it becomes "G thread " or
"NPT thread ".
3 When the option-T3 is selected, the weight increases by 18 kg .
4 No change in external dimensions.

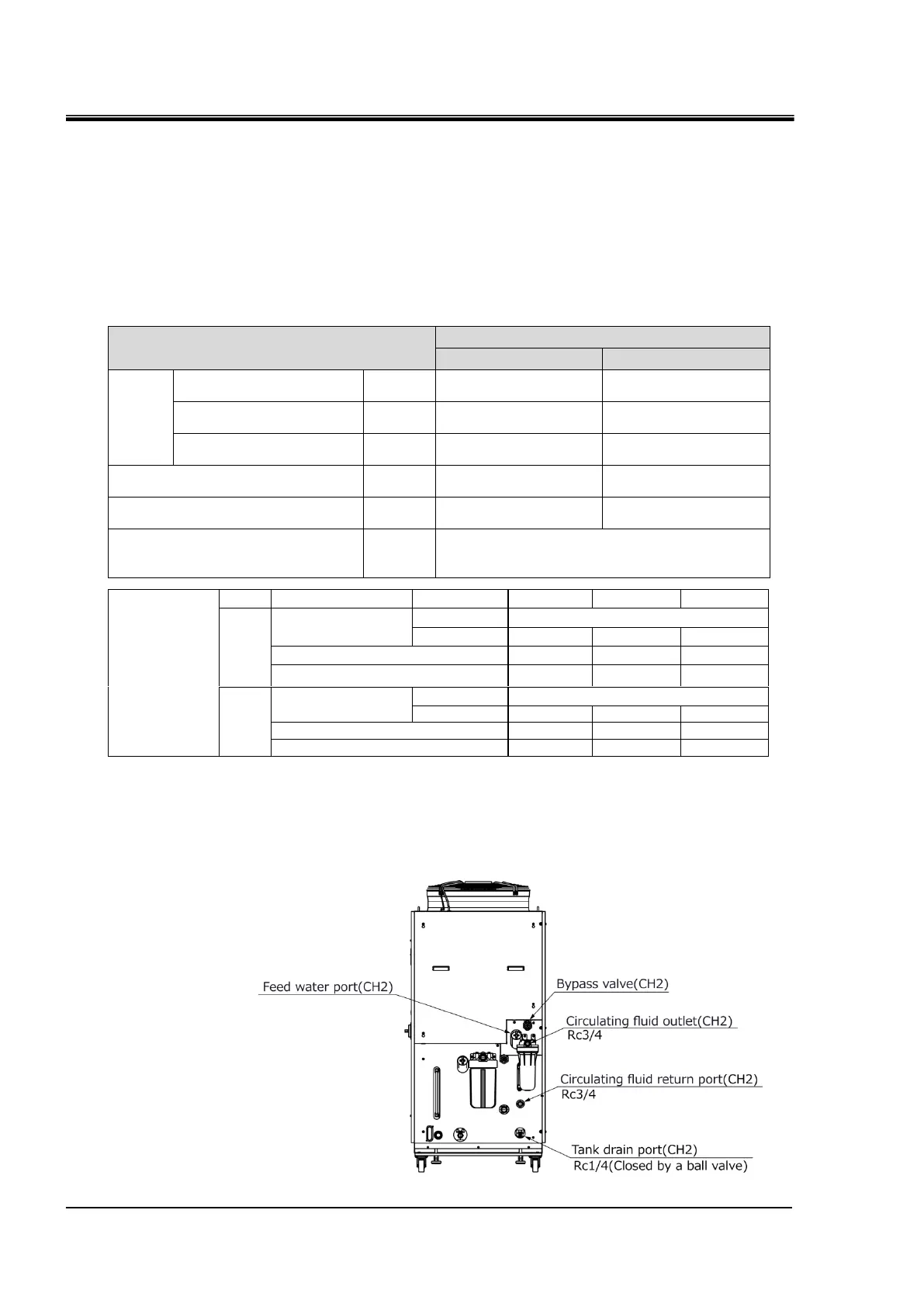

Port layout (CH2)
CH1 port layout unchanged.
