SMC Networks HRL100-A 40 Series

HRX-OM-X037
Chapter 9 Documents
HRL Series 9.4 Cooling Capacity
9-17
9.4.11 HRL100-W-40 CH1

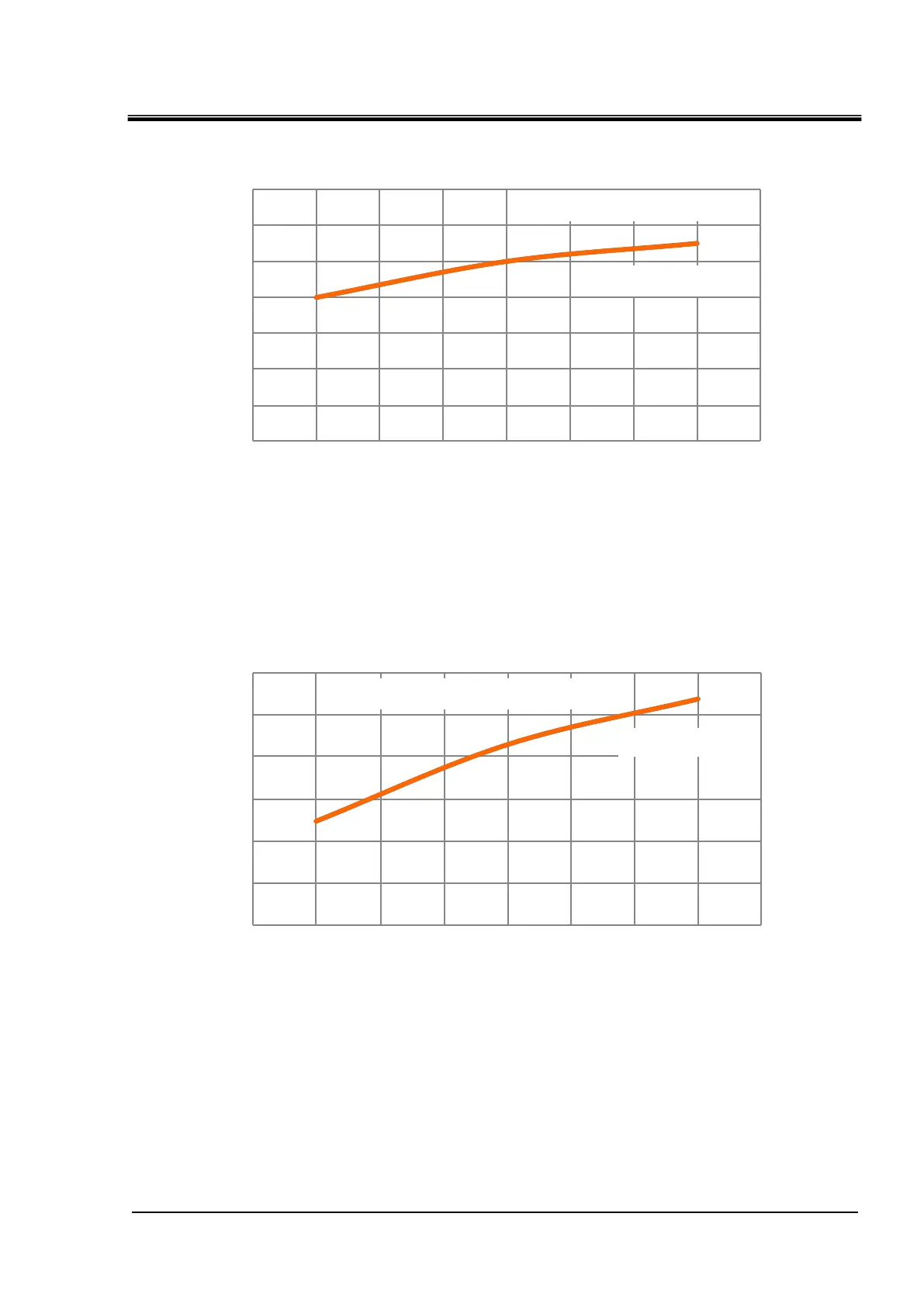

Fig. 9-17 Cooling Capacity (HRL100-W-40 CH1)
9.4.12 HRL200-W-40 CH1
Fig. 9-18 Cooling Capacity (HRL200-W-40 CH1)
0
2
4
6
8
10
12
14
0 5 10 15 20 25 30 35 40
Cooling capacity [kW]
Circulating fluid temperature [
o
C]
Ambienttemperature
32
o
C, 35
o
C
0
5
10
15
20
25
30
0 5 10 15 20 25 30 35 40
Cooling capacity [kW]
Circulating fluid temperature [
o
C]
Ambienttemperature
32
o
C, 35
o
C
