AP6A01 – Resolver and motor temperature sensor (9-pin to 15-pin)
Interface adapter with separate motor temperature sensor leads routed out on the side.
Socket
24
Pin Designation Function Pin Connector
25
1 | 2 | 3 | 4 | 5
6 | 7 | 8 | 9
1 — — — 1|2|3|4|5|6|7|8|9
10|11|12|13|14|15
2 1TP1 Motor temperature
sensor connection, if
included in the encoder
cable connector; routed
out for the direct
connection to terminal
X2
—
3 S2 Sin− Sin input reference
potential
9
4 S1 Cos− Cos input reference
potential
11
5 R1 Ref− Resolver excitation
signal reference
potential
2
6 1TP2 Motor temperature
sensor connection, if
included in the encoder
cable connector; routed
out for the direct
connection to terminal
X2
—
7 S4 Sin+ Sin input 1
8 S3 Cos+ Cos input 3
9 R2 Ref+ Resolver excitation
signal
6

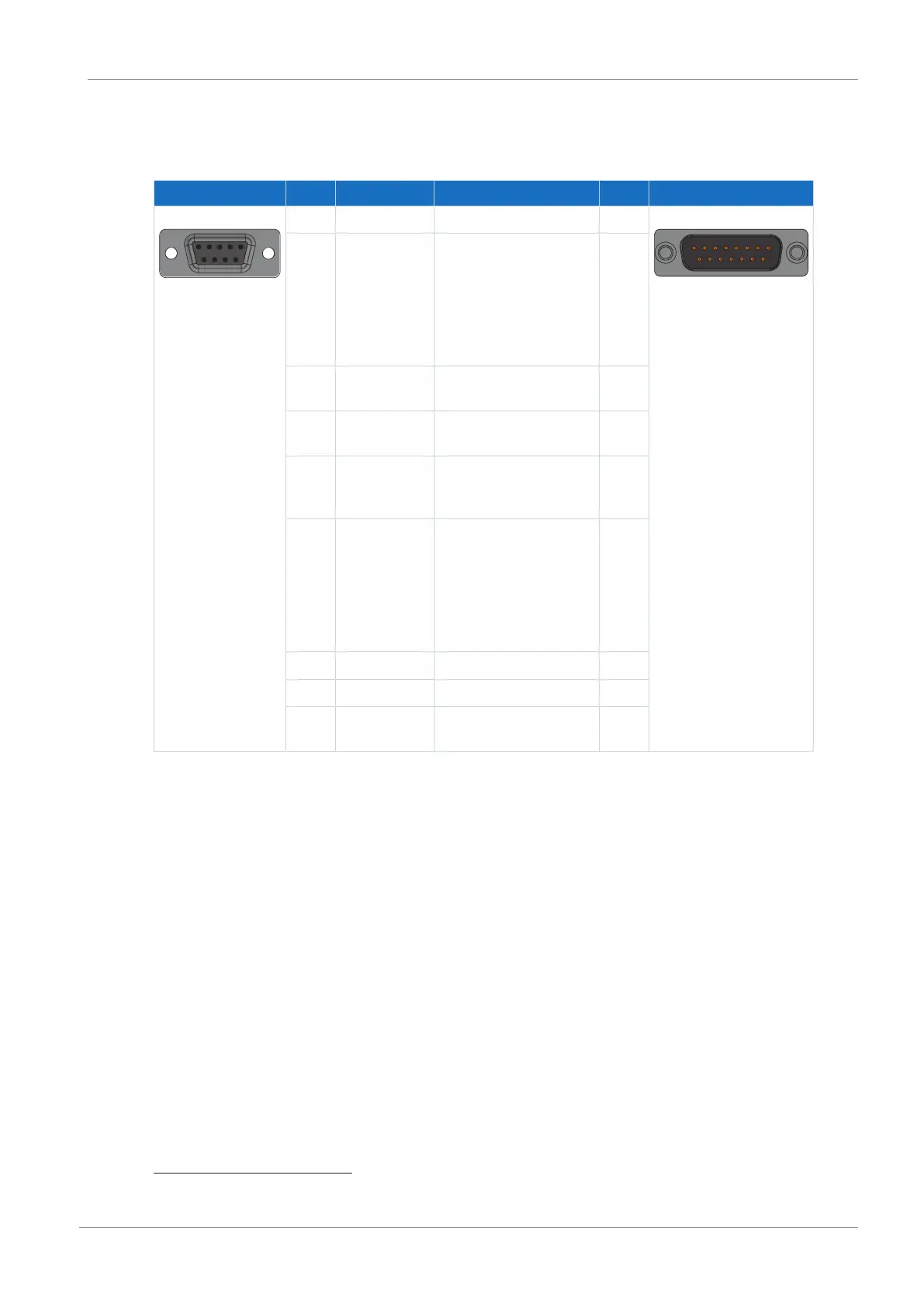

Tab. 137: AP6A01 connection description for the resolver and motor temperature sensor (9-pin to 15-pin)
24
View of 9-pin D-sub for connecting the SDS 4000-compatible resolver cable
25
View of 15-pin D-sub for connecting to SD6, terminal X140 (RI6)
