Stober SD6 Series User Manual

STOBER 8 | Connection
12/2018 | ID 442537.05
69
8.4.1.3 Size 3
3
1
3
2
4
5
7
6
8
X12
6
X200
4
X3A
5
X3B
7
X201
2
X11
PE
L2
L3
L1
1
X10

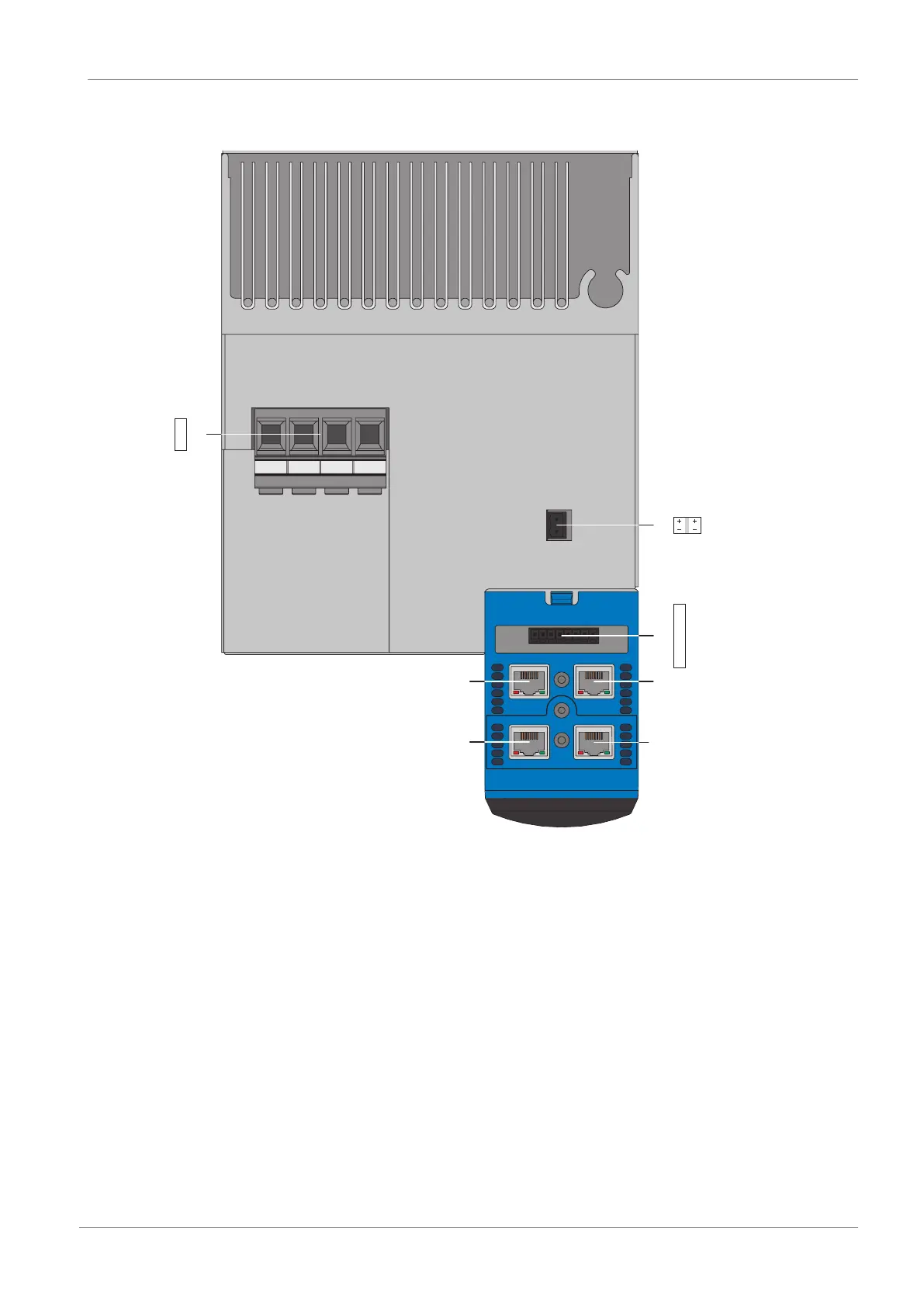

Fig.12: Connection overview of size 3 with ST6 safety module, top of device
1 X10: 400V
AC
supply
2 X11: 24V
DC
supply
3 X12: ST6 safety technology
4 X3A: PC, IGB
5 X3B: PC, IGB
6 X200: EtherCAT on the optional EC6 communication module
(alternatively CANopen on CA6 communication module or
PROFINET on PN6 communication module)
7 X201: EtherCAT on the optional EC6 communication module
(alternatively PROFINET on PN6 communication module)
