8 | Connection STOBER
74
12/2018 | ID 442537.05
8.4.2.3 Size 3
8
X200
6
X3A
7
X3B
9
X201
2
X11
3
X14
5
X50
4
8
6
7
5
X15
4
2
3
1
5
3
4
2
1
10
8
9
7
6
PE
L2
L3
L1
1
X10

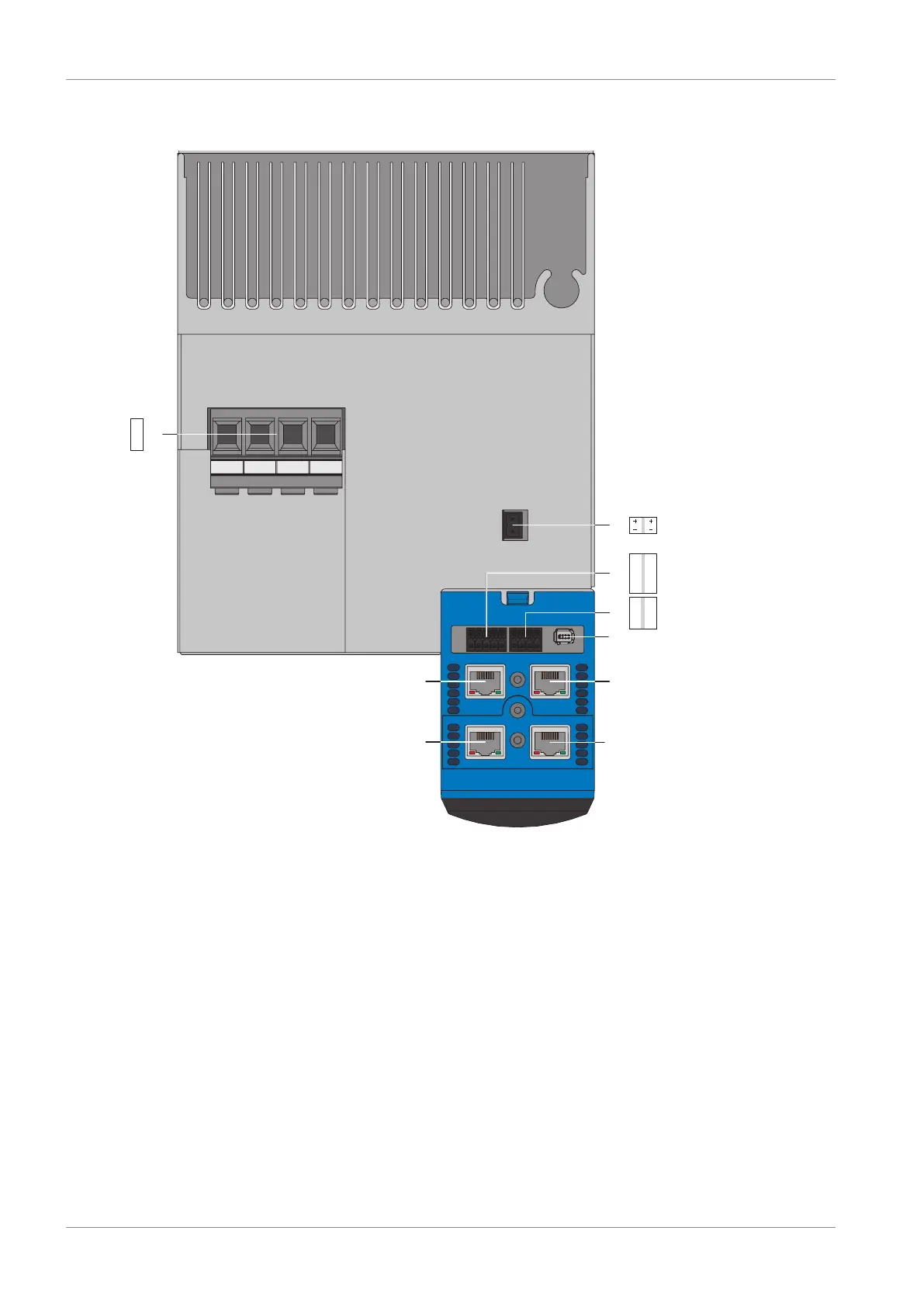

Fig.16: Connection overview of size 3 with SE6 safety module, top of device
1 X10: 400V
AC
supply
2 X11: 24V
DC
supply
3 X14: SE6 safety technology – Safe inputs
4 X15: SE6 safety technology – Safe outputs and supply for X50
5 X50: SE6 safety technology – Plausibility encoder
6 X3A: PC, IGB
7 X3B: PC, IGB
8 X200: EtherCAT on the optional EC6 communication module
(alternatively CANopen on CA6 communication module or
PROFINET on PN6 communication module)
9 X201: EtherCAT on the optional EC6 communication module
(alternatively PROFINET on PN6 communication module)
