STOBER 8 | Connection
12/2018 | ID 442537.05
85

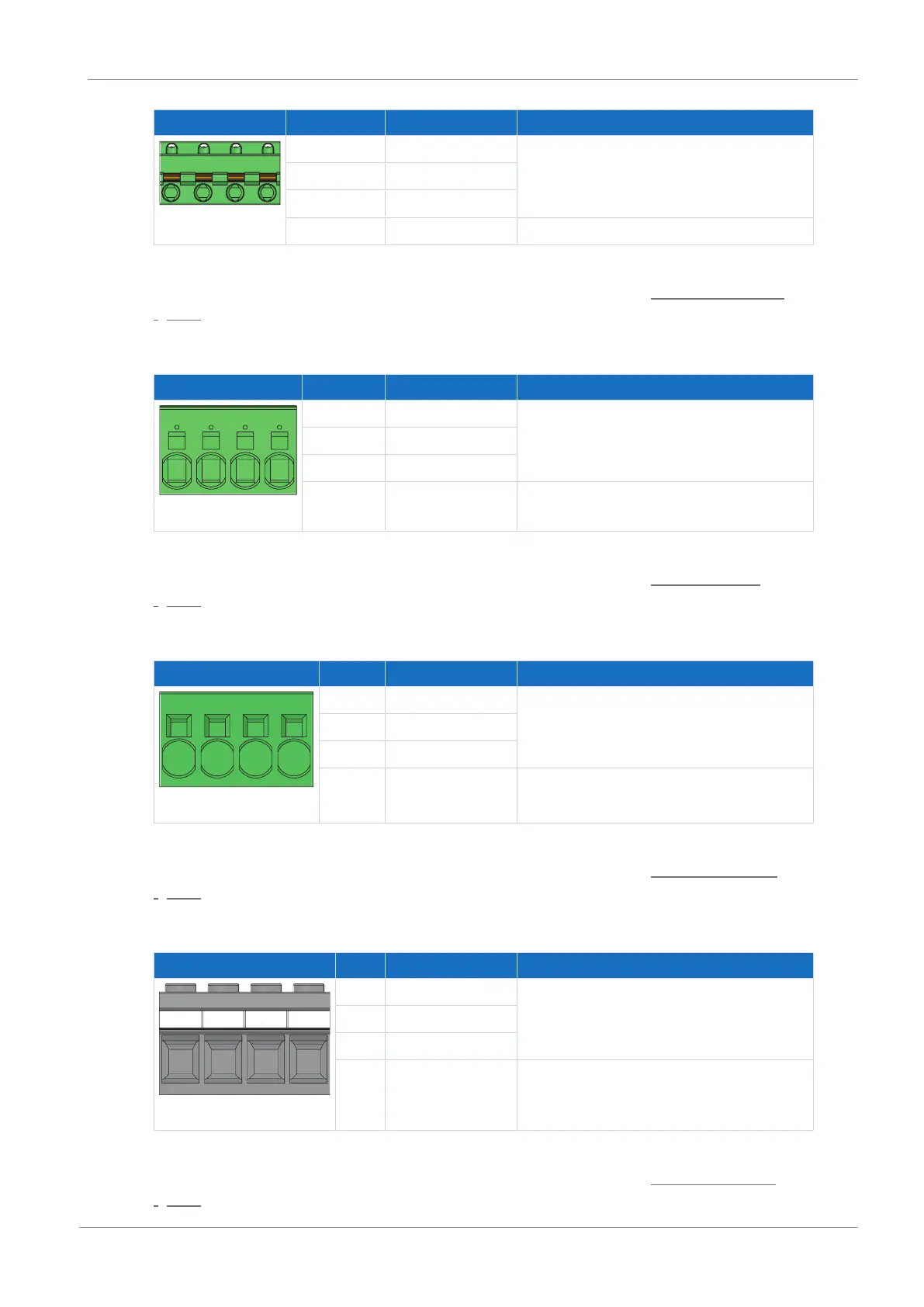

Terminal Pin Designation Function
1 | 2 | 3 | 4
1 L1 Power supply
2 L2
3 L3
4 PE Grounding conductor
Tab. 72: X10 connection description – Size 0, 3-phase line connection
For connecting wiring, observe the terminal specifications in the chapter GFKC 2,5 -ST-7,62
[}154].
Size 1
Terminal Pin Designation Function
1 | 2 | 3 | 4
1 L1 Power supply
2 L2
3 L3
4 PE Grounding conductor
Tab. 73: X10 connection description – Size 1, 3-phase line connection
For connecting wiring, observe the terminal specifications in the chapter SPC 5 -ST-7,62
[}155].
Size 2
Terminal Pin Designation Function
1 | 2 | 3 | 4
1 L1 Power supply
2 L2
3 L3
4 PE Grounding conductor
Tab. 74: X10 connection description – Size 2, 3-phase line connection
For connecting wiring, observe the terminal specifications in the chapter SPC 16 -ST-10,16
[}156].
Size 3
Terminal Pin Designation Function
1 | 2 | 3 | 4
1 L1 Power supply
2 L2
3 L3
4 PE Grounding conductor
Tab. 75: X10 connection description – Size 3, 3-phase line connection
For connecting wiring, observe the terminal specifications in the chapter MKDSP 25 -15,00
[}157].
