AIRBAG SYSTEM
General Description
• Do not drop the airbag modulator parts, subject
them to high temperature over 93°C (199°F), or let
water, oil, or grease get on them; otherwise, the in-
ternal parts may be damaged and reliability greatly
lowered.
• If any damage, opening, or rust is found on the
airbag system wire harness, do not attempt to re-
pair using soldering equipment. Be sure to replace
the faulty harness with a new genuine part.
• Install the wire harness securely with the speci-
fied clips to avoid interference or tangled up with
other parts.
• Do not allow water or oil to come in contact with
the connector terminals. Do not touch the connec-
tor terminals.
• Either of the airbag modules for driver, passen-
ger or side, or pretensioner must not be disassem-
bled.
• The removed front seat with the airbag module
must be kept at least 200 mm (8 in) away from walls
and other objects.
• Do not use the airbag or pretensioner parts from
other vehicles. Always replace defective parts with
new ones.
• Never reuse a deployed airbag or pretensioner.
• When painting or performing sheet metal work
on the front part of the vehicle, including the front
wheel apron, front fender, and front side frame, re-
move the front sub sensors and wire harness of the
airbag system.

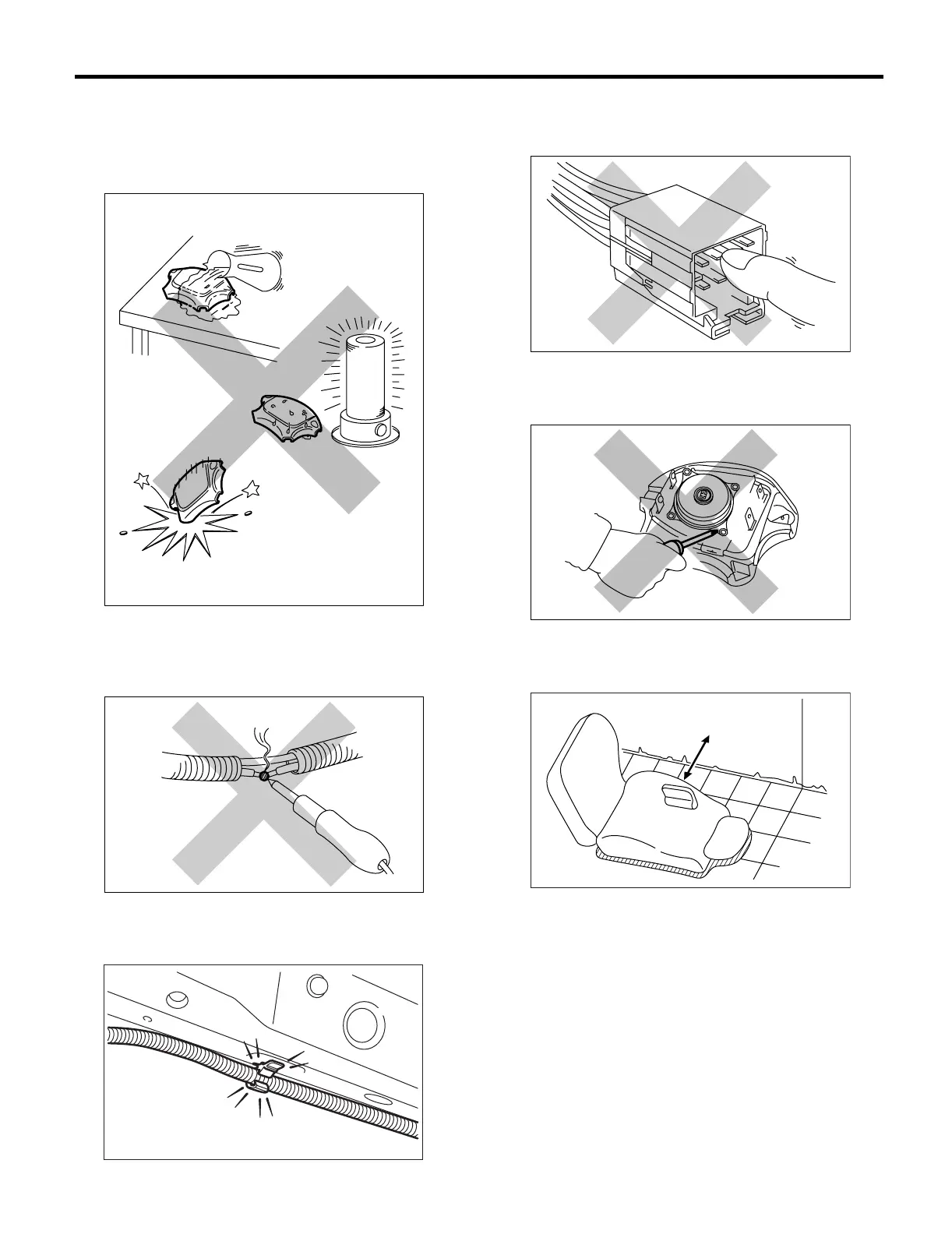

AB-00123
AB-00124
AB-00125
(1) More than 200 mm (8 in)
AB-00126
AB-00779
AB-00128
(1)
