WW-9
WIPER AND WASHER SYSTEM
Wiper Blade
4. Wiper Blade
A: REMOVAL

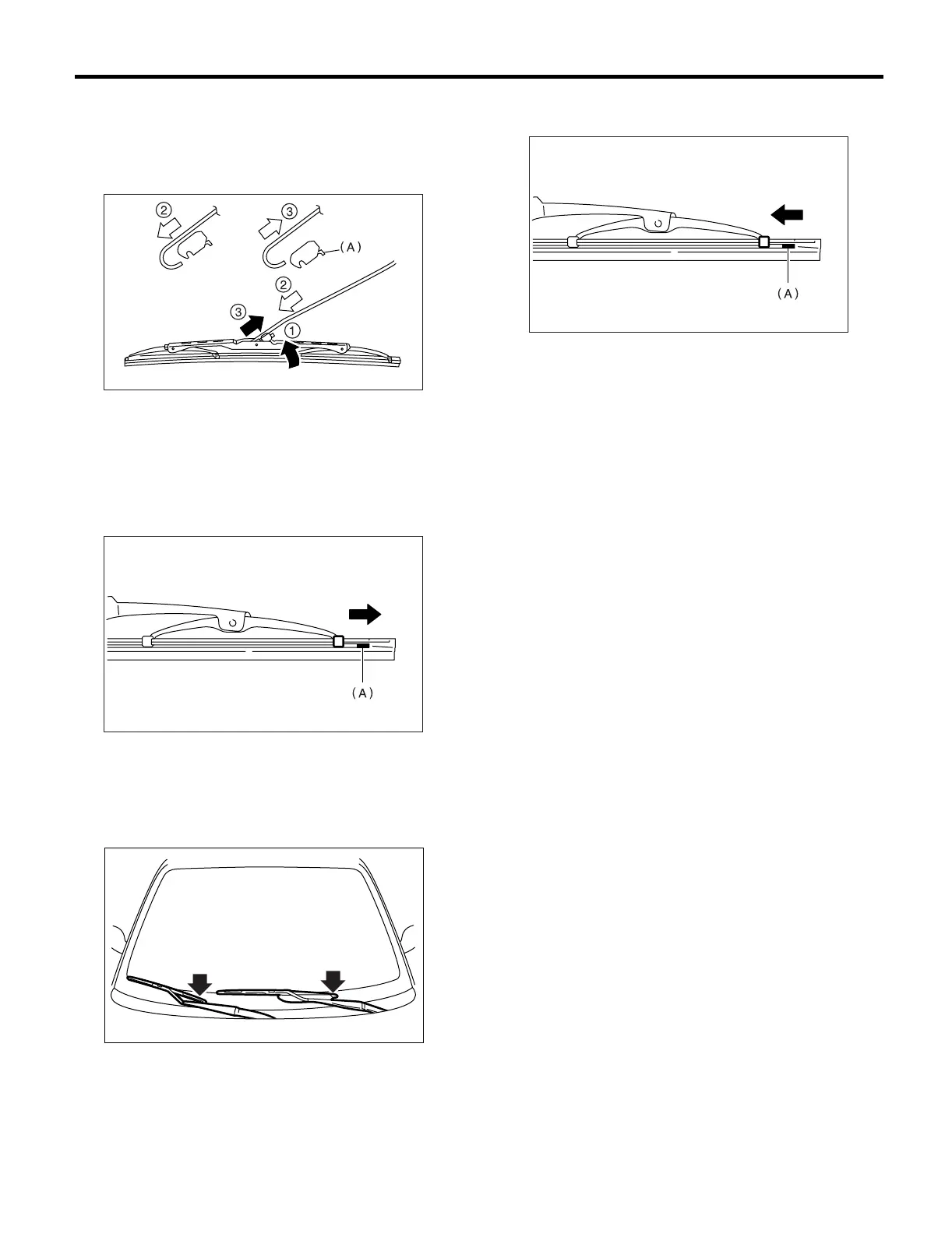

While pushing the locking clip (A) up, pull out the
blade from arm to arrow direction.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Confirm that the clip is locked securely.
C: DISASSEMBLY
Pull on side (A) of the wiper rubber stopper and re-
move the rubber from the blade assembly.
D: ASSEMBLY
1. METAL TYPE
1) Insert the wiper rubber onto the blade so that the
stopper is in the position shown.
2) Make sure the wiper rubber is securely fastened
to the pull stopper (A).
WW-00008
WW-00009
WW-00049
WW-00037
