WW-18
WIPER AND WASHER SYSTEM
Rear Washer
11.Rear Washer
A: REMOVAL
1) Remove the rear gate upper trim. <Ref. to EI-48,
REMOVAL, Rear Gate Trim.>
2) Remove the washer hose from the washer noz-
zle.

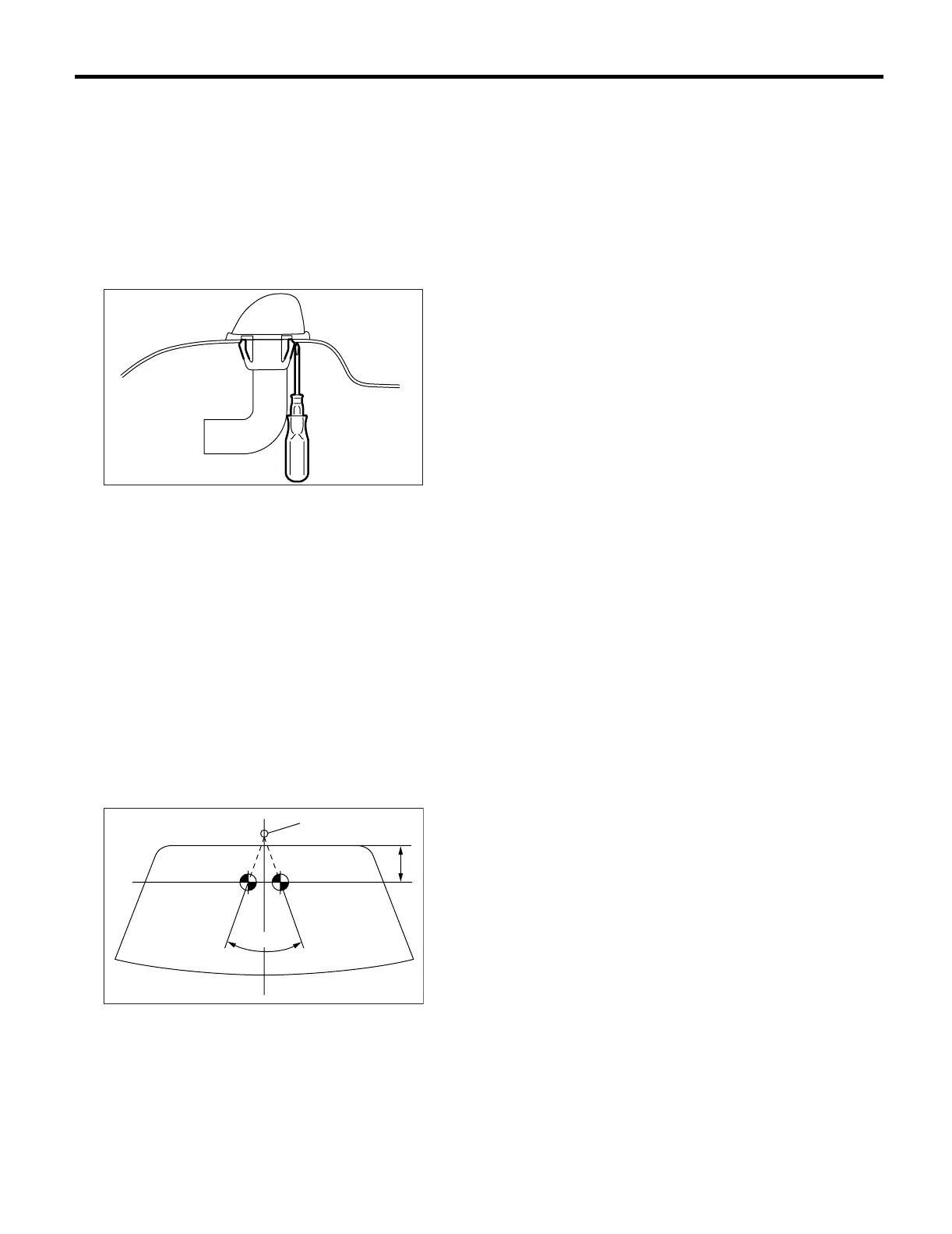

3) Push the anchor portion of washer nozzle with a
thin screwdriver or other tool, and remove the
washer nozzle.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Adjust the position of the washer liquid sprayer.
<Ref. to WW-18, ADJUSTMENT, Rear Washer.>
C: INSPECTION
• Make sure the nozzle and hose are not clogged.
• Check hoses for twist or fold.
D: ADJUSTMENT
1) Turn the wiper switch to OFF position.
2) When the vehicle stops, adjust the washer injec-
tion position as shown in the figure.
Injection position:
A: 35 mm (1.38 in)
B: 72
°
(1) Nozzle
WW-00201
WW-00054
A
(1)
B
