HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
Evaporator
15.Evaporator
A: REMOVAL
1) Perform the refrigerant recovery operation, and
then disconnect the toe board area A/C pipe. <Ref.
to AC-26, OPERATION, Refrigerant Recovery Pro-
cedure.>
2) Remove the glove box.
3) Remove blower motor unit assembly. <Ref. to
AC-32, REMOVAL, Blower Motor Unit Assembly.>
4) Loosen the screws and remove evaporator cov-
er.
5) Remove the A/C pipes in unit.
6) Rotate the upper part of evaporator tilt toward
the front vehicle and the lower part tilt toward the in-
terior, respectively. Then pull out the heater case to
the left side.
7) Remove the two bolts to remove expansion
valve.
CAUTION:
If the evaporator is replaced, add appropriate
amount of compressor oil to evaporator. <Ref.
to AC-31, REPLACEMENT, Compressor Oil.>
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Replace the O-ring for A/C pipe with a new one,
and then apply compressor oil.

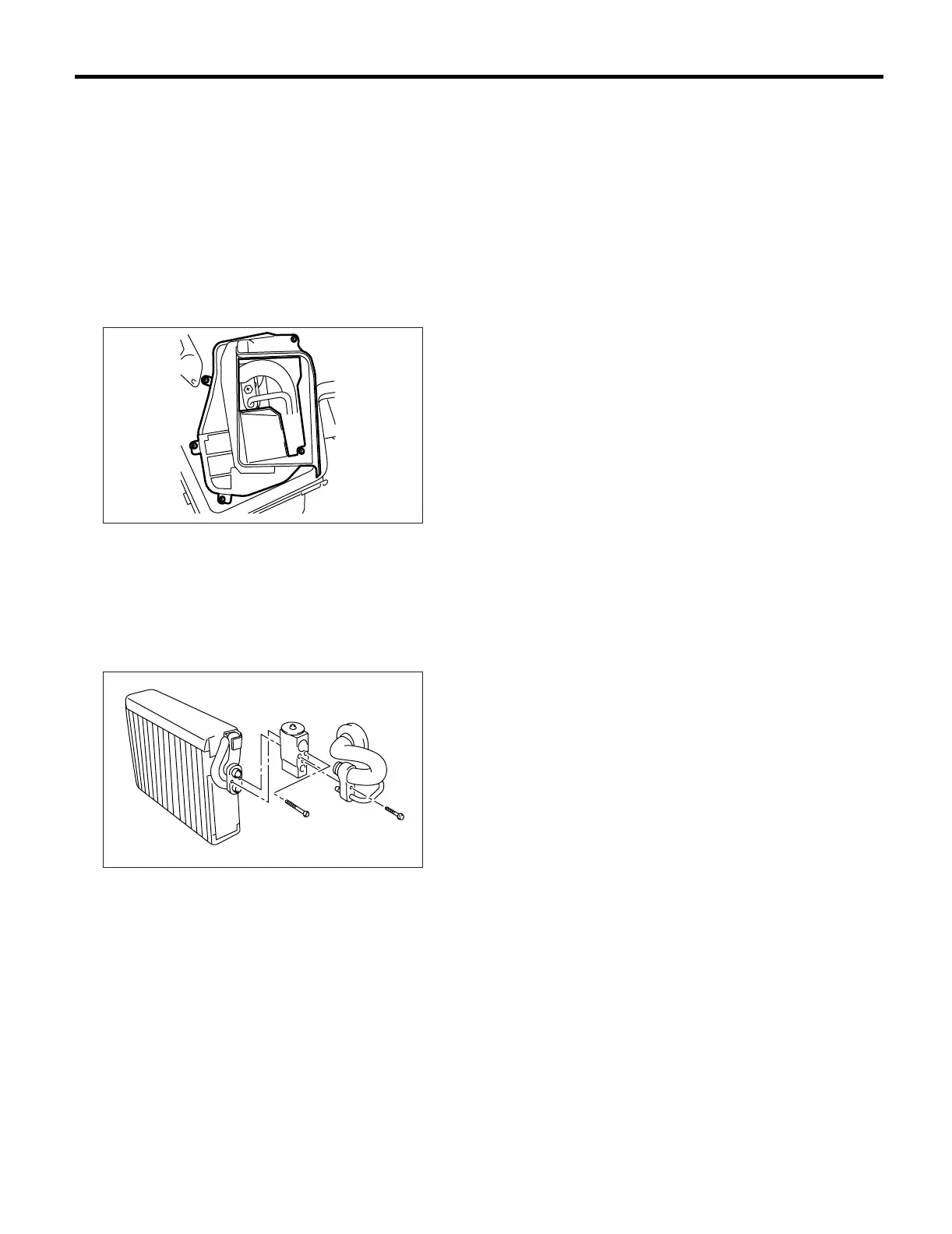

AC-00867
AC-00868
