Subaru Forester 2004 - Rear Fog Light System

LI-5
LIGHTING SYSTEM
Rear Fog Light System
4. Rear Fog Light System
A: WIRING DIAGRAM
1. REAR FOG LIGHT
<Ref. to WI-249, WIRING DIAGRAM, Rear Fog
Light System.>
B: INSPECTION
1. REAR FOG LIGHT SWITCH
1) Turn the ignition switch to ON.
2) Turn on the headlight or front fog light.
3) Push the rear fog light switch and check if the
rear fog light turns on.

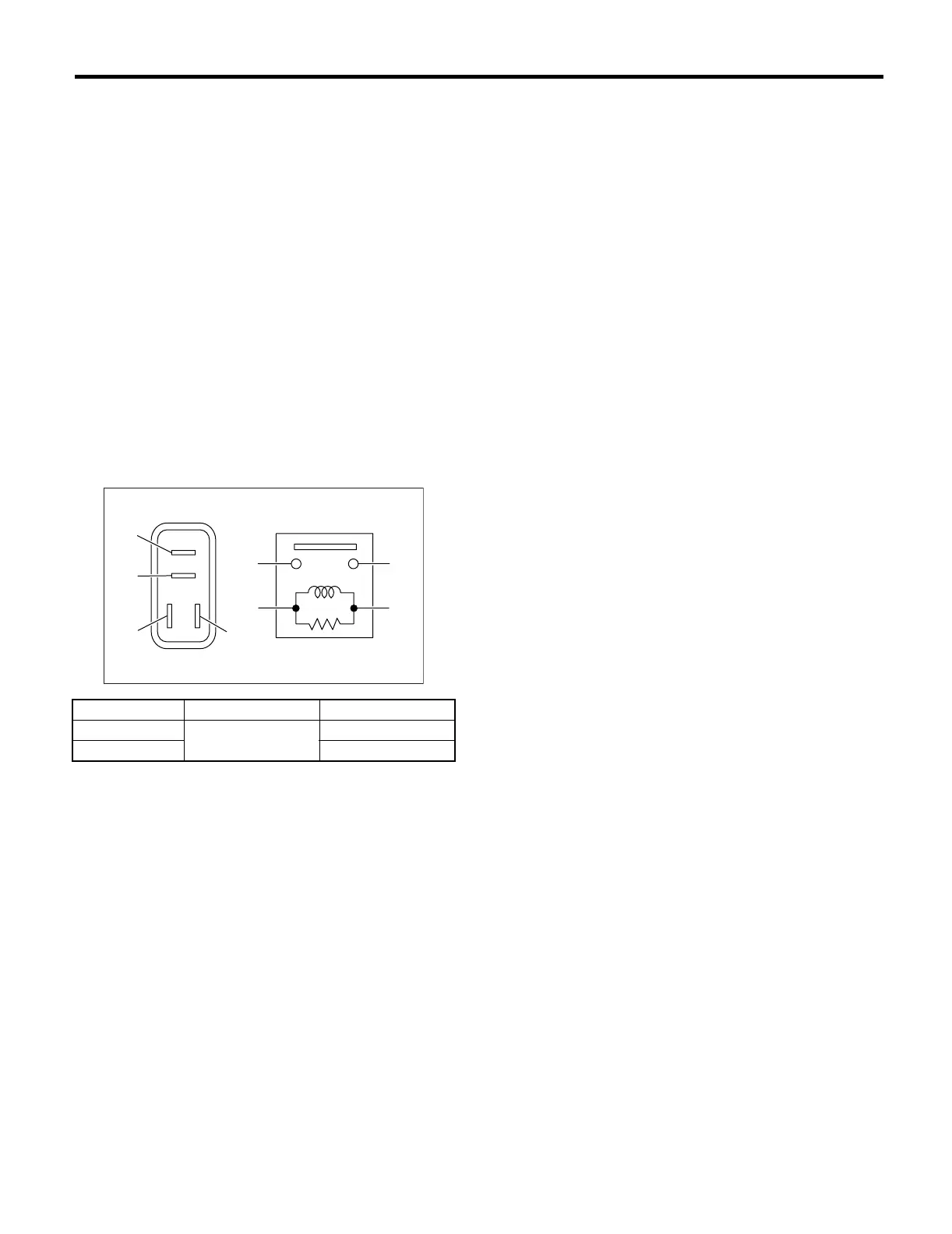

2. REAR FOG LIGHT RELAY
Measure the rear fog light relay resistance between
terminals when connecting terminal No. 4 to battery
positive terminal and terminal No. 3 to battery
ground terminal.
Current Terminal No. Standard
Flow
1 and 2
Less than 1 Ω
No flow More than 1 MΩ
LI-00001
(1)
(2)
(1)
(4)
(2)
(3)
(3)
(4)
