AB-16
AIRBAG SYSTEM
Side Airbag Module
6. Side Airbag Module
A: REMOVAL
CAUTION:
Before working on the airbag module, refer to
the “CAUTION” in General Description. <Ref. to
AB-3, CAUTION, General Description.>
NOTE:
Remove the passenger’s side by referring to driv-
er’s side.
1) Turn the ignition switch to OFF.
2) Disconnect the ground cable from battery, and
wait for at least 20 seconds before starting work.
3) Remove the front seat from the vehicle. <Ref. to
SE-6, REMOVAL, Front Seat.>
4) Remove the clip from slide rail IN (A) and re-
verse side of seat cushion assembly, and then re-
move the side airbag harness.
5) Remove the backrest cover. <Ref. to SE-6, DIS-
ASSEMBLY, Front Seat.>
6) Remove the side airbag harness from backrest
frame assembly.
7) Remove the side airbag module (A) from back-
rest frame assembly.
B: INSTALLATION
1) Ensure there are no foreign particles on side air-
bag module.
2) Install the side airbag module (A) to backrest
frame assembly.
Tightening torque:
5.9 N·m (0.59 kgf-m, 4.4 ft-lb)

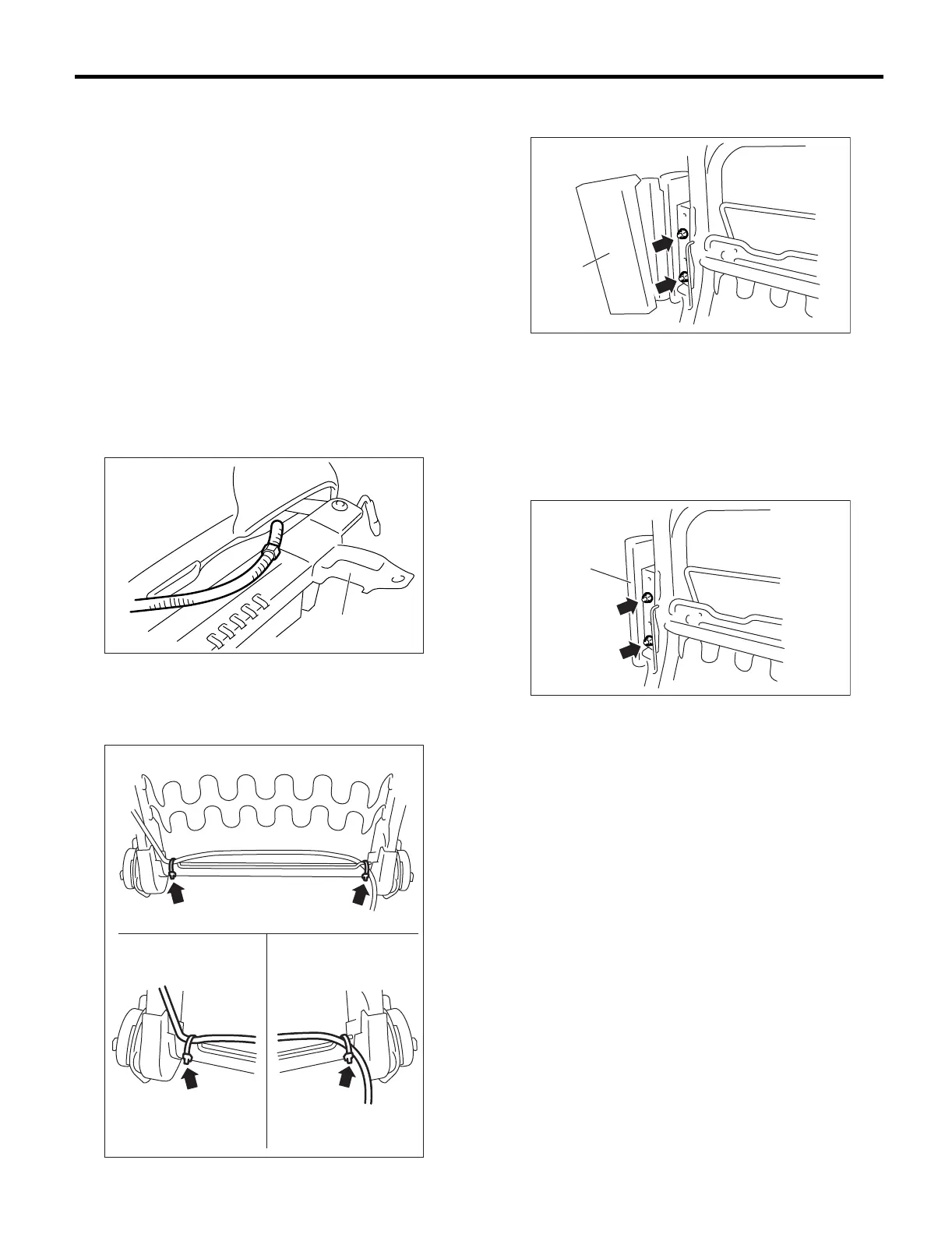

AB-00474
(A)
AB-00475
AB-00476
(A)
AB-00477
(A)
