IDI-16
INSTRUMENTATION/DRIVER INFO
Water Temperature Gauge
7. Water Temperature Gauge
A: REMOVAL
Disassemble the combination meter, and then remove
the water temperature gauge and fuel gauge assem-
bly. <Ref. to IDI-11, DISASSEMBLY, Combination
Meter Assembly.>
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION

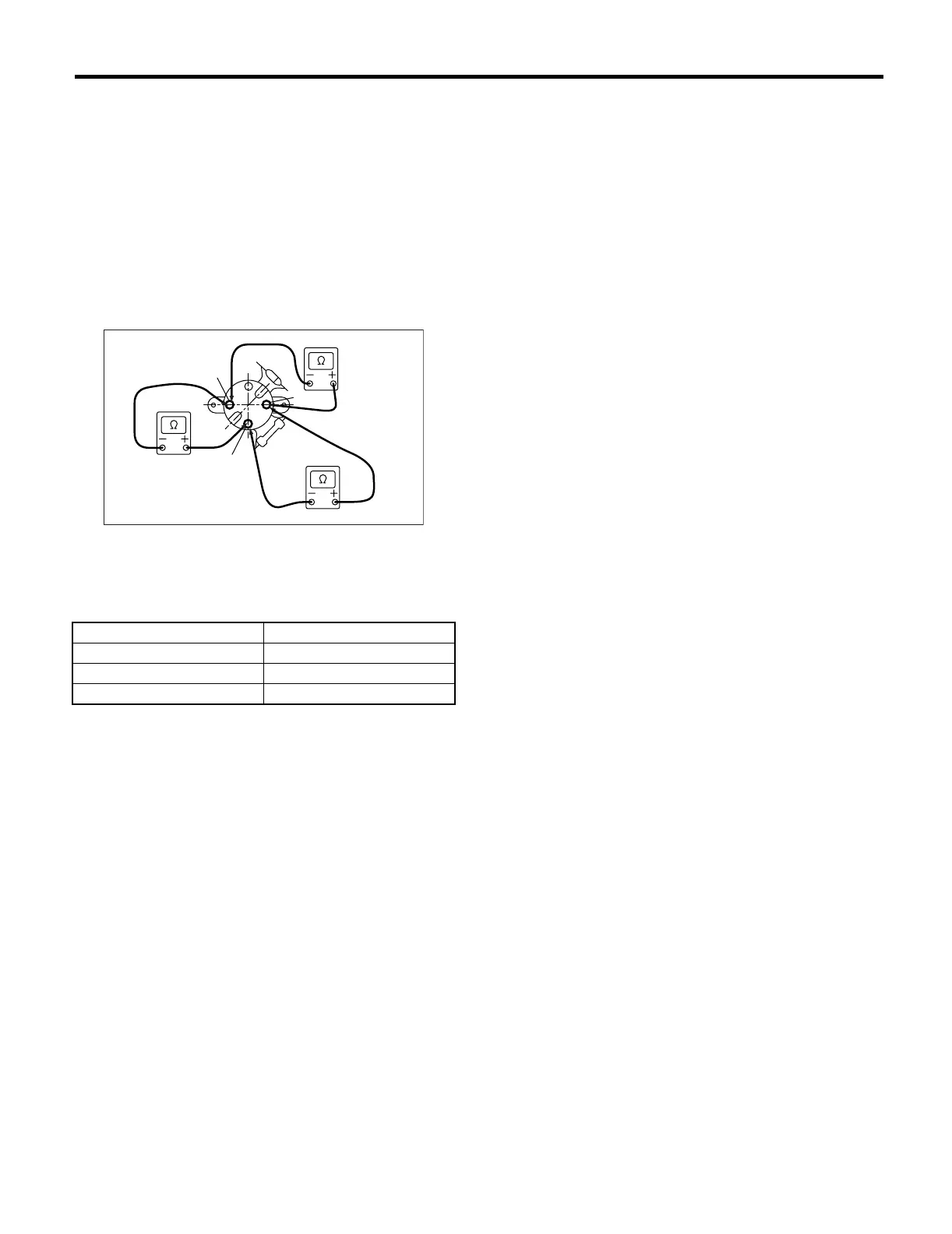

Measure the water temperature gauge resistance.
If NG, replace the water temperature gauge & fuel
gauge assembly.
If OK, replace the combination meter printed circuit.
(1) GND
(2) IGN
(3) UNIT
Terminal Resistance
Terminals IGN and GND 208±10 Ω
Terminals IGN and UNIT 56±10 Ω
Terminals UNIT and GND 264±10 Ω
IDI00023
(1)
(2)
(3)
