Subaru Forester 2004 - Electrical Components Location

AB-19
AIRBAG SYSTEM (DIAGNOSTIC)
Electrical Components Location

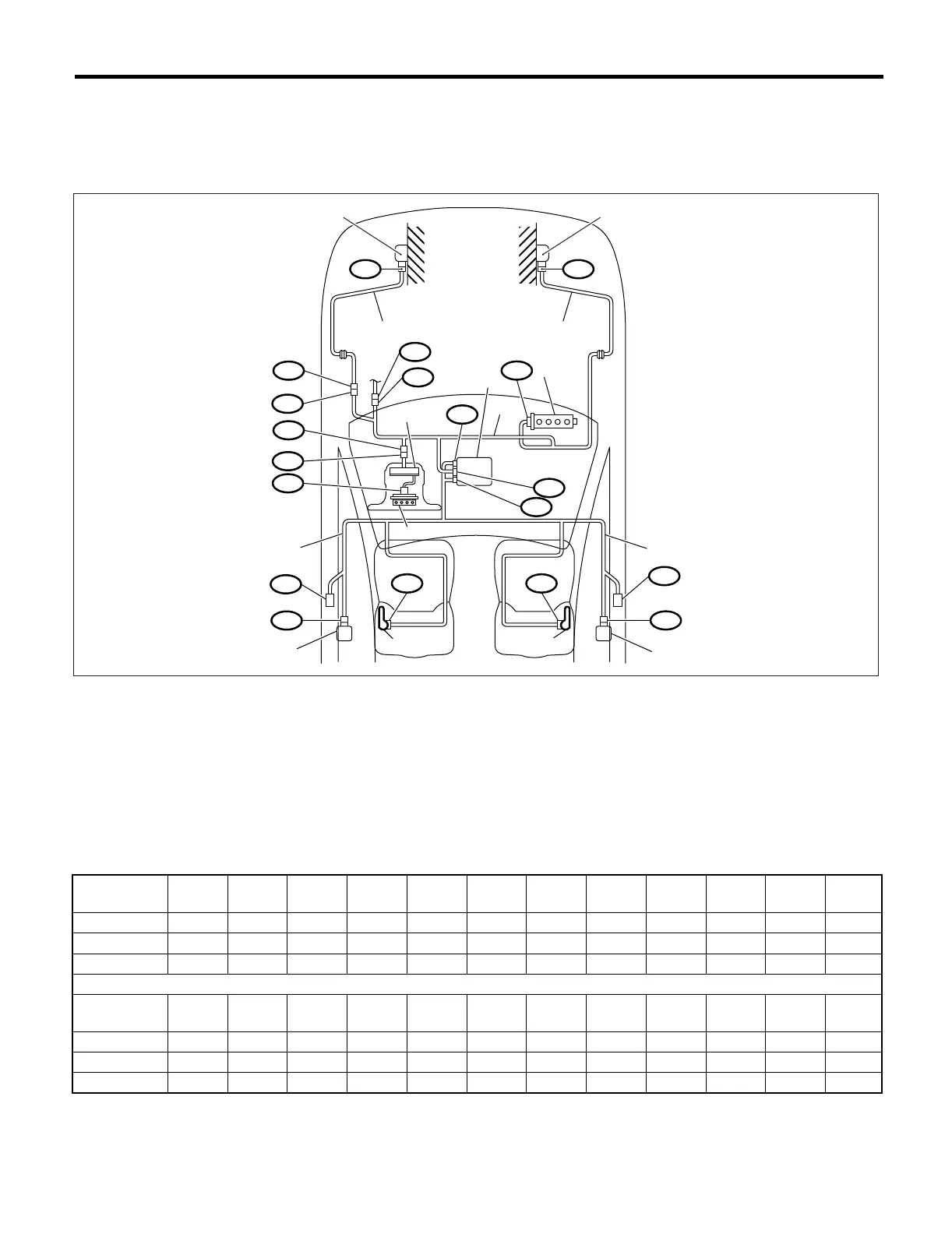

4. Electrical Components Location
A: LOCATION
1. LHD MODEL
(a) To body harness (b) To seat belt pretensioner (LH) (c) To seat belt pretensioner (RH)
(1) Front sub sensor (LH) (6) Passenger’s airbag inflator (12) Side airbag sensor (LH)
(2) Front sub sensor (RH) (7) Roll connector (13) Side airbag sensor (RH)
(3) Front sub sensor harness (LH) (8) Airbag main harness (14) Side airbag inflator (LH)
(4) Front sub sensor harness (RH) (9) Driver’s airbag inflator (15) Side airbag inflator (RH)
(5)
Airbag control module with built-in
safety and electric sensor
(10) Side airbag harness (LH)
(11) Side airbag harness (RH)
Connector
No.
(AB1) (AB2) (AB3) (AB4) (AB7) (AB8) (AB9) (AB10) (AB11) (AB12) (AB13) (AB14)
Pole 622841212242422
Color Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow
Male/Female Male Female Female Female Female Female Female Female Female Female Female Male
Connector
No.
(AB15) (AB18) (AB19) (AB20) (AB21) (AB26)
Pole 222222
Color Yellow Yellow Yellow Yellow Yellow Yellow
Male/Female Female Female Female Female Female Male
AB-00737
(1)
(2)
(3)
(7)
(a)
(9)
(14)
(15)
(13)
(11)
(c)
(6)
(5)
(8)
(10)
(b)
(12)
(4)
AB18
B31
AB1
AB12
AB20
AB19
AB10
AB3
AB8
AB15
AB7
AB9
AB4
AB26
AB2
AB21
AB14
AB13
AB11
