GW-21
GLASS/WINDOW/MIRROR
Front Regulator and Motor Assembly
10.Front Regulator and Motor
Assembly
A: REMOVAL
1) Remove the door glass. <Ref. to GW-17, RE-
MOVAL, Front Door Glass.>
2) Loosen the nuts to remove rear sash.
3) Disconnect the motor connector.

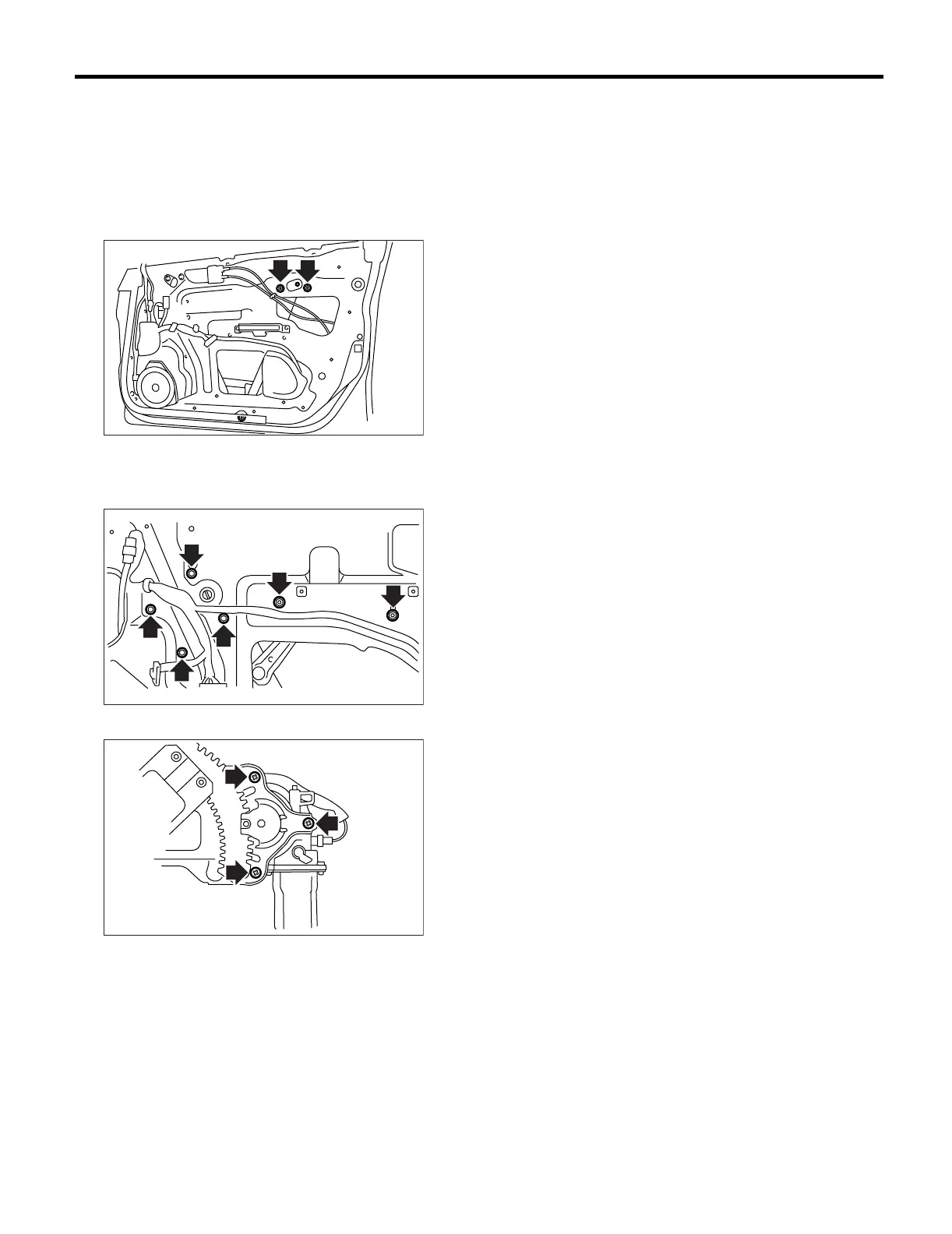

4) Loosen the four bolts and two nuts to remove
regulator assembly.
5) Loosen the screw to remove motor assembly.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Adjust the front door glass. <Ref. to GW-18, AD-
JUSTMENT, Front Door Glass.>
Tightening torque:
Refer to COMPONENT in General Descrip-
tion. <Ref. to GW-3, FRONT DOOR GLASS,
COMPONENT, General Description.>
C: INSPECTION
1) Make sure that the power window motor rotates
properly when battery voltage is applied to the ter-
minals of motor connector.
2) Change polarity of battery connections to termi-
nals to ensure that the motor rotates in reverse di-
rection.
