EB-14
EXTERIOR BODY PANEL
Rear Door Panel

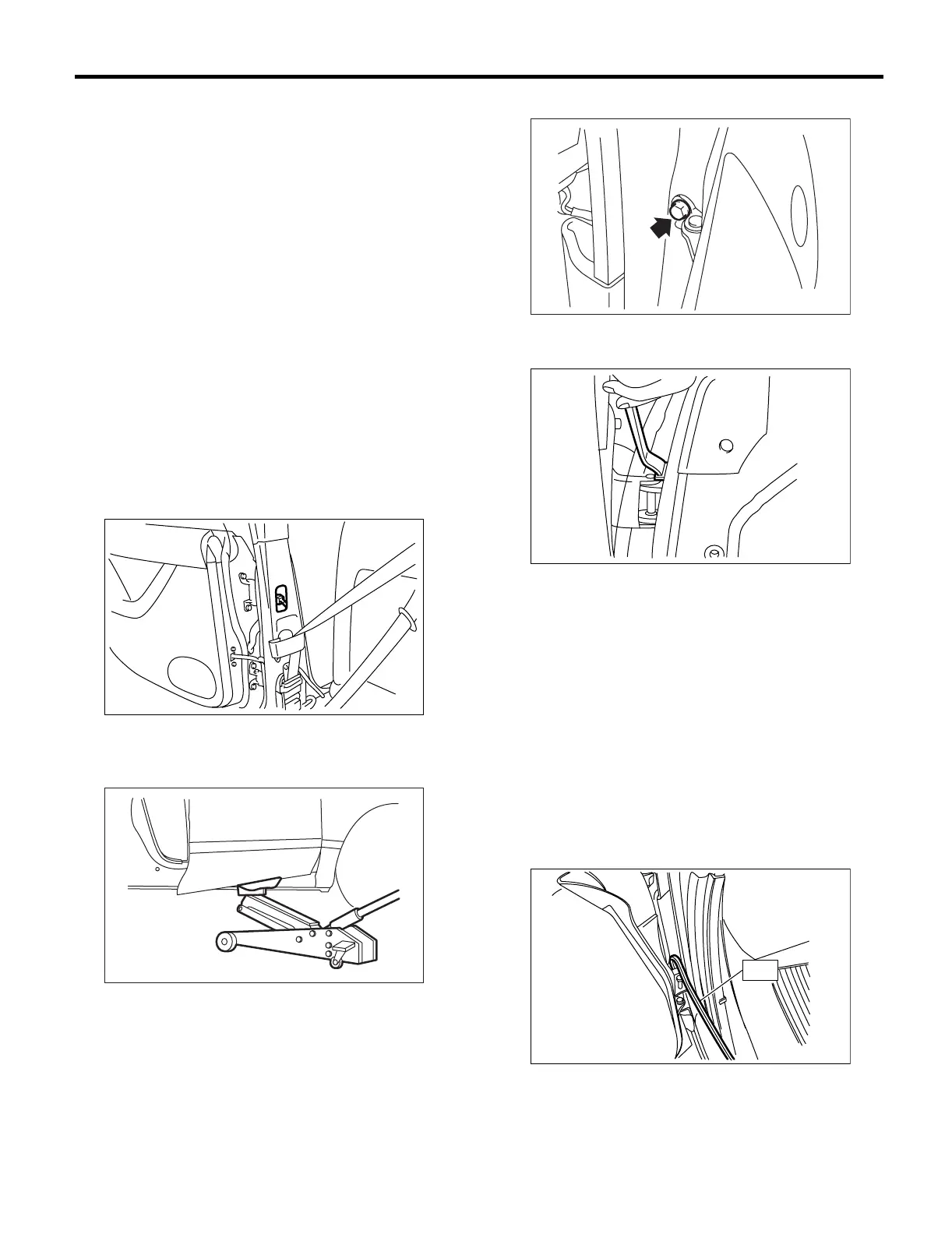

6. Rear Door Panel
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the rear door trim. <Ref. to EI-36, RE-
MOVAL, Rear Door Trim.>
3) Remove the rear sealing cover. <Ref. to EB-16,
REMOVAL, Rear Sealing Cover.>
4) Remove the rear door glass. <Ref. to GW-22,
REMOVAL, Rear Door Glass.>
5) Remove the rear door regulator and motor as-
sembly. <Ref. to GW-24, REMOVAL, Rear Regula-
tor and Motor Assembly.>
6) Remove the rear door latch assembly. <Ref. to
SL-28, REMOVAL, Rear Door Latch Assembly.>
7) Remove the rear outer handle. <Ref. to SL-27,
REMOVAL, Rear Outer Handle.>
8) Remove the center pillar lower trim. <Ref. to EI-
44, REMOVAL, Lower Inner Trim.>
9) Remove the seat belt bracket and blind plug.
Disconnect the connector of door harness and re-
move the door hinge nut.
10) Put a wooden block on the jack and place the
jack under the door. Support the door with the jack
to protect it.
NOTE:
When supporting the door with a jack, be careful
not to deform the door hinges while working.
11) Remove the checker bolts.
12) Remove the door-side bolts for upper and low-
er hinges to remove the rear door panel.
13) Using the ST, remove the body-side bolts for
upper and lower hinges, and remove door hinges.
ST 925610000 WRENCH
B: INSTALLATION
1) Install in the reverse order of removal.
2) Apply grease to the sliding area of door hinges.
3) Refer to COMPONENT in General Description for
tightening torque. <Ref. to EB-6, REAR DOOR
PANEL, COMPONENT, General Description.>
C: ADJUSTMENT
1) Using the ST, loosen the body-side bolts of up-
per and lower hinges to align the position of rear
door panel longitudinally and vertically.
ST 925610000 WRENCH
EB-00019
EB-00013
EB-00014
EB-00015
EB-00016
ST
