Subaru Forester 2004 - General Description

SL-2
SECURITY AND LOCK
General Description
1. General Description
A: COMPONENT

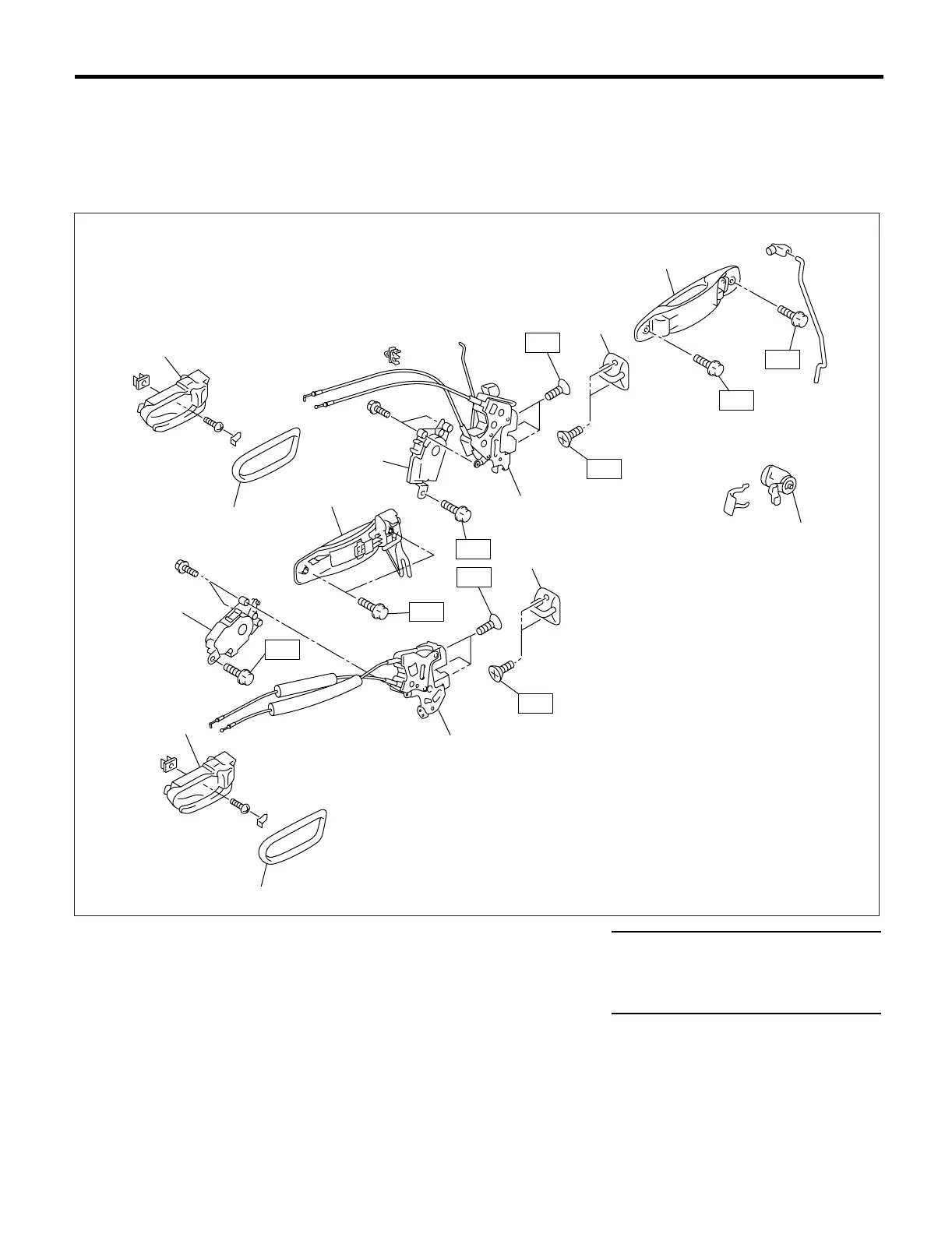

1. DOOR LOCK ASSEMBLY
Without double lock:
(1) Inner remote ASSY (5) Striker Tightening torque: N ⋅ m (kgf-m, ft-lb)
(2) Inner remote cover (6) Door outer handle T1: 6.4 (0.65, 4.7)
(3) Auto-door lock actuator (7) Key cylinder T2: 7.4 (0.75, 5.5)
(4) Door latch T3: 17.6 (1.8, 13.0)
SL-00288
T1
T1
T3
T3
T2
T2
(1)
(2)
(3)
(1)
(2)
(3)
(4)
(4)
(5)
(5)
(6)
(6)
(7)
T2
T2
T2
