Subaru Forester 2004 - Blower Resistor (Manual A;C Model)

AC-33
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
Blower Resistor (Manual A/C Model)
8. Blower Resistor (Manual A/C
Model)
A: REMOVAL
1) Remove the glove box. <Ref. to EI-37, REMOV-
AL, Glove Box.>
2) Disconnect the blower resistor connector.
3) Remove the two screws to remove blower resis-
tor.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the blower resistor resistance.
If NG, replace the blower resistor.
Terminal No. Standard
3 and 6 Approx. 0.4 Ω
3 and 4 Approx. 1.1 Ω
2 and 1 Approx. 2.6 Ω

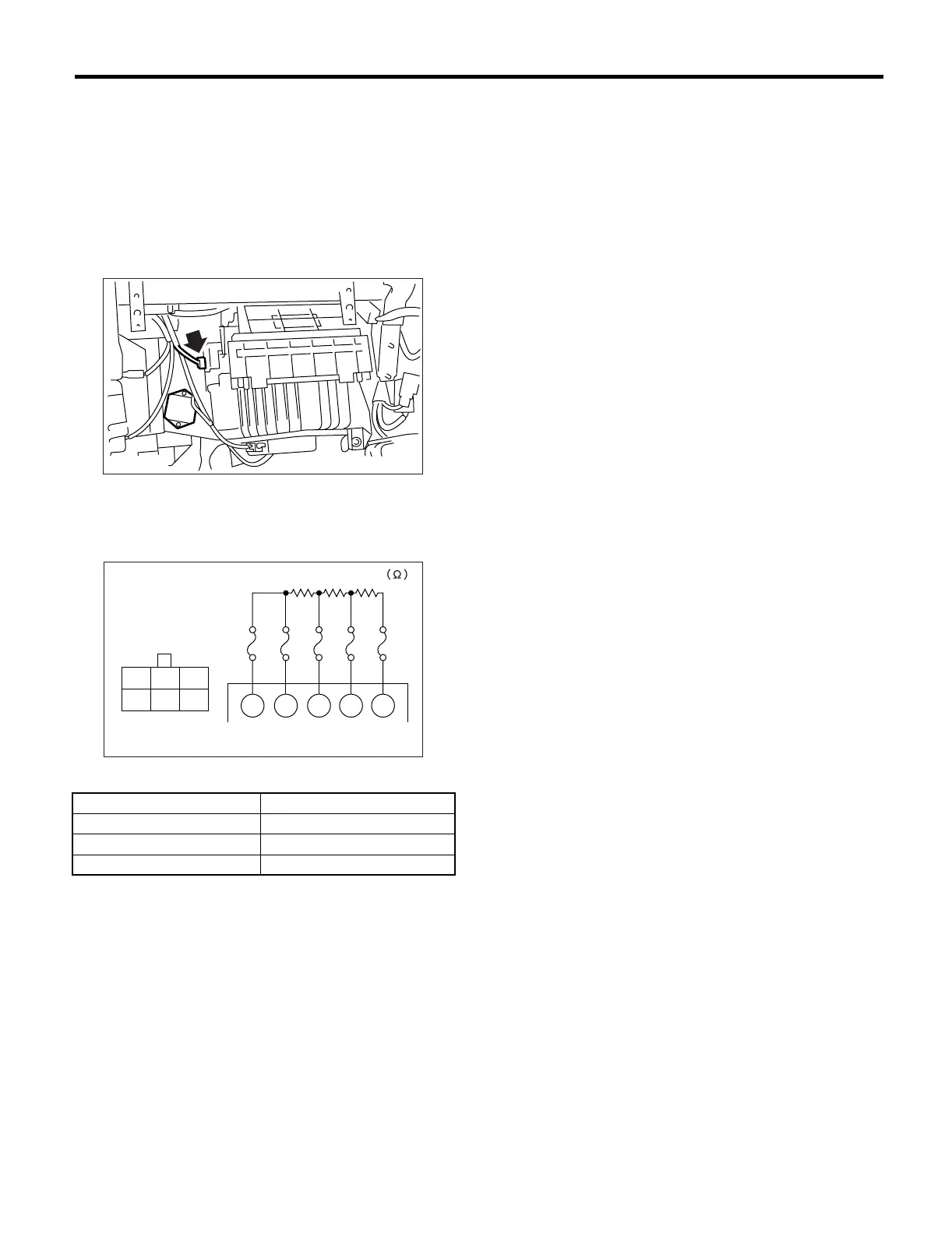

AC-00221
AC-00245
MO H MH ML L
2
3
6
41
0.4 0.7 1.5
123
46
