Subaru Forester 2004 - Stop Light System

LI-8
LIGHTING SYSTEM
Stop Light System
7. Stop Light System
A: WIRING DIAGRAM
1. STOP LIGHT
<Ref. to WI-228, WIRING DIAGRAM, Stop Light
System.>
B: INSPECTION

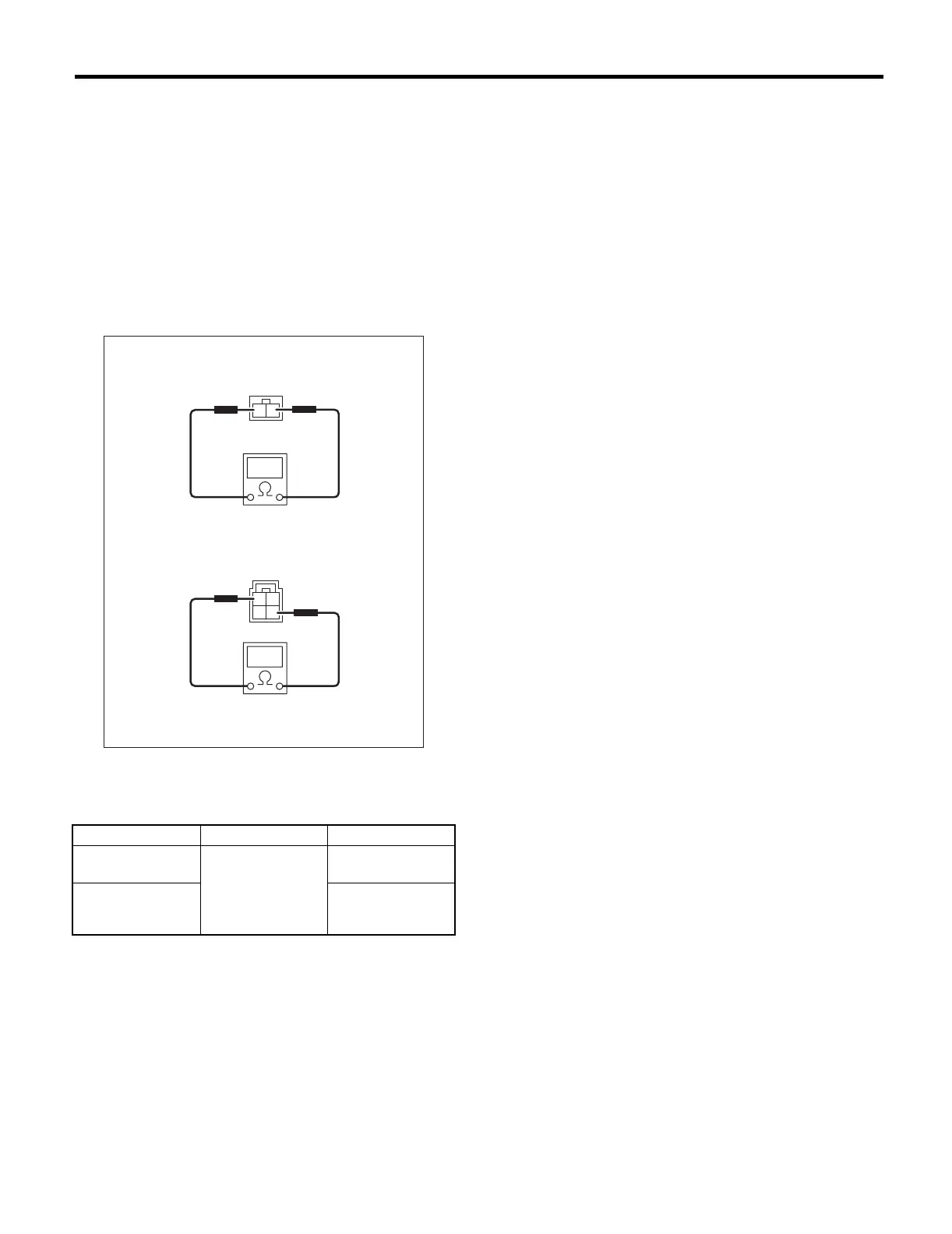

1. STOP LIGHT SWITCH
Measure the resistance between stop light switch
terminals.
(A) Without cruise control
(B) With cruise control
Switch position Terminal No. Standard
When brake pedal
is depressed
1 and 2:
Without cruise
control
2 and 3:
With cruise control
Less than 1 Ω
When brake pedal
is released
More than 1 MΩ
34
12
12
LI-00064
(A)
(B)
