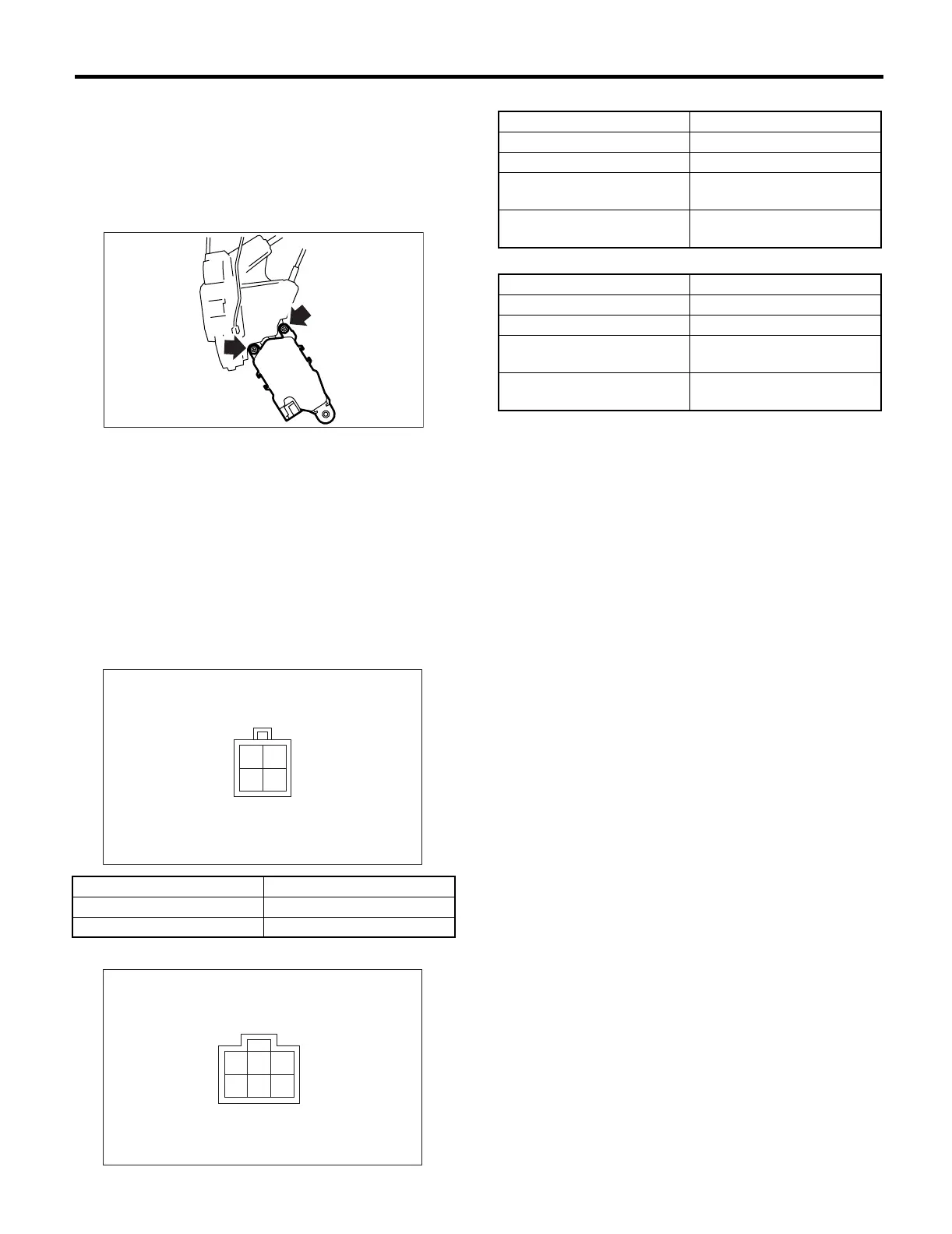

Subaru Forester 2004 - Front Door Lock Actuator

SL-25
SECURITY AND LOCK
Front Door Lock Actuator
7. Front Door Lock Actuator
A: REMOVAL
1) Remove the front door latch assembly. <Ref. to
SL-24, REMOVAL, Front Door Latch Assembly.>
2) Loosen the two screws to remove front door lock
actuator.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure the lock works properly after installation.
C: INSPECTION
1) Disconnect the door lock actuator harness con-
nector.
2) Connect the battery to door lock actuator termi-
nals.
If NG, replace the door lock actuator.
1. Without Double Lock
2. With double lock:
DOOR ACTUATOR RH:
DOOR ACTUATOR LH:
Terminal No. Actuator operation
No. 2 (+) and No. 4 (–) Unlocked → Locked
No. 4 (+) and No. 2 (–) Locked → Unlocked
SL-00011
1
2
3
4
SL-00058
1
2
3
4
5
6
SL-00059
Terminal No. Actuator operation
No. 1 (+) and No. 4 (–) Unlocked → Locked
No. 4 (+) and No. 1 (–) Locked → Unlocked
No. 6 (+) and No. 3 (–) Double lock released →
Double lock set
No. 3 (+) and No. 6 (–) Double lock set → Double
lock released
Terminal No. Actuator operation
No. 6 (+) and No. 3 (–) Unlocked → Locked
No. 3 (+) and No. 6 (–) Locked → Unlocked
No. 1 (+) and No. 4 (–) Double lock released →
Double lock set
No. 4 (+) and No. 1 (–) Double lock set → Double
lock released
