SL-30
SECURITY AND LOCK
Rear Gate Outer Handle
12.Rear Gate Outer Handle
A: REMOVAL
1) Remove the rear gate trim. <Ref. to EI-48, RE-
MOVAL, Rear Gate Trim.>
2) Remove the rear wiper motor assembly.
<Ref. to WW-17, REMOVAL, Rear Wiper Motor.>
3) Remove the rear finisher.

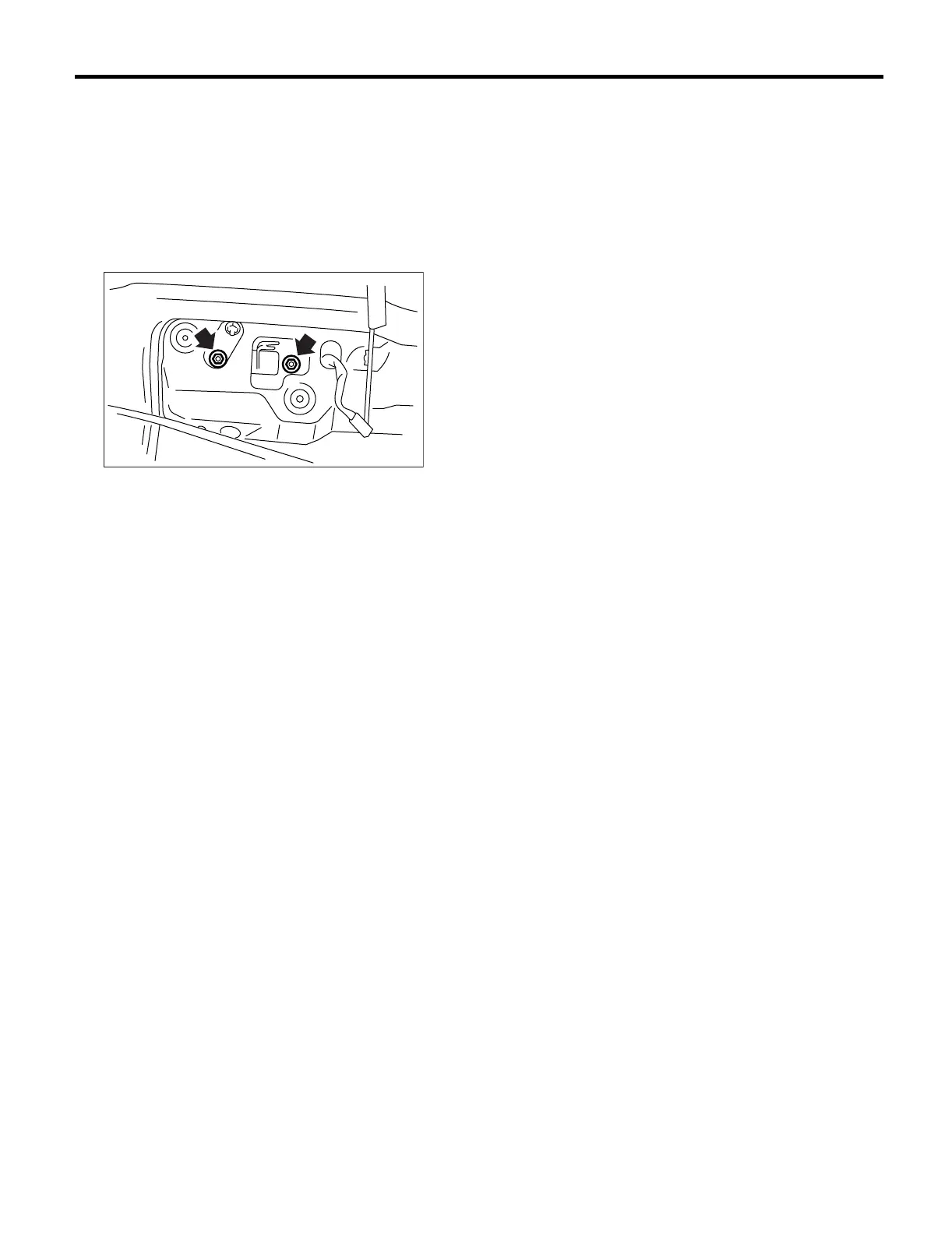

4) Remove the cable, and then remove two nuts.
5) Remove the rear gate outer handle.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure the outer handle works properly after in-
stallation.
C: INSPECTION
1) Inspect the cable for deformation.
2) Make sure the lever and cable move smoothly.
SL-00016
