EI-52
EXTERIOR/INTERIOR TRIM
Heat Shield Cover
26.Heat Shield Cover
A: REMOVAL

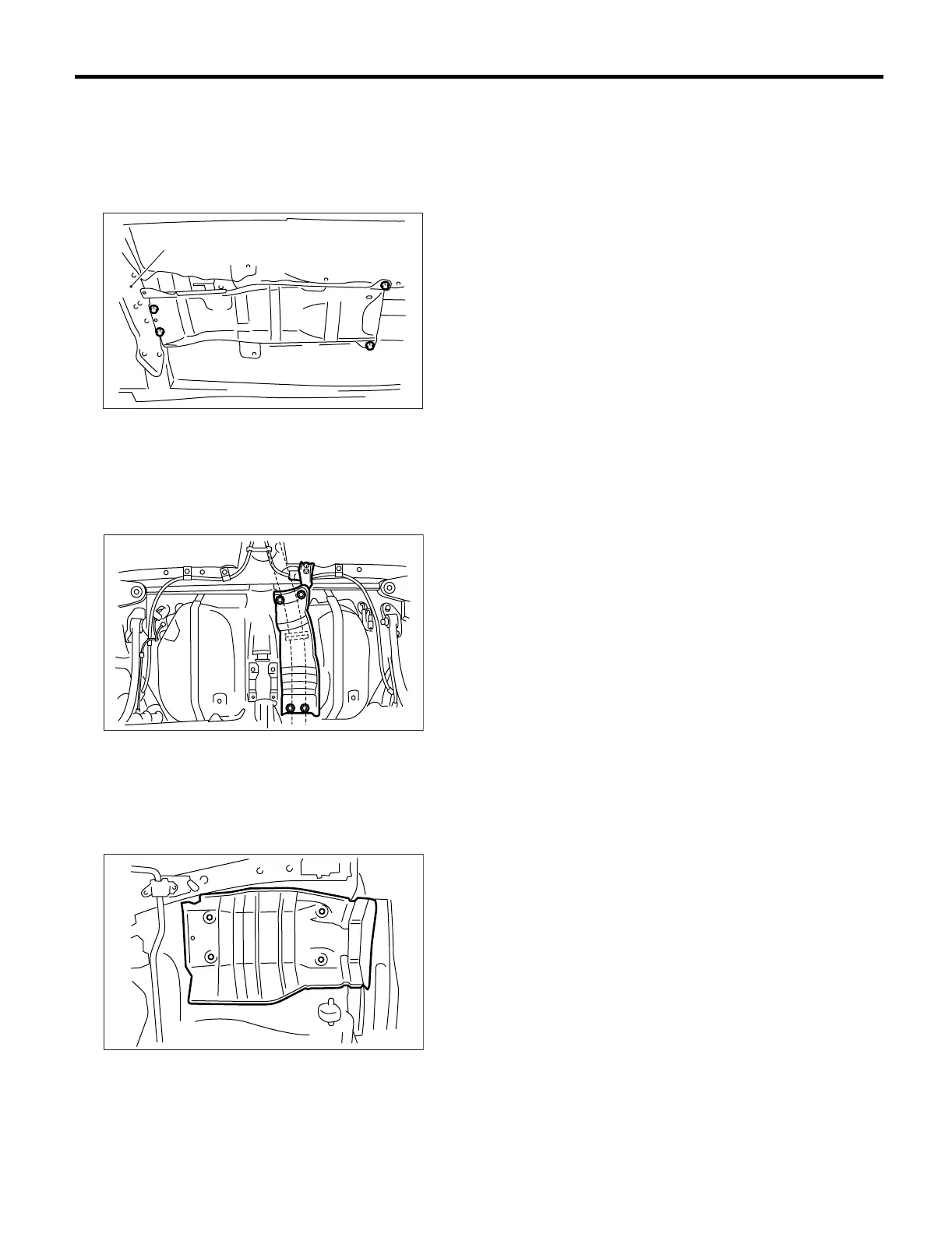

1. FRONT HEAT SHIELD COVER
Loosen the four bolts to remove front heat shield cover.
2. CENTER HEAT SHIELD COVER
Loosen the four bolts to remove center heat shield
cover.
3. REAR HEAT SHIELD COVER
1) Remove the muffler. <Ref. to EX(H4SO)-13, RE-
MOVAL, Muffler.>
2) Loosen the four bolts to remove rear heat shield
cover.
B: INSTALLATION
Install in the reverse order of removal.
(A) Transmission mount
DI-00211
(A)
EI-00107
EI-00108
To Next Page
